Modular Organizer Insert for Pictures Board Game, plus Expansions

for Pictures (2019) Layer by Layer

fuchsr

Inserts Free

View on Printables 1 32 206 Added Dec 31, 24 Support fuchsr by Liking and Boosting their model.

Plan Your Print

✓ Covers Pictures: USA, Pictures: Orange, Pictures: Photo cards Expansions this print stores alongside the base game

✓ Fits sleeved cards

✓ Fits premium sleeves Thick 100+ micron sleeves, not just standard ones

✓ Keep all or part of original insert Uses some or all of the publisher's original insert instead of replacing it

Designer's Description

An organizer for Pictures that can be configured in many different ways, to accommodate your sets of bought or home-grown materials. In the photos you can see @theRabbbit_338003's custom expansion . We also use a set comprised of a dollar bill and two of each of the common US coins. Each set of materials is stored in its own box, which makes it easy to pass them on to the next player at the end of a round.

Important cavea t: I actually don't own any of the official expansions as I think they are obscenely expensive for what they include. From pictures, I think most parts of Orange and USA should fit, although some larger parts such as frames may need to sit on top of the boxes.

You can use the game box with the original cardboard insert, or without it for more space. If you leave the original cardboard insert in place, remove the small side walls (see photo) by simply tearing them off.

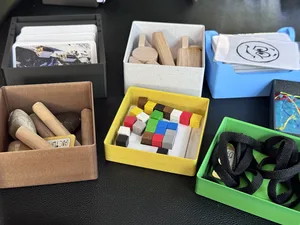

In the center of the organizer are the “Elements Boxes”. They come in two shapes, full height or half height. Two half-height ones stack on top of each.

The icon cards require their own box, due to their size.

For the photo cards, I made two versions, large and small. Print one or more dividers if you want cards from different expansions be kept separate.

Cards can be sleeved or unsleeved. I use green Mayday Games premium sleeves .

If you remove the original cardboard insert, you may use six of the large Extra Boxes around the perimeter with the small photo card holder. If you use the large photo card holder, use two large Extra Boxes and 2 small Extra Boxes.

See photos for possible configurations.

I simply put the instructions and the scoring sheet pad on top of the boxes. “Pictures” plates go with their respective elements. The cloth bag with coordinate token can go into the large photo card holder or also on top of the boxes. Large parts from expansions may also go on top.

Print Instructions

I printed everything with a 0.4 mm nozzle, 0.2mm layer height, 15% lightning infill (with the exception of the icons box, for which I used 40% cubic). Should print fine with a 0.6 mm nozzle.
