Qwirkle tiles

for Qwirkle (2006) Lift the Lid

Geoff_B_UK

Cards & Tiles Free

View on Printables 4 23 194 Added Nov 11, 24 Support Geoff_B_UK by Liking and Boosting their model.

Remix of View the original model (Printables)

What changed: Complete redesign to create a single set of 6-off of 3x each of the different shapes, where the pieces are a consolidation of the base and the shape and the individual shape is joined on as a colour change at a height of 6.15mm instead of a separate piece that has to be ‘pressed’ into a base avoiding any issues with accurate print tolerances.

Designer's Description

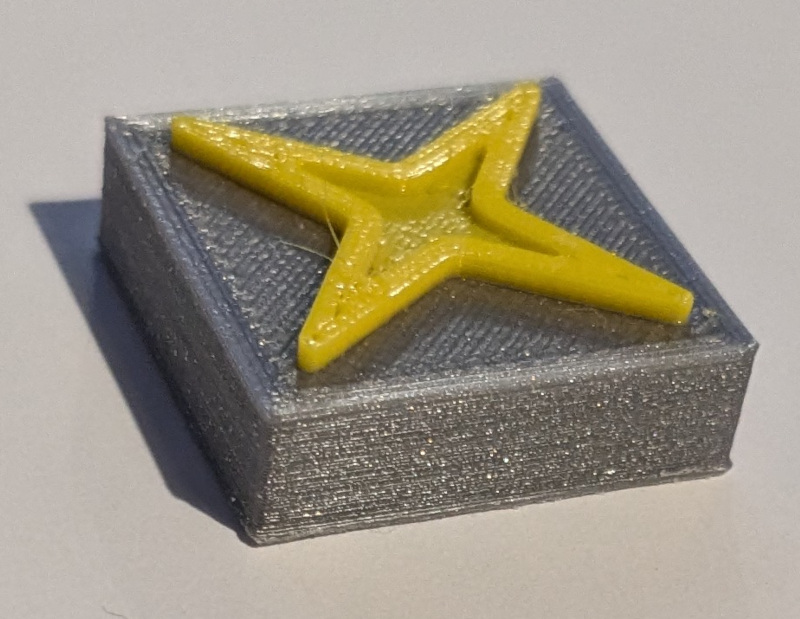

A single main file for a set of Qwirkle tile pieces - 18 tiles - that is printed 6 times with the same base filament colour but where each print has a different colour added as a filament colour change (M600) at a height of 6.15mm.

3 additional files are provided of 2-tile ‘pairs’ if spare tiles ever need to be printed.

All the components use 1.75mm PLA and a layer height of 0.15mm with print details for each component produced on an i3 Mk3 shown in the table below.
component file name/description brim (mm) support filament
length (m) print time
(i3 Mk3)
shapes_allx3_2block_piece01.stl: the main set of all the pieces for an individual colour. Printed 6 times with different colours started at a height of 6.15mm 3mm with 0.2mm separation none 10.43 3h 22m
shape1_2block_piece01.stl: a pair of tiles with two ‘top shapes’ only provided if spares ever needed to be printed. 3mm with 0.2mm separation none 1.18 24m
shape2_2block_piece01.stl: a pair of tiles with two ‘top shapes’ only provided if spares ever needed to be printed. 3mm with 0.2mm separation none 1.19 24m
shape3_2block_piece01.stl: a pair of tiles with two ‘top shapes’ only provided if spares ever needed to be printed. 3mm with 0.2mm separation none 1.18 24m

qwirkle
