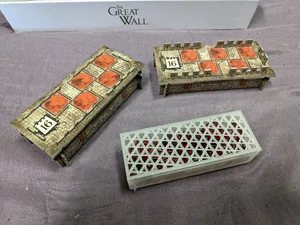

The Great Wall + Expansions INSERT (MEEPLE)

Hi everyone, i created Insert for Insert for The Great Wall + Black Powder + Ancient Beasts + Stretch Goals - because i could not find one that i would like.

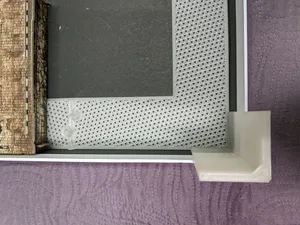

I didn't want to disassemble the The pieces every time, so i made spacer for the expansion box

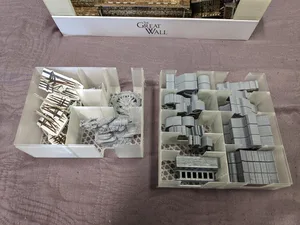

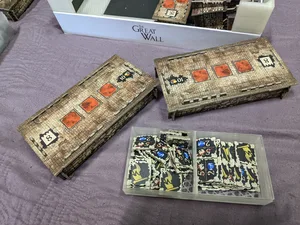

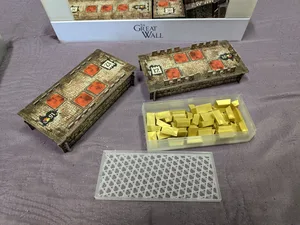

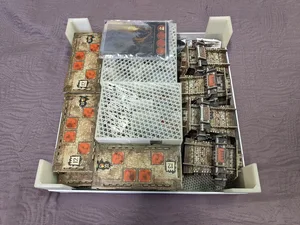

I glued all the pieces except the top of the wall - this way i was able to store boxes inside

------------------

Print:

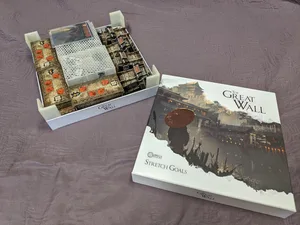

Expansion Box

The Great Wall Box Extender v10 - 4x

big storage V2 or big storage V1 + LID - together 3x

medium storage V2 or medium storage V1 + LID - together 3x

small storage + LID - 3x

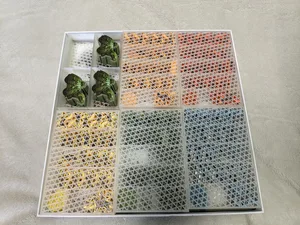

Main Box

cards small 1x2 (no lid) - 2x

cards large (no lid) -3x

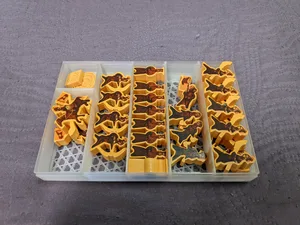

meeple storage + LID - 5x

rest is 1x

------------------

Tips:

-Main box: the cards will need some spacer between them

-No supports needed for printing

------------------

I Am using thin sleaves (65*90mm)

I have used: The-Boardgame-Insert-Toolkit

I have used: Fusions360 for personal use

------------------

My print setup in Prusa Slicer
Nozzle - 6mm

Layers and perimeters:
Solid Layers - Top = 0; Bottom = 0
Perimeters - 3
Seam position - Aligned
Perimeter generator - Arachne

Infill
Fill density - 40% or 30%
Fill pattern - Cubic
