Marchas "Heat Pedal to the metal" Nuevo modelo

for Heat: Pedal to the Metal (2022) Layer by Layer

JesRom

Free

View on MakerWorld 54 158 Added Dec 18, 25 | Updated Aug 6, 26 Support JesRom by Liking and Boosting their model.

Plan Your Print 2 makers

About 28 g of filament From the designer's print profile

Print Profile (2) 0.12mm layer, 2 walls, 15% infill 1h 39m 28 g PLA

0.12mm layer, 2 walls, 15% infill

2 plates 1h 39m 28 g PLA

P2S, P1P, X1E, A1, A1 mini, H2D Pro, X1, H2D, H2S, P1S, X1 Carbon, H2C, X2D, A2L

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1

1h 13m 20 g PLA · 2 g PLA · 3 g PLA · 3 g PLA · 12 g

Plate 2

26m 8 g PLA · 8 g

High-Visibility Text 0.2mm nozzle

2 plates 4h 15m 26 g PLA

A1, P1S, P2S, A1 mini, H2D, H2C, X1E, X1, X1 Carbon, H2S, H2D Pro, P1P, X2D, A2L

I have uploaded this print profile as an essential legibility improvement. I've modified the color setup so that the small numbers inside the blue icons (like the "1" and "3" at the base) print in black instead of blue. This provides perfect contrast against the background, making them readable.

Plate Details (2)

0.2 mm nozzle, all plates

Plate 1 · Main Plate-High Contrast Colors-AMS Optimized

3h 3m 18 g PLA · 2 g PLA · 2 g PLA · 3 g PLA · 11 g

Plate 2

1h 12m 8 g PLA · 8 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

I've created this new version of my model:

https://makerworld.com/es/models/931324-heat-pedal-to-the-metal-gearbox#profileId-895294

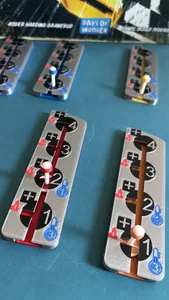

I've already used this model a lot and I've seen that over time it tends to open up. So I've redesigned so that the closure is definitive and the pawn is inserted through a slot made at the end of the model.

It has a stop so that once the pawn is inserted it does not come out of the slot:

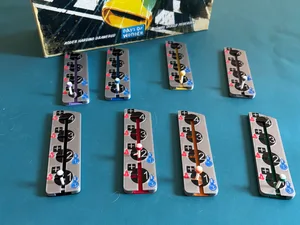

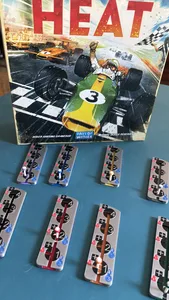

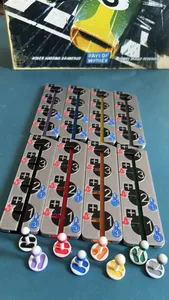

The design is narrower than the previous model and I have decided to print the base in each of the colors of the different players:

I hope you like the improvements.
Boost Me If you like the design a support is appreciated.

Translated from Spanish - show original

He creado esta nueva versión de mi modelo:

https://makerworld.com/es/models/931324-heat-pedal-to-the-metal-gearbox#profileId-895294

Ya he usado mucho este modelo y he visto que con el tiempo tiende a abrirse. Por lo que he rediseñado para que el cierre sea definitivo y el peón se introduzca por una ranura hecha al final del modelo.

Tiene un tope para que una vez introducido el peón no se salga por la ranura:

El diseño es más estrecho que el modelo anterior y he decidido imprimir la base en cada uno de los colores de los distintos jugadores:

Espero que os gusten las mejoras.
Boost Me Si te gusta el diseño se agradece un apoyo.
