Kanban EV - Removable inserts

for Kanban EV (2020) Layer by Layer

jgrg1

Inserts Free

View on Thingiverse 30 675 2,113 Added Nov 18, 21 Support jgrg1 by Liking and Boosting their model.

Remix View the original model

Plan Your Print

✓ Fits sleeved cards

Designer's Description

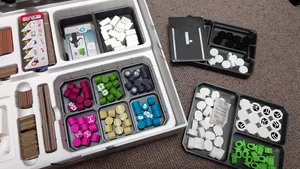

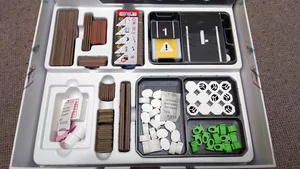

Remix of Fabmaszter's removable inserts. I basically copied the dimensions of his insert.

There are dedicated slots for sleeved cards (I use Mayday standards - premium thickness sleeves will NOT fit). I also created a dedicated tray for the solo mode.

I didn't bother with the small tray, as I just put the game pieces in the small cards slot of the vacuum formed insert.

UPDATE: 06/12/2021 - Fixed incorrect solo.tray and restored the missing insert for the poker size cards. This will only support standard thickness sleeves.

UPDATE: 20/04/2023 - Having just attempted to print the BookTokenTray and CardsTray, I found I had print issues with the severe overhang on the rounded base. I've remodelled the trays to eliminate this, and added some guides for the cards in the CardsTray to help stop them from moving about quite so much. The updated files are BookTokenTray_v3.stl and CardsTray_v3.stl respectively.
