Sierra West - Boardgame Insert (removable insert for the existing insert)

Insert for the boardgame Sierra West. These inserts fit into the existing vacuum formed insert.

NOTE: Please measure your vaccuum formed insert BEFORE printing. The overall dimensions (L x W x H) of the printed inserts are as follows:

Small Insert: 81mm x 51mm x 34mm
Medium Insert: 46mm x 160mm x 54mm
Large Insert: 266mm x 98mm x 54mm

Each insert tapers inwards towards the bottom by 5mm.

So long as the spaces you measure in your vacuum formed insert are greater than the above measurements (by a couple of mm length/width), you should be ok.

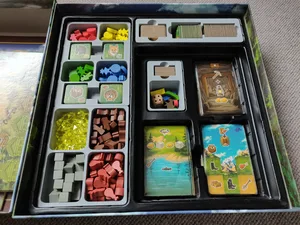

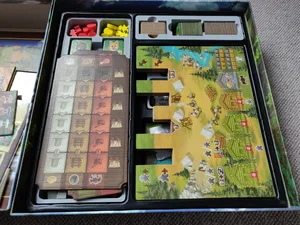

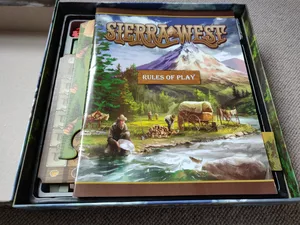

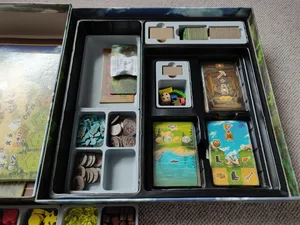

Note that the large insert comes in four pieces that simply stack on top of one another (denoted by Upper and Lower in the file names). I've left enough room in the top of the large insert space to allow the 3 large cardboard tiles to sit on top and be flush (see the pictures).
