Guess Who? (Wie is Het?) - Replacement board

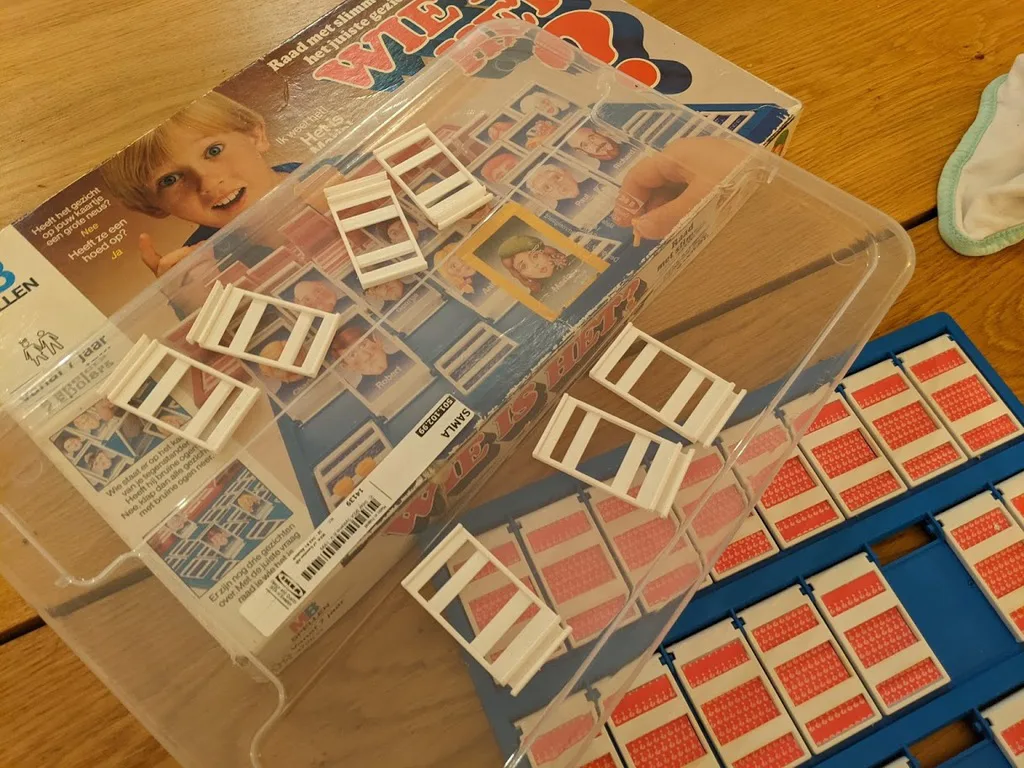

Replacement tile for 1980s european version of Guess Who? ( Wie Is Het? in dutch). Two part design for easy and flat printing inspred by Adrian Herbez @myMiniFactory

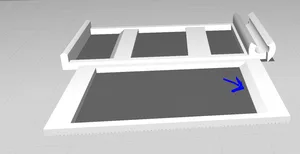

I made a few changes to the original design to allow easier printing and a tougher construction. The circular ouside of the hinge is now a 45 degree bevel, and the two clips are replaced by a wide clip bar.

Print in two separate parts, and glue together.

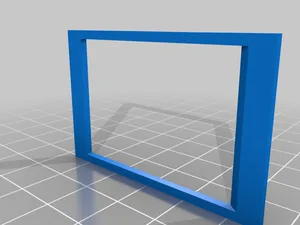

The HT model is the window with 0.3mm extra tolerance, so it will properly fit within the frame.

(Somehow Thingiverse is showing the youtube video of Adrian Herbez. That's not me! :P)

Printer Brand:

Anycubic

Printer:

All-metal Mega

Rafts:

No

Supports:

No

Resolution:

0.15

Infill:

20

Filament:
eSun PLA
off white

Notes:

Print with the flat sides down. Note that the window has an angled part which should be facing up.

Post-Printing
=============

Take note of orientation when glueing together.

Note that the window looks symetrical, but isn't. It does have an inside part and a top and bottom. Take care when assembling.

Category: Games
