The White Castle Boardgame Bridge

for The White Castle (2023) Layer by Layer

Free

View on MakerWorld 57 191 Added Dec 15, 23 | Updated Aug 3, 26 Support kevjduffy by Liking and Boosting their model.

Remix View the original model

Plan Your Print

About 18 g of filament From the designer's print profile

Print Profile (4) 0.2mm layer, 2 walls, 10% infill cut bridge only 47m 18 g PLA, PLA-S

0.2mm layer, 2 walls, 10% infill cut bridge only

1 plate 47m 18 g PLA, PLA-S

X1 Carbon, P1S, P1P, X1, X1E, A1, A1 mini, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

0.20 mm layer; 10% gyroid sparse infill; support PLA

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · bridge cut

47m 18 g PLA · 16 g PLA-S · 2 g

0.2mm layer, 3 walls, 15% infill; tree supports

1 plate 2h 12m 49 g PLA, PLA-S

X1 Carbon, P1S, P1P, X1, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Tree supported version, much easier to remove.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · bridge cut

2h 12m 49 g PLA · 16 g PLA · 15 g PLA · 16 g PLA-S · 2 g

0.2mm layer, 3 walls, 15% infill; tree supports

1 plate 52m 18 g PLA, PLA-S

X1 Carbon, P1S, P1P, X1, X1E

Manual tree support version. Much easier to remove.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

52m 18 g PLA · 17 g PLA-S · 1 g

3 Bridges, 3 colors, 1 plate; 0.2mm layer, 2 walls, 10% infill

1 plate 2h 19m 53 g PLA, PLA-S

X1 Carbon, P1S, P1P, X1, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Red, Black and White bridges, all on one plate. Print by object. Support interface PLA.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · bridge cut

2h 19m 53 g PLA · 16 g PLA · 15 g PLA · 16 g PLA-S · 6 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

EDIT : added print profiles with Tree Supports which are much easier to remove. Supported face is not quite as clean as with normal supports but it's under the bridge and not visible in play.

Bridge model for the game White Castle. I have provided the model as a one piece and pre-cut as stl files. Plus a 3MF.

The Japanese bridge was remixed from https://www.thingiverse.com/thing:4678369 by user https://www.thingiverse.com/marv28297 and was modified to scale and dice platforms were added.

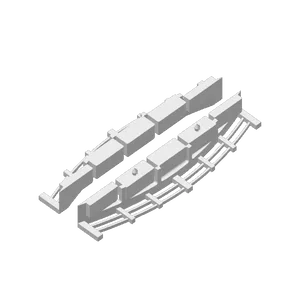

For the cleanest print, I cut in half down the center of the long-dimension of the bridge and printed with the handrails plate-down. Used the prong connectors and a wee bit of glue. Support is used for the dice platforms, came away very cleanly using Support PLA. I tried printing as a whole but couldn't get it supported clean enough to my satisfaction but give it a try. Without supports, the handrails weren't clean enough although settings tweaks for overhangs may work.

white castle boardgamecomponents
