Pandemic boardgame storage box

for Pandemic (2008) Layer by Layer

Koos

Replacement Box Free

View on MakerWorld 30 44 Added May 4, 25 | Updated Aug 4, 26 Support Koos by Liking and Boosting their model.

Also Found On Printables 3

Plan Your Print

✓ Covers Pandemic: State of Emergency, Pandemic: In the Lab, Pandemic: On the Brink Expansions this print stores alongside the base game

About 1,537 g of filament From the designer's print profile

Print Profile 46h 54m 1,537 g PLA

What it takes

13 plates 46h 54m 1,537 g PLA

X1 Carbon, P2S, H2D, P1S, H2S, X1, H2D Pro, P1P, X1E, A1, H2C, X2D, A2L

See the project file for specific print settings. But in general: • 0.20mm layer height • Adaptive layer height for the inlay + inlay cover for smooth arches • Extra walls for the case itself • No supports expect for small tree support for the inlay to support the arches over the pawns • Ironing for the inlay + inlay cover + card cases. My ideal settings is 150 mm/s speed and 38% flow to get a smooth surface. • I like the use of the textured plate for the texture on on the outside of the case.

Plate Details (13)

0.4 mm nozzle, all plates

Plate 1 · Base game covers

3h 1m 109 g PLA · 6 g PLA · 103 g

Plate 2 · Base game bottoms

2h 30m 96 g PLA · 96 g

Plate 3 · In the lab expansion

3h 55m 102 g PLA · 54 g PLA · 48 g

Plate 4 · On the brink expansion

4h 2m 107 g PLA · 48 g PLA · 59 g

Plate 5 · Rugged case hinges and logo

1h 32m 41 g PLA · 41 g

Plate 6 · Rugged case top logo

15m 5 g PLA · 5 g

Plate 7 · Inlay part 2

10h 52m 296 g PLA · 296 g

Plate 8 · Rugged case bottom 1

4h 21m 185 g PLA · 185 g

Plate 9 · Rugged case bottom 2

4h 21m 185 g PLA · 185 g

Plate 10 · Rugged case top 1

4h 20m 151 g PLA · 151 g

Plate 11 · Rugged case top 2

4h 19m 151 g PLA · 151 g

Plate 12 · Inlay part 1

1h 28m 55 g PLA · 55 g

Plate 13 · Inlay cover

1h 59m 54 g PLA · 51 g PLA · 3 g

Designer's Description

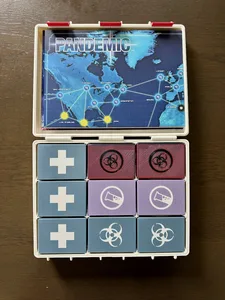

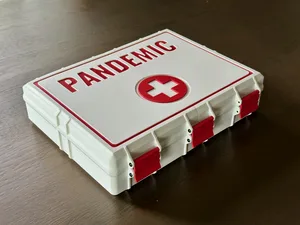

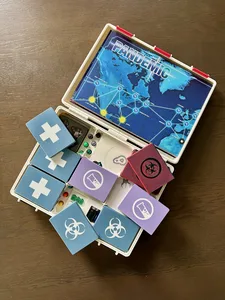

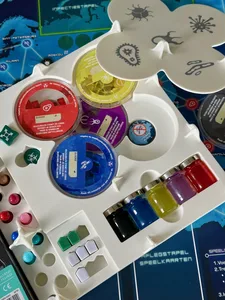

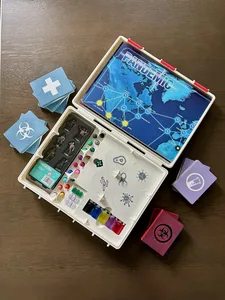

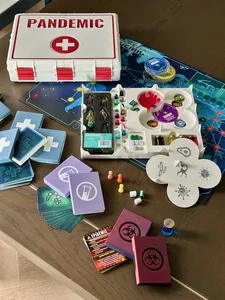

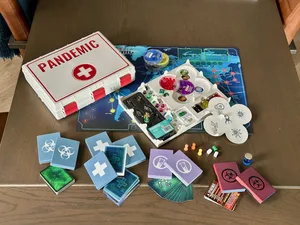

Store your Pandemic boardgame with expansions in style!

This case will be able to store:

Pandemic base boardgame
Expansion “In the lab”
Expansion “On the brink”

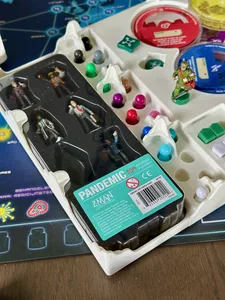

Miniatures box released separately by Z-Man games

Since “State of Emergency” expansion was never released in Dutch, I do not own this expansion and didn't make room for it inside this box.

The outside of the rugged case is based on Iceman's awesome design of the customizable rugged box .

I've added some boolean subtracts to make place for the logo on the front of the case.

Since the box became too big to fit by Bambu X1C I had to split it in two. Because I've added the logo's on the front and the inlay for the bottom, the case itself is very sturdy! This is also the reason why I've opted for three hinges. The screws "pull togehter" both parts.

See the project file for specific print settings. But in general:

0.20mm layer height
Adaptive layer height for the inlay + inlay cover for smooth arches
Extra walls for the case itself
No supports expect for small tree support for the inlay to support the arches over the pawns
Ironing for the inlay + inlay cover + card cases. My ideal settings is 150 mm/s speed and 38% flow to get a smooth surface.
I like the use of the textured plate for the texture on on the outside of the case.
