Arkham Horror LCG Modular Token Storage

for Arkham Horror: The Card Game (Revised Core Set) (2021) Layer by Layer

also fits Arkham Horror: The Card Game (2016)

LawMoney

Organizers Free

View on MakerWorld 120 295 Added Mar 15, 25 | Updated Aug 6, 26 Support LawMoney by Liking and Boosting their model.

Plan Your Print

✓ Uses magnets Needs magnets you buy separately; check the description for sizes and counts

About 321 g of filament From the designer's print profile

Print Profile (2) 0.2mm layer, 2 walls, 7% infill 7h 40m 321 g PLA

0.2mm layer, 2 walls, 7% infill

4 plates 7h 40m 321 g PLA

P1S, X1 Carbon, A1, P1P, H2D Pro, H2S, X1E, P2S, H2C, X1, H2D, X2D, A2L

0.4mm nozzle 0.2mm layer 7% gyroid infill

Plate Details (4)

0.4 mm nozzle, all plates

Plate 1

1h 51m 80 g PLA · 80 g

Plate 2

2h 22m 99 g PLA · 99 g

Plate 3

2h 16m 95 g PLA · 95 g

Plate 4

1h 12m 47 g PLA · 47 g

6x3mm magnets 0.2mm layer, 2 walls, 7% infill

4 plates 7h 49m 325 g PLA

X1 Carbon, A1 mini, H2S, H2D Pro, P1S, X1, H2D, P1P, P2S, X1E, A1, H2C, X2D, A2L

I did not have 6x2mm magnets, so I updated the step files to have 3mm depth to fit 6x3mm magnets.

Plate Details (4)

0.4 mm nozzle, all plates

Plate 1

1h 53m 81 g PLA · 81 g

Plate 2 · Health Sanity

2h 25m 98 g PLA · 98 g

Plate 3 · Chaos Tokens

1h 17m 51 g PLA · 51 g

Plate 4

2h 14m 95 g PLA · 95 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

Usage

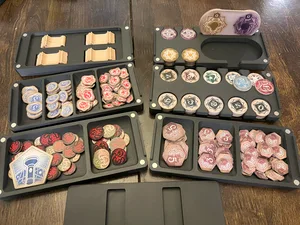

This storage system is designed to store the following Arkham Horror LCG items for quick setup:

Chaos Tokens
10x Bless / Curse Tokens with Dial
Resources
Health / Sanity
Doom / Clues
Path Connector Arrows

It is also modular, allowing some degree of customization. If you are not using bless / curse tokens, you can easily omit that. You can also mix and match with other trays from my Marvel Champions Modular Token Holder , which may work better for other custom tokens.

I have since replaced all of my original Chaos Tokens and Clues/Doom with Aurbits and can confirm that they fit with no modifications.

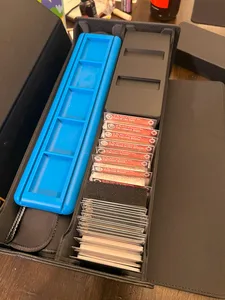

The storage stacks and locks into place with magnets and guiding tabs. Print 2x lids if you want to store this in two separate stacks to fit in the Marvel Champions box. I store mine in a Dragonshield Magic Carpet 1000 XL. This is sized to fit exactly within. The “Lid - Grip” has cut outs to allow you to lift the entire nested system out of the Magic Carpet.

Due to the size restrictions for fitting in the Dragonshield box, the chaos tokens do not accommodate coin capsules .

Printing

To fit all standard items, print the following:

1x Lid - Grip
1x Path Arrows
1x Resources
1x Bless Curse Tokens
1x Chaos Tokens
1x Doom - Clue
1x Health - Sanity

You will also need 8x magnets sized 6mm x 2mm thk per modular section. Be very careful about the magnet polarity when installing these. All of the magnets on the top faces must be the opposite as the bottom faces (i.e. top faces of all trays is North, while the bottom faces of all trays is South). This will allow you to nest them easily in any order.

The magnets holes are designed to be 0.10mm oversized, which is very close. Depending on your printer, the magnets may be a bit tight or loose. Use superglue or epoxy to keep the magnets stable.
