Improved Rivals for Catan trays

for Rivals for Catan (2010) Layer by Layer

Littlejohn

Inserts Free

View on MakerWorld 2 7 Added May 17, 26 | Updated Aug 10, 26 Support Littlejohn by Liking and Boosting their model.

Remix Reworks another design; the description credits the original.

Plan Your Print

About 107 g of filament From the designer's print profile

Print Profile 3h 36m 107 g PLA

What it takes

1 plate 3h 36m 107 g PLA

P1S, X1 Carbon, A1, H2S, P1P, H2D, H2D Pro, P2S, X2D, X1E, H2C, X1, A2L

0.12mm Layer height

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

3h 36m 107 g PLA · 107 g

Designer's Description

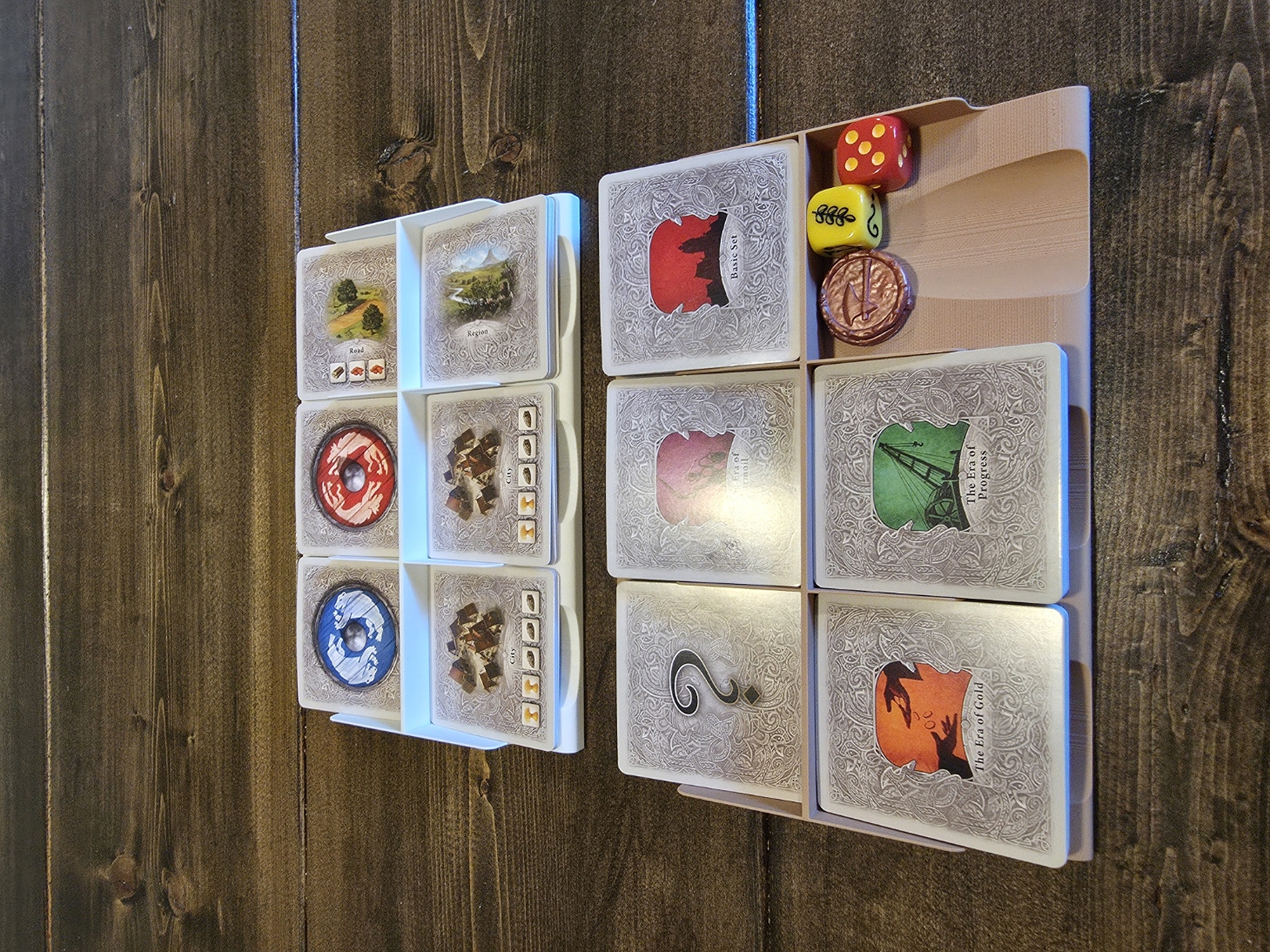

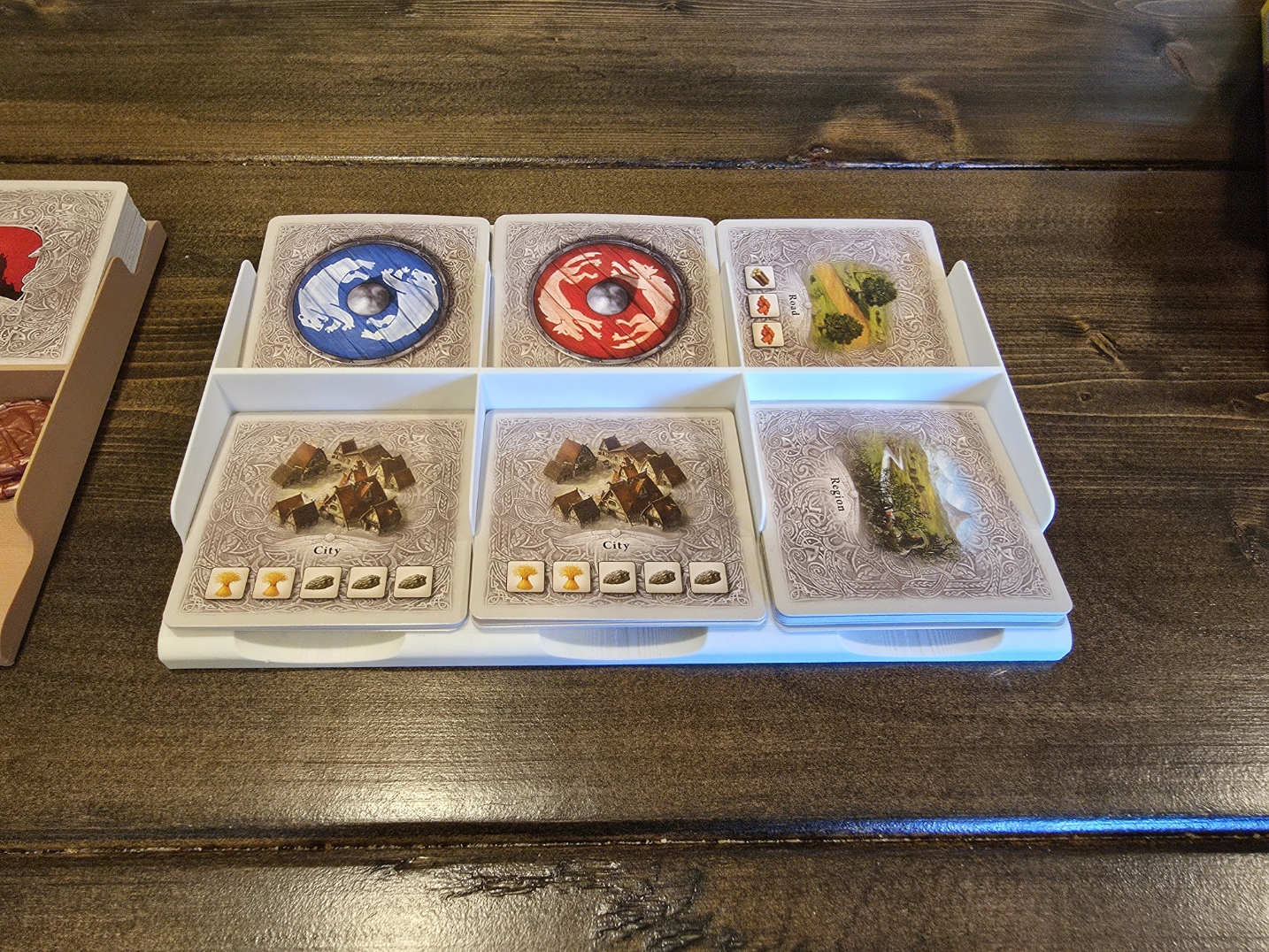

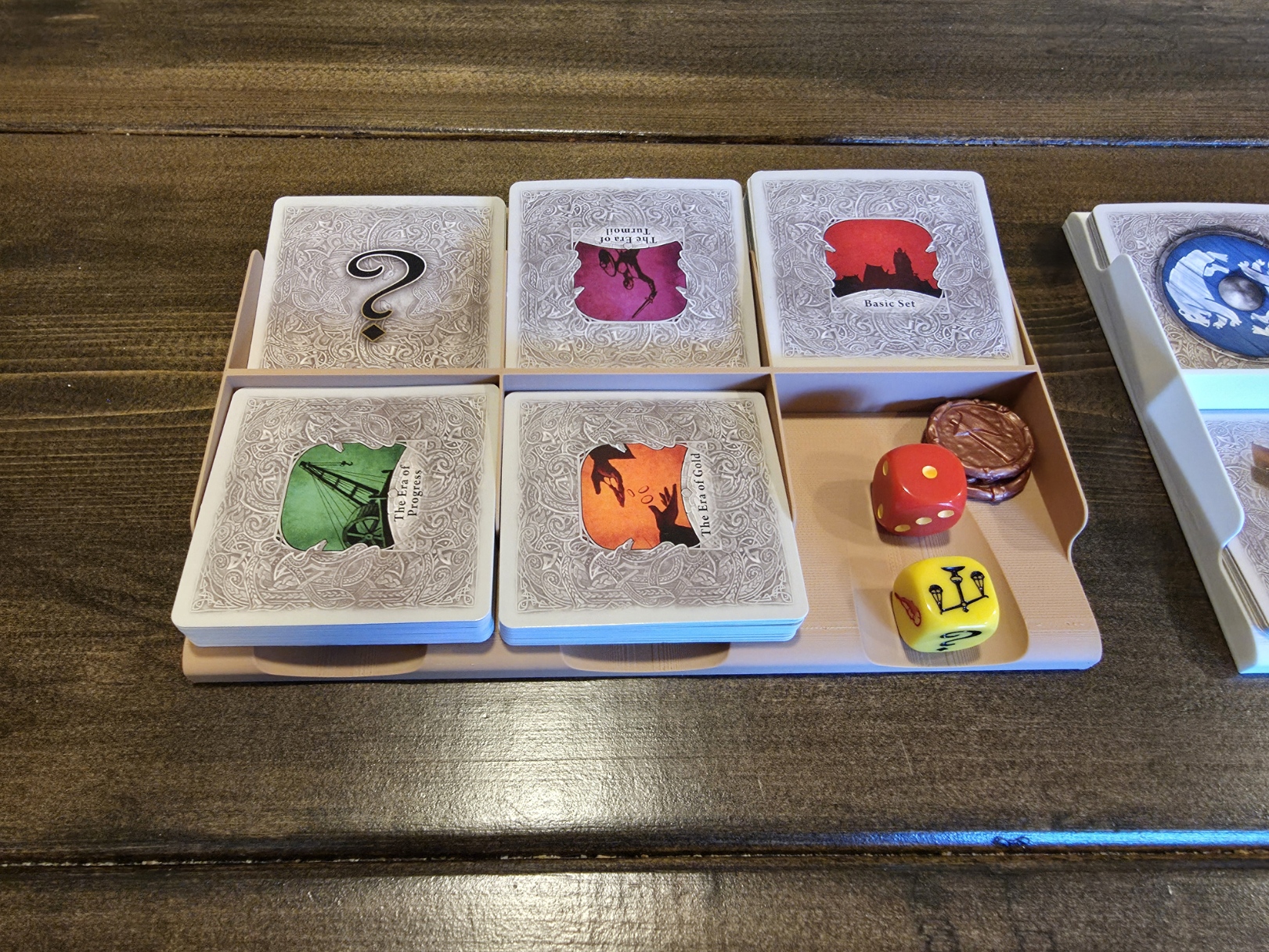

Rivals for catan card organizer.

Idea came largely from https://makerworld.com/en/models/1008532-rivals-for-catan-card-trays#profileId-987571 , but was completely redone. Would love to give credit to that model, but they picked a license that doesn't allow remixes.

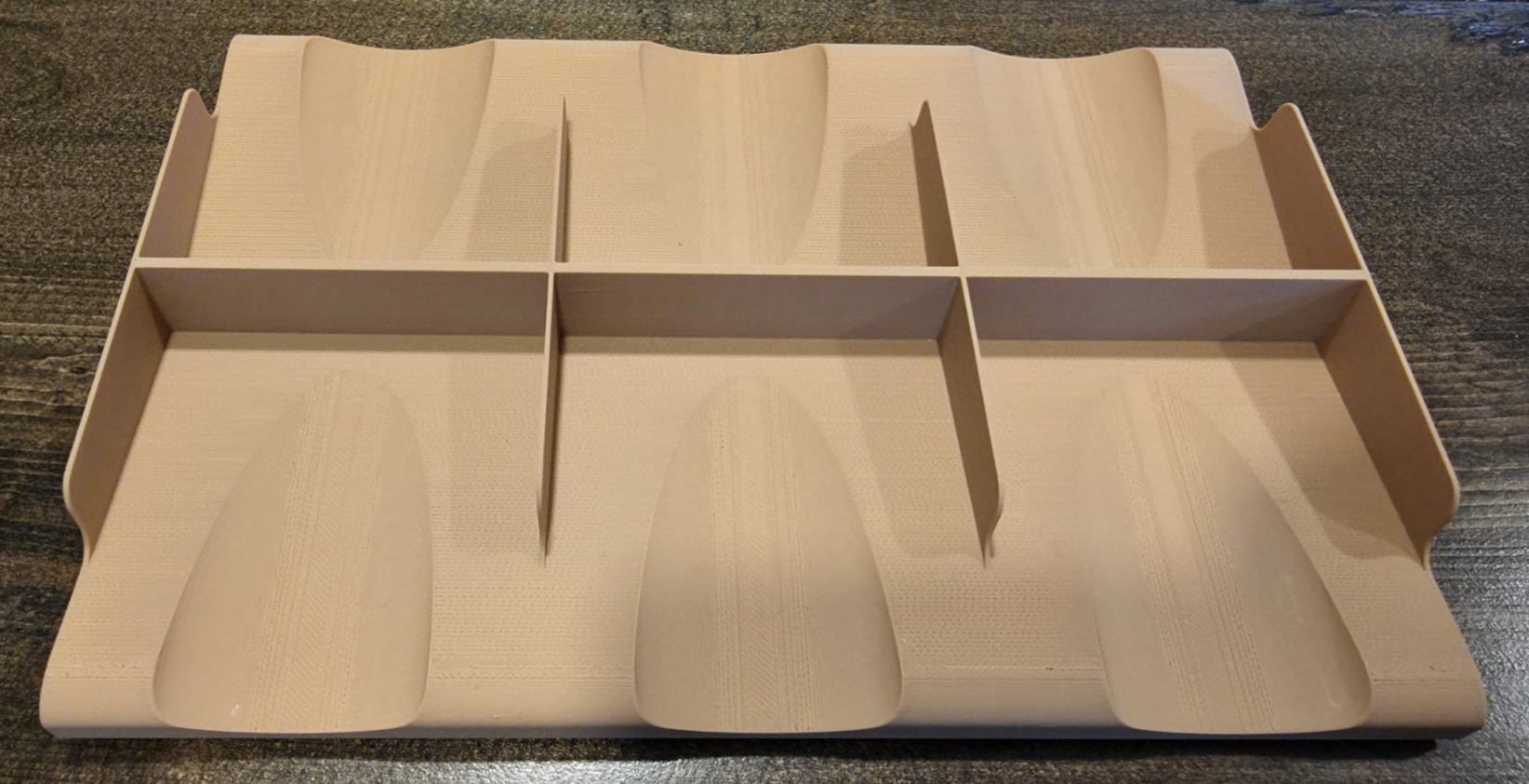

Each card slot has a bit of margin and they fit nicely. Walls are 2 nozzle width wide (0.8mm), which seems plenty strong. There is a finger grab point under each card stack so you can grab the cards or return cards to the bottom of the stack. I mean, what else could you ask for in life?

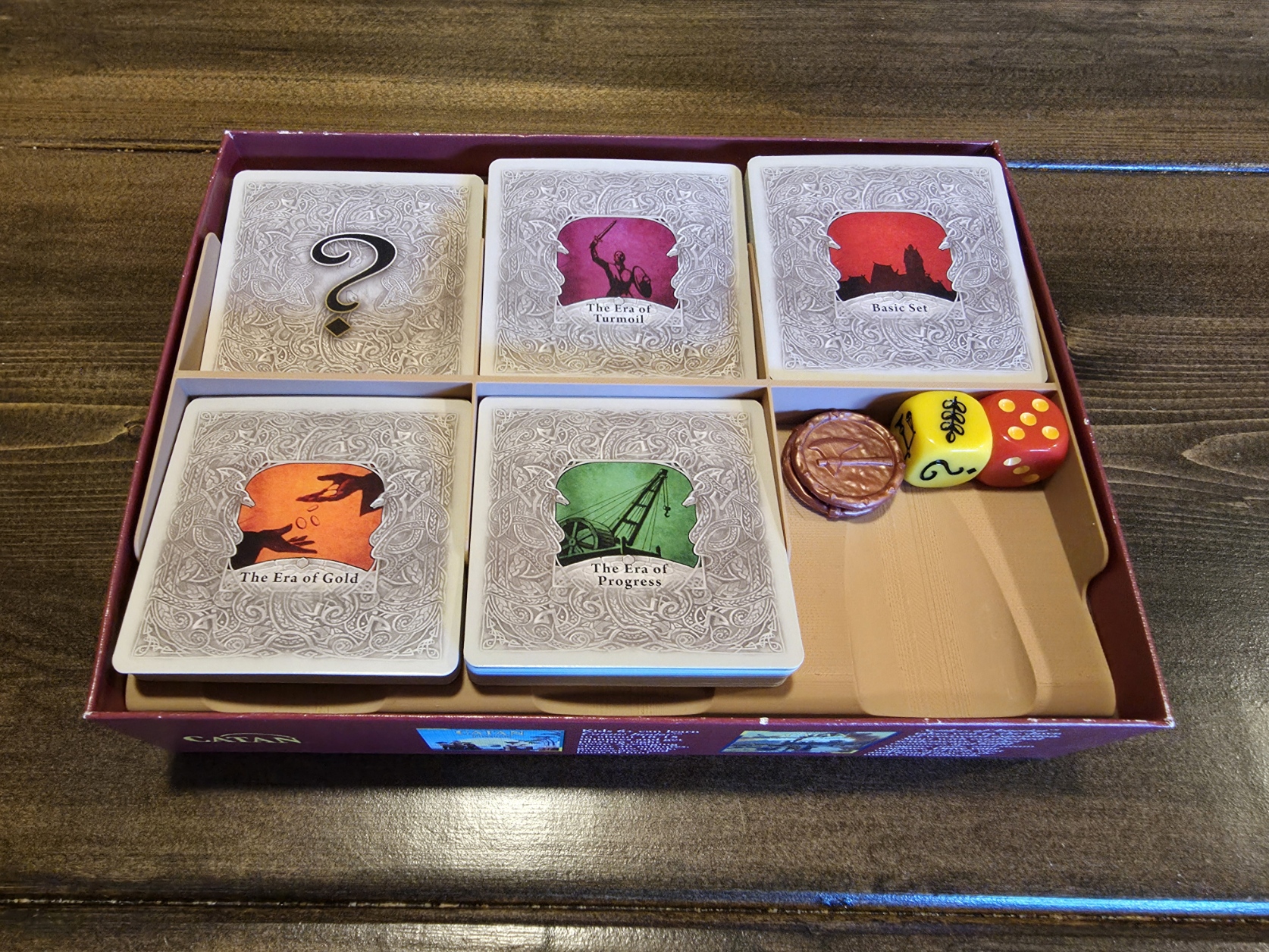

2 trays stack inside the box. It's a bit of a tight fit in the box, but this allows for the needed margin in the card width. Everything stays contained nicely.

Recommend printing at 0.12 mm or smaller layer height, otherwise the gradient really shows up. Matte filaments also do a better job of hiding the layers in a gradient.

Step file is attached if anyone wants to modify things.

Works great! Hope you like it!
