DnD DM Screen Holder and Storage box
Storage & Containers
Free
Plan Your Print
Sign in
to track this print from Want to Printed.
About 187 g of filament
From the designer's print profile
Print Profile (2) 0.12mm layer, 2 walls, 20% infill 8h 51m 187 g PLA
0.12mm layer, 2 walls, 20% infill
2 plates
8h 51m
187 g PLA
A1 mini, P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L
Print with supports, to avoid damaging your dm screen please flex the base pucks open a little bit before attaching to your screen
I plan to make a remix with a bit more tolerance on the slots
Plate Details (2)
0.4 mm nozzle, all plates
Plate 1
3h 53m
66 g
PLA · 66 g
Plate 2
4h 58m
121 g
PLA · 121 g
0.12mm layer, 2 walls, 20% infill
1 plate
3h 10m
79 g PETG
A1, P1S, P1P, X1 Carbon, X1E, X1, A1 mini, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

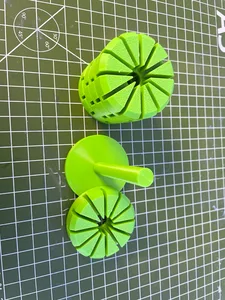

Ich fand die Aufbewahrungsbox hat zu viel Plastik und Zeit zum Drucken benötigt. Ich habe die Halter für den DM-Screen mit einem Loch in der Mitte versehen und einen Stab zum auffädeln entworfen. Die Scheiben können oben runter rutschen. Ich habe über ein Gewinde nachgedacht, aber das war für mich nicht notwendig.
Plate Details (1)
0.4 mm nozzle, all plates
Plate 1
3h 10m
79 g
PETG · 79 g
As sliced by the designer. Your printer, filament, and settings may change these numbers.
Designer's Description
A friend asked me to print some holders/feet for his DnD screen, looking here I found a few designs but they only had one position... either straight or one angle, so I decided to make one with multiple positions. Then once that was printed I figured... why not make a box for them!

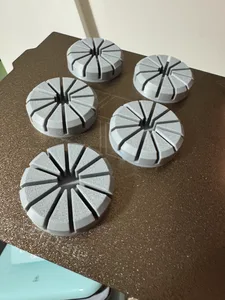

Screen Holder:
- 50mm dia x 13mm height
- The slots are done at 30degree increments.
- *** UDPATE *** 4 Different slot sizes are now available (2.25mm/2.75mm/3.25mm/3.75mm) pick the one best suited for your screen.

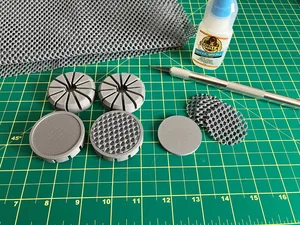

- To prevent them from sliding too easily, I've cut and glued pieces from an anti-slip drawer liner that I already had. I included the cutting template in the files.

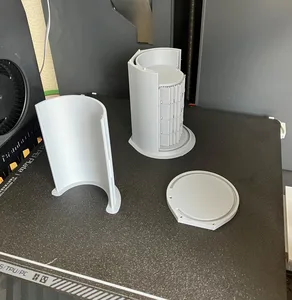

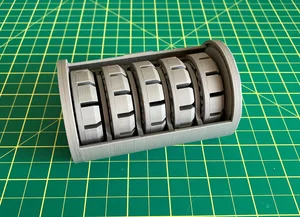

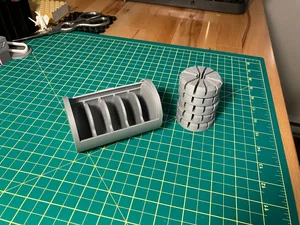

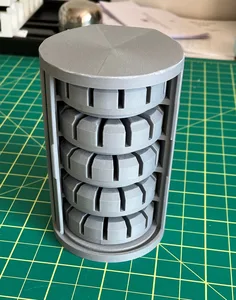

Storage Box:
- 65mm dia x 100 height.

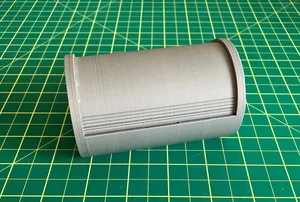

- The cover slides and clips directly in the main body of the box.
- The little pins on the main body are only for alignment purposes, you'll need to glue the cap & main body together (after having inserted the sliding cover... obviously lol)
I hope you'll like this simple design!
Storage box
