Voidfall Retail – Insert + Triple-Layered Boards

Inserts Free
Plan Your Print
About 733 g of filament From the designer's print profile
Print Profile (3) 0.2mm layer, 2 walls, 5% infill 32h 34m 733 g PLA
0.2mm layer, 2 walls, 5% infill
10 plates 32h 34m 733 g PLA
P2S, H2S, H2D, H2D Pro, H2C, A1, X2D, A2L
The holders for the battle overview and the agenda cards have supports. A solid object about 2mm thick is needed to remove them.
Plate Details (10)
0.4 mm nozzle, all plates
Plate 1
2h 53m 61 g PLA · 61 g
Plate 2
2h 23m 68 g PLA · 68 g
Plate 3
3h 45m 97 g PLA · 97 g
Plate 4
5h 8m 86 g PLA · 86 g
Plate 5
2h 29m 60 g PLA · 60 g
Plate 6
1h 12m 28 g PLA · 28 g
Plate 7
3h 36m 99 g PLA · 99 g
Plate 8
2h 17m 62 g PLA · 62 g
Plate 9
2h 17m 62 g PLA · 62 g
Plate 10
6h 35m 110 g PLA · 110 g
0.2mm layer, 2 walls, 15% infill
2 plates 2h 28m 53 g PLA
P2S, H2D, H2S, H2C, A1, H2D Pro, X2D, A2L
Frame and decorative element
Plate Details (2)
0.4 mm nozzle, all plates
Plate 1 · CHROMA
1h 43m 27 g PLA · 18 g PLA · 3 g PLA · 3 g PLA · 3 g
Plate 2
45m 26 g PLA · 26 g
Please test to see if large cards with sleeves fit
1 plate 50m 21 g PLA
P2S, P1P, A1, H2C, P1S, X1 Carbon, X2D, A1 mini, H2S, X1, X1E, H2D, H2D Pro, A2L
The width has been increased by 0.5 mm and the length by 1 mm.
Plate Details (1)
0.4 mm nozzle, all plates
Plate 1
50m 21 g PLA · 21 g
As sliced by the designer. Your printer, filament, and settings may change these numbers.
Designer's Description

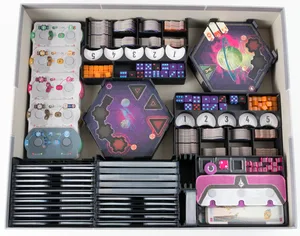

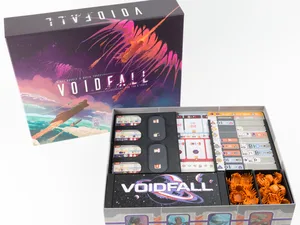

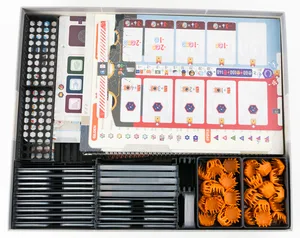

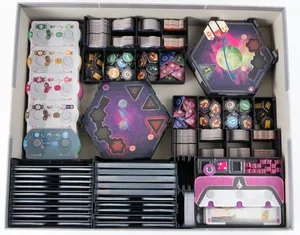

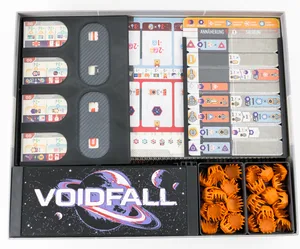

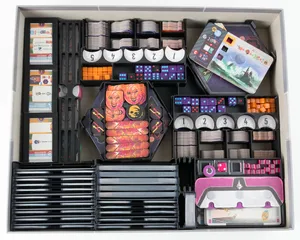

The insert is designed for the retail version of Voidfall. It can hold the additional four triple-layered boards without lid lift. I don’t own these boards yet, which is why they’re missing from the pictures.

When designing the insert, the focus was on making it practical and visually attractive, while also not using too much filament. There are some spacers, so with just a few adjustments, the upcoming expansion should fit as well.

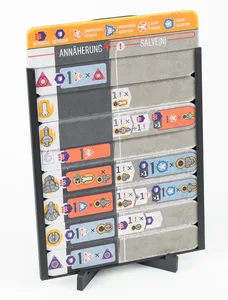

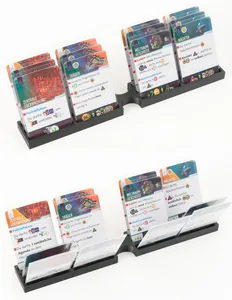

The holders for the battle overview and the agenda cards have supports. A solid object about 2mm thick is needed to remove them. Both can be stood upright using any holders to save space on the table. Alternatively, the agenda cards can also be inserted into the slots when it is laid flat on the table.

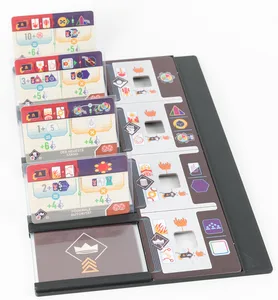

The technology cards can be easily shared using the handle and can also be folded forward so that the cards in the back can be read.

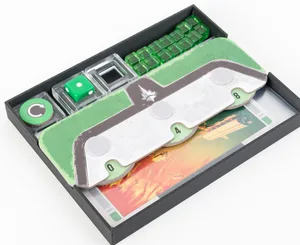

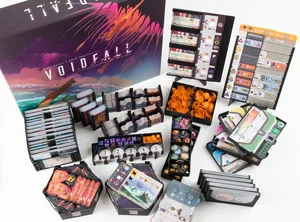

Each player color has its own storage, and the ships and resources have been divided so that with two players, each has their own, and with four players, two people can share.

Each house has a slim storage where the faction can be easily identified from the outside.

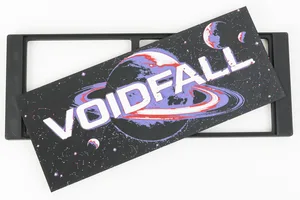

The decorative element in the bottom left corner sits on top of the frame, so it can be replaced with your own design or left out altogether.

Please feel free to contact me if you have any problems with the print files. Any suggestions for improvement are also welcome.
