Dropper Bottle Paint Rack - 36 paints for painters

Organizers Free

View on MakerWorld 2,032 4,504 Added Jul 3, 25 | Updated Sep 5, 26 Support Mandasquare by Liking and Boosting their model.

Plan Your Print

About 228 g of filament From the designer's print profile

Print Profile (13) 0.2mm layer, 2 walls, 10% infill 6h 51m 228 g PLA

0.2mm layer, 2 walls, 10% infill

3 plates 6h 51m 228 g PLA

P1S, P2S, H2C, X2D, X1, P1P, H2S, X1 Carbon, A1, A2L, X1E, H2D Pro, H2D

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

1h 43m 53 g PLA · 53 g

Plate 2

2h 25m 78 g PLA · 78 g

Plate 3

2h 44m 97 g PLA · 97 g

Paint Rack With Feets

3 plates 7h 6m 237 g PLA

P1S, X1 Carbon, A1, H2D, H2D Pro, X1, A2L, P1P, H2C, X2D, X1E, P2S, H2S

Paint Rack with handle & feets to increase the overall stability of the product.

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

1h 57m 62 g PLA · 62 g

Plate 2

2h 25m 78 g PLA · 78 g

Plate 3

2h 44m 97 g PLA · 97 g

No Hole, No Handle

3 plates 6h 20m 211 g PLA

P1S, A1, A2L, X1 Carbon, H2C, X2D, X1E, H2D Pro, H2S, H2D, P2S, X1, P1P

The Paint Rack without holes on the top or anything for a handle. Slightly shorter!

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1 · Sides (No Hole)

2h 20m 83 g PLA · 83 g

Plate 2 · Slide In Shelves

2h 25m 78 g PLA · 78 g

Plate 3 · Bottom, Shelves

1h 34m 50 g PLA · 50 g

Paint Rack - Smooth Version

3 plates 6h 13m 226 g PLA

P1S, X2D, P1P, X1, H2D, H2D Pro, H2C, A1, X1 Carbon, X1E, H2S, A2L, P2S

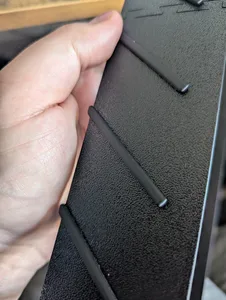

All the edges of the print have been smoothed out in order to give a better sensitive experience when touching and manipulating the paint rack. This doesn't impact the overall structure of the pain rack in any way.

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

2h 8m 87 g PLA · 87 g

Plate 2

2h 14m 76 g PLA · 76 g

Plate 3

1h 51m 63 g PLA · 63 g

0.2mm layer, 2 walls, 10% infill

5 plates 6h 15m 196 g PLA

A1 mini, P1S, H2C, A1, X2D, X1 Carbon, H2S, H2D Pro, A2L, P1P, H2D, X1, X1E, P2S

Tweaked to allow it to print on the A1 Mini: Shortened the height a little. Reduced the width, now holds 5 per row instead of 6, again, this was to allow it to fit on the A1 Mini plate.

Plate Details (5)

0.4 mm nozzle, all plates

Plate 1

1h 40m 50 g PLA · 50 g

Plate 2

23m 10 g PLA · 10 g

Plate 3

1h 16m 43 g PLA · 43 g

Plate 4

1h 15m 43 g PLA · 43 g

Plate 5

1h 40m 50 g PLA · 50 g

Handle for a1 mini version

1 plate 32m 14 g PLA

A1 mini, P1S, A1, A2L, X1 Carbon, H2C, X2D, X1E, H2D Pro, H2S, H2D, P2S, X1, P1P

Same settings as original model, just shortened the handle from the full size version so that I can have it for the smaller a1 mini version

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

32m 14 g PLA · 14 g

Full Citadel / ArmyPainter+Vallejo / ProAcryl plates

7 plates 12h 25m 465 g PLA

P2S, A1, H2D, H2D Pro, A2L, X2D, H2C, H2S

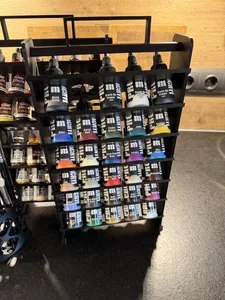

This combines all the existing profiles together to provide shelves and plates for Vallejo/Army Painter-size bottles, 30.7mm size Pro Acryl bottles, and 33mm Citadel bottles. Since the sides and bottom are the same, you can print any combination of shelves you need (or copy and paste to a new plate to mix and match).

Plate Details (7)

0.4 mm nozzle, all plates

Plate 1 · Sides, Bottom

2h 23m 99 g PLA · 99 g

Plate 2 · Shelves(Vallejo), Handle, Brackets, Feet

1h 44m 63 g PLA · 63 g

Plate 3 · Shelves(Vallejo)

2h 11m 79 g PLA · 79 g

Plate 4 · Shelves(Citadel-33mm) Cutout

1h 41m 62 g PLA · 62 g

Plate 5 · Shelves(Citadel), Handle, Bracket, Feet

1h 29m 54 g PLA · 54 g

Plate 6 · Shelves(ProAcryl-30.7mm) Cutout

1h 24m 51 g PLA · 51 g

Plate 7 · Shelves(ProAcryl), Handle, Bracket, Feet

1h 34m 57 g PLA · 57 g

30mm bottles, 5 holes with cutout, mix & match

1 plate 36m 18 g PLA

A1, X2D, P2S, H2D Pro, X1, P1P, H2D, X1 Carbon, X1E, H2C, A2L, H2S, P1S

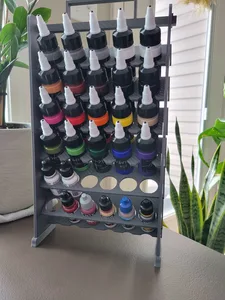

• Changed hole size to fit larger 30mm bottles, reduced # of holes to 5. • Kept plate size the same so they can be mixed interchangeably with the 6-hole plates in the same stand without resizing the entire thing. • Added a cutout to bottom so bottles don't get stuck Important: When mixing these plates together with the original 6-hole plates, the larger 30mm bottles must always be at the top of the stand. Otherwise they will get stuck on the bottom lip of the original plates that don't have a cutout.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · 30mm holes with cutout

36m 18 g PLA · 18 g

Pro Acryl - 0.2mm layer, 2 walls, 10% infill

1 plate 1h 24m 51 g PLA

P2S, P1S, H2C, A1, X2D, X1 Carbon, X1, H2D Pro, A2L, P1P, H2D, H2S, X1E

This suits Pro Acryl bottles, 30 per rack. just print this plate 2 times instead of the parts with the cutouts.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · 30mm holes with cutout

1h 24m 51 g PLA · 51 g

Paint rack extension

1 plate 2h 29m 95 g PLA

P2S, A1, A2L, H2C, H2D Pro, H2S, H2D, X2D

Paint rack extension, that works as a middle section for the main print profile.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

2h 29m 95 g PLA · 95 g

Paint Rack LONG Version

1 plate 1h 46m 70 g PLA

P2S, H2S, A1, A2L, H2C, H2D, H2D Pro, X2D

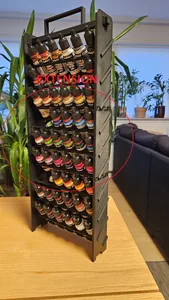

The shelf support/wall, but elongated to accommodate more paint bottles. Print x2 Top wall x2 9 shelves in total. 6 x 9 = 54 bottles instead of 36. All credit to the original modeller.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

1h 46m 70 g PLA · 70 g

32Mmm Hole with Cutout

2 plates 2h 49m 93 g PETG

P2S, X2D, H2D Pro, X1, P1P, H2D, X1 Carbon, X1E, A1, A2L, H2S, P1S, H2C

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1 · 32mm holes with cutout Meeden

1h 50m 62 g PETG · 62 g

Plate 2 · 32mm Holes Meeden Paints

59m 31 g PETG · 31 g

Liquitex Ink Bottle Shelves

1 plate 1h 14m 50 g PLA

X2D, P1P, H2D, X1, P1S, H2D Pro, H2C, X1 Carbon, A1, H2S, A2L, P2S, X1E

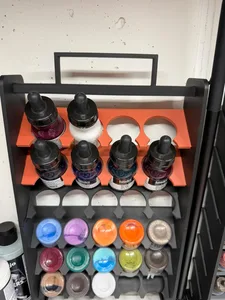

Shelves designed to fit Liquitex Ink bottles. Fits up to 4 Liquitex Inks. Due to using the existing paint rack there is a height limitation causing the bottles to slightly rest on top of each other.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

1h 14m 50 g PLA · 50 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

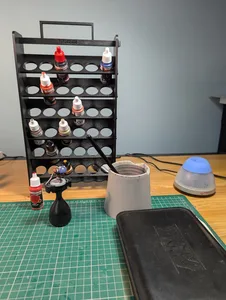

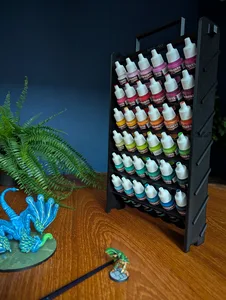

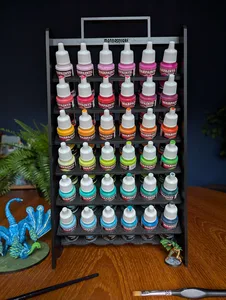

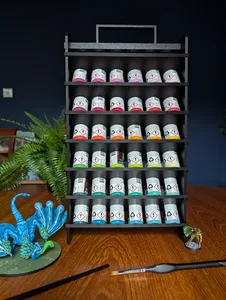

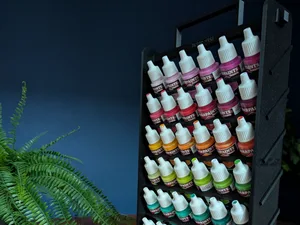

Introducing The Vertical Compact Paint Rack — the vertical space-saving solution for hobbyists and artists! This sleek, vertical paint rack is specially designed to hold up to 36 dropper-style paint bottles like those from Vallejo and Army Painter. With its minimal footprint and integrated handle, this rack is perfect for those with limited workspace who need easy access to their paint collection.

Whether you're painting miniatures, models, or art pieces, The Vertical Compact Paint Rack keeps your workspace organized without taking up valuable room. Its ergonomic handle makes it easy to move, allowing you to take your paints wherever inspiration strikes. Say goodbye to clutter and hello to a well-organized, compact workspace!

ATTENTION: This requires assembly. Said assembly is described below.

Keep in mind that the “Mandasquare” engraved isn't present in the profile print.

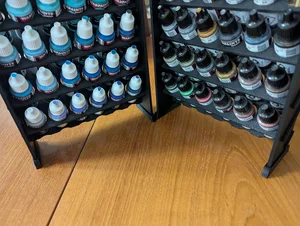

NEW : Now you can also print feets to increase the stability of the product!
Boost Me Any boost is appreciated!

Size (with handle): H36.5cm -W21cm - D5.3cm

Size (without handle): 33.7Height - W19cm - D5.3cm

How to build The Vertical Compact Paint Rack

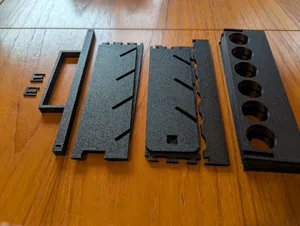

Here's what you get in a print:

The side currently up on all pieces is what I'll refer to as the textured side. Think about it like plenty of small little holes.

Don't worry, it doesn't weaken the structure, it's just for the printing.

Step 1: The Sides

Group the sides together so the notches are all going in the same direction

Choose a pair and put the triangular notches side by side, as such:

Take both pieces of a side and align them, pressing together until it clicks.

Then, place this flat on a surface and press down on the raised part until it's flat using the bottom shelf to apply pressure evenly.

Do it for the other side and... tada!

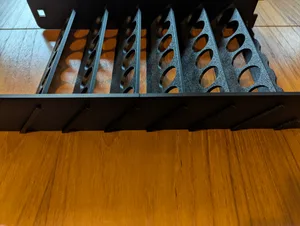

Part 2: Slide in the Shelves

Now take the bottom shelf, texture up, and slide it in the bottom of one of the sides (here I did the left side).

The bottom of the side is where you have the two little feet.

Now take the other side and slide in the other side of the bottom shelf.

All remaining shelves are the same.

Slide each one into the remaining slots in the same way as you just did. From the bottom to the top.

Part 3: The Handle

Take your handle and slide it in the square hole on one side, then the other.

Take one of the plugs (any direction) and put it in the little holes on each side of the handle. This is so you can stabilise the top and walk around with your paints.

Here's what it should look like once the plug is in.

Repeat the operation on the other side.

DONE!

You have your vertical paint rack.

Now, fill it up with your favourite paints and enjoy!
