Star Wars Outer Rim (+Unfinished business) Insert

for Star Wars: Outer Rim (2019) Layer by Layer

Maroma

Inserts Free

View on MakerWorld 37 79 Added Apr 27, 26 | Updated Sep 11, 26 Support Maroma by Liking and Boosting their model.

Plan Your Print

✓ Covers Star Wars: Outer Rim – Unfinished Business Expansions this print stores alongside the base game

✓ Fits sleeved cards

✓ Stores vertically Stands on its side; contents stay put

About 691 g of filament From the designer's print profile

Print Profile (2) 0.2mm layer, 2 walls, 10% infill 17h 9m 691 g PLA

0.2mm layer, 2 walls, 10% infill

9 plates 17h 9m 691 g PLA

A1 mini, H2S, H2D Pro, A1, X1E, X1, P2S, H2C, H2D, X2D, X1 Carbon, P1P, A2L, P1S

• 0.2mm layer height • gyroid infill 10% • Plates 8 and 9 do not have bottom and top layers, infill - grid.

Plate Details (9)

0.4 mm nozzle, all plates

Plate 1

1h 47m 66 g PLA · 66 g

Plate 2

3h 15m 116 g PLA · 116 g

Plate 3

4h 17m 179 g PLA · 179 g

Plate 4

2h 31m 94 g PLA · 94 g

Plate 5

1h 37m 71 g PLA · 71 g

Plate 6

45m 33 g PLA · 33 g

Plate 7

2h 3m 85 g PLA · 85 g

Plate 8

21m 17 g PLA · 17 g

Plate 9

33m 30 g PLA · 30 g

Standee stabilizer block

2 plates 3h 1m 102 g PLA

P1S, H2S, X1 Carbon, H2C, H2D, H2D Pro, P2S, A2L, X1, A1, P1P, X1E, X2D

I wanted something to keep the standees from toppling over if the box was stored vertically, this optional part will do that. It slots directly into the existing standee holder and can be left loose like that or glued down. Two versions available in the file, one can be printed as a single unbroken piece, and the other is split for smaller plates (with a dovetail joint, pieced together like the original standee holder). It's about 50g of filament.

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1 · Single Piece

1h 28m 51 g PLA · 51 g

Plate 2 · Split Pieces

1h 33m 51 g PLA · 51 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

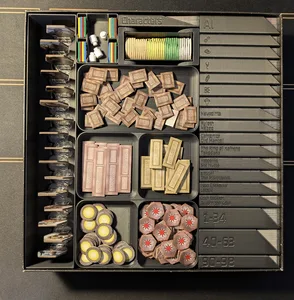

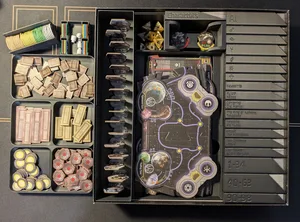

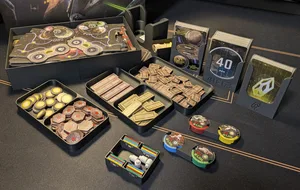

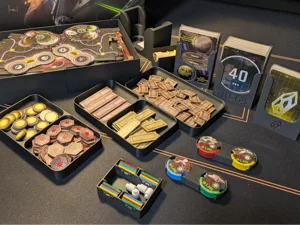

Insert / organizer for Star Wars Outer Rim (with Unfinished business expansion)

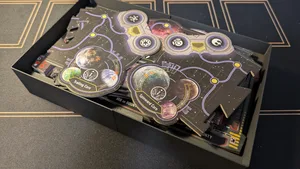

Designed to be fit in the box without lids, allows vertical storage (character standees may fall, so it is recommended to store vertically in a way that standee tray is horizontal).

Note: Plate 8 needs to be printed 4 times, it has a bottom element part that goes underneath. To save plastic and weight, you can use 5mm foamboard, cardboard, punchboard leftovers or any other means to elevate the whole insert by 5mm. Similarly, Plate 9 has bottom parts that go under the standee tray. Instead of printing it you can use any substitute.

You can skip this elements entirely, but in this case game can only be stored horizontally.

Big pieces is split in half so everything could be printed on A1 mini (print plate 1 twice). They are connected with joints with clearance 0.05mm, they are supposed to fit tightly.

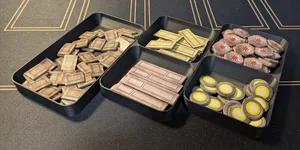

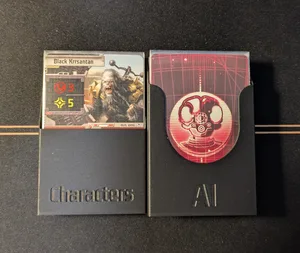

Card trays are designed for sleeved cards, unsleeved cards may be fit too loosely. Each card tray has embossed text or icon on the right side, so it can be easily identified in a box.

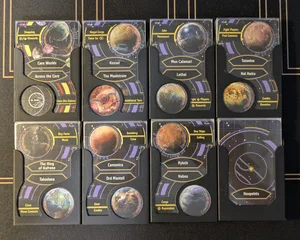

Patrol token trays can be used as is on the game board. They have embossed faction symbols, so you know how to correctly store them.
