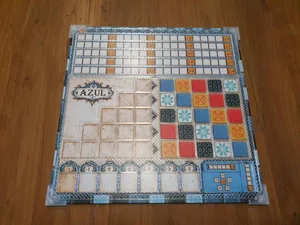

Azul Overlay - fits smaller build surface

First of all, thanks to jacquesuk for creating this overlay, it looks and works great!

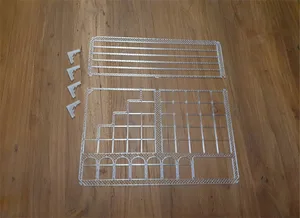

This is a remix of the original design fitting a smaller build surface than 233x233mm. This is achieved by splitting the piece and adding dovetail connections (like for the clips) to connect the top and bottom part. The minimum required size of the build plate for this remix is a width of 233mm and length of 156mm. This makes the remix printable with the Prusa MK3(s)(+), amongst many printers.

You will need to print 4 clips, one for each corner of the board.

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

No

Resolution:

0.20

Infill:

15% (rectilinear)

Filament:
123-3D PLA
Neutral

Notes:

Print Clips with 3 Bottom layers, 2 top.

Print Board with no bottom and top layers, only infill.

Wall line count: 2 (0.8)

The STL files are face down, this will ensure a nice smooth top layer.
