Exploding Kittens Expansion Box - Magnetic Lock

Plan Your Print
Covers Exploding Kittens: Barking Kittens, Exploding Kittens: Streaking Kittens, Exploding Kittens: Imploding Kittens Expansions this print stores alongside the base game
About 299 g of filament From the designer's print profile
Print Profile (3) Base Game + Expansions (0.4mm Nozzle) 12h 50m 393 g PLA
Base Game + Expansions (0.4mm Nozzle)
8 plates 12h 50m 393 g PLA
A1
As requested by one of the Exploding Kittens Fans, I've made a version that holds the Base Game and the expansions.
Plate Details (8)
0.4 mm nozzle, all plates
Plate 1 · Base + Expansion Lid
1h 20m 34 g PLA · 2 g PLA · 2 g PLA · 28 g PLA · 2 g
Plate 2 · Labels - 4 colors
22m 6 g PLA · 2 g PLA · 1 g PLA · 2 g PLA · 1 g
Plate 3 · Lables - 3 colors
23m 5 g PLA · 1 g PLA · 2 g PLA · 2 g
Plate 4 · Magnet Lock
26m 4 g PLA · 4 g
Plate 5 · Expansion Holders
5h 37m 186 g PLA · 186 g
Plate 6 · Base + Expansion Base
2h 29m 97 g PLA · 97 g
Plate 7 · Base Game Holder
1h 55m 56 g PLA · 56 g
Plate 8 · Base Game Label
20m 5 g PLA · 1 g PLA · 2 g PLA · 1 g PLA · 1 g
Only Expansions (0.4mm Nozzle)
6 plates 10h 13m 299 g PLA
A1
Pause the print for inserting the magnet in the Lock Plate. Would recomment using 0.2 mm nozzle for the tags, lock and the lid for better quality. The others can be printed with 0.4mm nozzle.
Plate Details (6)
0.4 mm nozzle, all plates
Plate 1 · Lid
1h 32m 26 g PLA · 2 g PLA · 2 g PLA · 20 g PLA · 2 g
Plate 2 · Labels - 4 colors
22m 6 g PLA · 2 g PLA · 1 g PLA · 2 g PLA · 1 g
Plate 3 · Lables - 3 colors
23m 5 g PLA · 1 g PLA · 2 g PLA · 2 g
Plate 4 · Magnet Lock
18m 2 g PLA · 2 g
Plate 5 · Holders
5h 37m 186 g PLA · 186 g
Plate 6 · Base
2h 1m 74 g PLA · 74 g
Only Expansions (0.2mm Nozzle)
6 plates 39h 46m 274 g PLA
A1
0.2mm nozzle profile for added quality for Lid, Tags and Lock. The plates have been labelled. This nozzle increases print time for the holders and the base. Those parts can be printed using the 0.4mm nozzle profile
Plate Details (6)
0.2 mm nozzle, all plates
Plate 1 · Lid (0.2 Nozzle)
4h 13m 24 g PLA · 2 g PLA · 2 g PLA · 18 g PLA · 2 g
Plate 2 · Labels - 4 colors (0.2 Nozzle)
38m 6 g PLA · 2 g PLA · 1 g PLA · 2 g PLA · 1 g
Plate 3 · Lables - 3 colors (0.2 Nozzle)
40m 5 g PLA · 1 g PLA · 2 g PLA · 2 g
Plate 4 · Magnet Lock (0.2 Nozzle)
27m 2 g PLA · 2 g
Plate 5 · Holders (0.4 Nozzle)
23h 53m 170 g PLA · 170 g
Plate 6 · Base (0.4 Nozzle)
9h 55m 67 g PLA · 67 g
As sliced by the designer. Your printer, filament, and settings may change these numbers.
Designer's Description

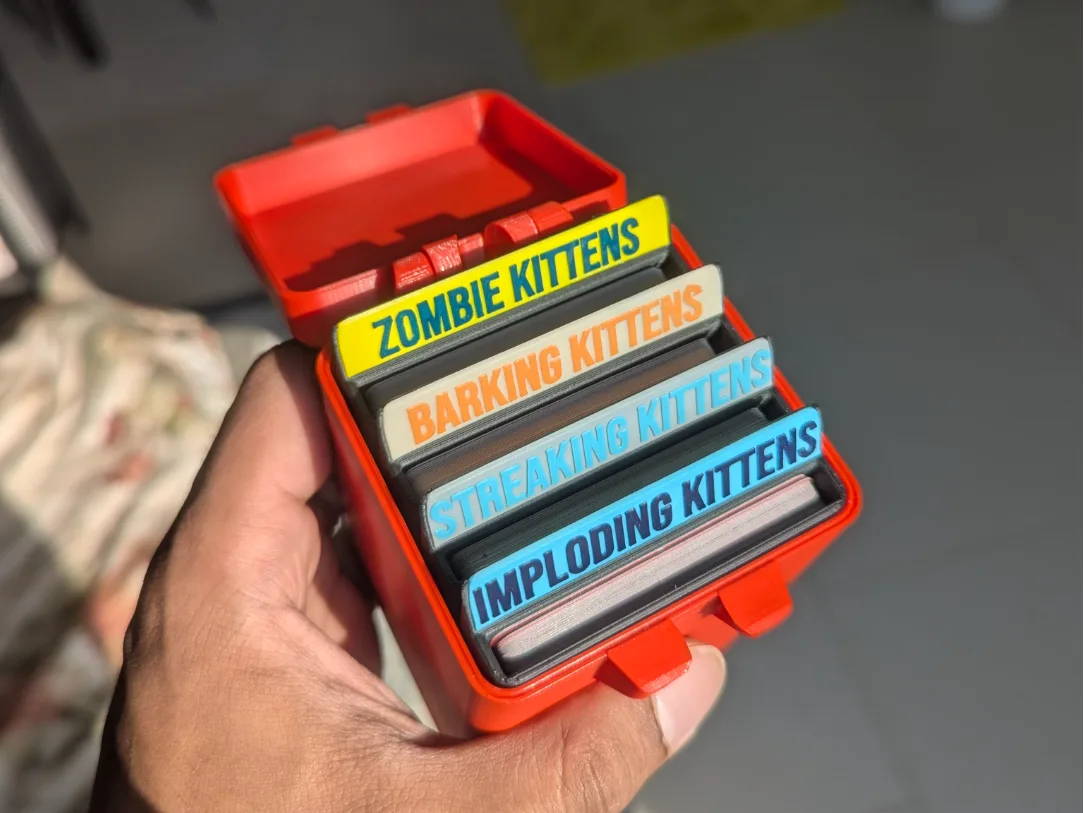

There is no single solution to house all the exploding kittens expansions and I was tired of carrying multiple boxes to play one of my favorite games. This box houses all expansion cards:

  • Imploding Kittens (20 Cards)
  • Streaking Kittens (15 Cards)
  • Barking Kittens (20 Cards)
  • Zombie Kittens Expansion Only (22 Cards)

There is also a compartment to house the rulesheets for each expansion. Note: Barking Kittens Rules need to be refolded to fit the compartment.

The box also has a custom expansions logo on the lid and tags for each expansions. The tags need to be glued on after, the fit is a bit tight, but it works with superglue and holding the tag in place till the glue cures. These parts and the lock is recommended to be printed with a 0.2mm nozzle for better quality. The Box has a magnetic lock, pause the print at the correct layer height to insert the 8mmx2mm magnet into the lock. The base has room to just push in the magnet. Ensure that polarity is correct when inserting the magnetics. The magnetic lock provides a satisfying click when closing. The Supertack Buildplate is recommended to get smooth finishes.

The Lock, Box and Base are inspired from https://makerworld.com/en/models/377006-snaplock-storage-boxes-parametric#profileId-282924 . I redesigned it to fix the expansion card holders.

If needed I will also upload profiles for holding the party pack or base pack of the game along with the expansion. That way you can have your one place solution for carrying this game around. Let me know if anyone needs this.

EDIT: As mentioned earlier and due to a request, I have published a profile that contains the base game along with the expansion. Over the next few days, I will upload a profile from Party Pack + Expansions. :)
