Terraforming Mars All In One Insert Set

for Terraforming Mars (2016) Layer by Layer

okraskaj

Organizers Free

View on MakerWorld 14 119 Added Dec 3, 24 | Updated Aug 4, 26 Support okraskaj by Liking and Boosting their model.

Remix View the original model (Thingiverse)

Plan Your Print

✓ Optional multicolor profile The designer also offers a multicolor way to print this (an MMU/AMS profile or per-color parts)

About 506 g of filament From the designer's print profile

Print Profile 16h 9m 506 g PLA

What it takes

13 plates 16h 9m 506 g PLA

X1 Carbon, P1S, P1P, X1, X1E

Everything as described in the model description. • standard settings • no supports needed • make sure to check for pauses for the magnets.

Plate Details (13)

0.4 mm nozzle, all plates

Plate 1

1h 44m 64 g PLA · 61 g PLA · 3 g

Plate 2

2h 33m 99 g PLA · 99 g

Plate 3

1h 43m 71 g PLA · 69 g PLA · 2 g

Plate 4

2h 8m 76 g PLA · 76 g

Plate 5

1h 5m 34 g PLA · 34 g

Plate 6

16m 4 g PLA · 1 g PLA · 1 g PLA · 1 g PLA · 1 g

Plate 7

8m 1 g PLA · 1 g

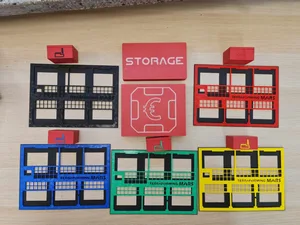

Plate 8 · player board blue

1h 7m 27 g PLA · 27 g

Plate 9 · player board red

1h 7m 27 g PLA · 27 g

Plate 10 · player board yellow

1h 17m 27 g PLA · 27 g

Plate 11 · player board green

1h 7m 27 g PLA · 27 g

Plate 12 · player board black

1h 7m 27 g PLA · 27 g

Plate 13 · player board back side- x6

45m 22 g PLA · 22 g

Designer's Description

Terraforming Mars - All In One Insert Set

I decided to create this remix after a very long journey which started when my friend asked me to print him some inserts to Terraforming Mars.

We spent considerable amount of time going back an fourth choosing models that would work for him, and later I had to spend additional time preparing them to print.

Some decisions had to be made about magnets size, print orientation, number of copies, pause heights…
Some models could be printed using AMS instead of gluing the colour inserts in.

This is the end result of this journey- a click and print solution for all of the problems above:

Common size of magnets chosen- you will need 72 magnets- all of them 6x3mm
Where it was possible I tried to use AMS capabilities- the player boxes couldn't be printed in a good orientation for the magnets and AMS so I decided to stick to glue in inserts for them.
The pauses for inserting the magnets should be added in the profile- make sure to be ready and to keep the orientation consistent:
For the lids keep one polarity and for the bottom parts keep the other. ← this is harder than it souds, so I recommend marking one side of the stack of magnets with piece of tape- this helped me a lot.
All the items are already copied and arranged in correct numbers and colours.
The only exception is the last plate which you need to print 6 times.
If you have a cool effects plate, I got you covered- where it was possible I oriented the models face-down
e.g. diamond pattern on the picture below:

Boost Me If I made your life a little easier, please leave a boost :)
