Sliding Playing Card Tray
Print Profile 23h 44m 869 g PLA
Plate Details (9)
Deal cards across the table without reaching — this smooth-rolling tray slides cards directly to every player.
This model is an adaptation of my Playing Card Tray , redesigned to make dealing cards across the table easier and more fun .

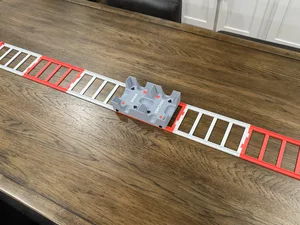

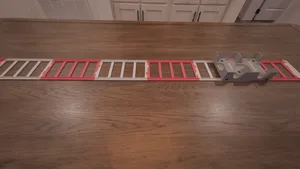

During game nights we noticed everyone constantly reaching across the table to grab cards , which quickly got annoying. This tray solves that problem by letting you simply slide the cards to players at the other end of the table .

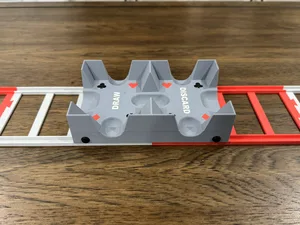

The tray rides on bearings so it rolls smoothly across the table , making reaching the cards quick, easy, and satisfying.
An optional taller card tray is also included for games that use larger decks like UNO or multi-deck card games .
Perfect for:
- Family game nights
- Poker
- UNO
- Multi-deck card games
🃏 Smooth rolling card dealer
🃏 Slides across the table to reach players easily
🃏 Standard deck version + taller tray options
🃏 3-deck and 4-deck versions included
🃏 Simple print with minimal hardware
You will need:
- 4 × 608 Bearings
You can buy them from Maker’s Supply on BambuLab or other retailers.
Example (Amazon):
https://a.co/d/3QifmeQ
For the smoothest roll , use:
4 × Standard 608 Ball Bearings
If you want the tray to have a bit more control and resistance , try:
- 2–3 × Standard 608 bearings
- 1–2 × 608-2RS sealed bearings
Sealed bearings contain grease, which adds resistance. Using one or two sealed bearings helps prevent the tray from rolling too freely while still keeping it smooth.
These settings work well for most printers:
- Layer Height: 0.2 mm
- Infill: 10–15%
- Supports: Not required
- Material: PLA recommended
All parts are designed to print easily without supports .
- Print the tray and Track components, and bearing connectors.
- Press 4 × 608 bearings into the wheel slots and connect them to the base using the printed Bearing Connector pins.
- Ensure the bearings spin freely.
- Place your cards in the tray and slide them across the table!
Many users requested larger deck versions, so the following have now been added:
- 3 Deck Version
- 4 Deck Version
Download the updated files and enjoy!
If you print one, feel free to post your make and share your game setup.
Likes and ratings are always appreciated!
