Lets Go to Japan

for Let's Go! To Japan (2024) Layer by Layer

QHC

Scoring & Tracking Free

View on MakerWorld 44 171 Added May 14, 25 | Updated Sep 7, 26 Support QHC by Liking and Boosting their model.

Remix Reworks another design; the description credits the original.

Plan Your Print

About 334 g of filament From the designer's print profile

Print Profile (3) 0.16mm layer, 2 walls, 10% infill 17h 11m 334 g PLA

0.16mm layer, 2 walls, 10% infill

6 plates 17h 11m 334 g PLA

A1, H2D, P1P, P1S, X1E, X1 Carbon, X1, H2D Pro, H2S, P2S, H2C, X2D, A2L

Recommend printing both resource trays at .16mm or higher resolution. Everything else can be printed at .20mm without issues.

Plate Details (6)

0.4 mm nozzle, all plates

Plate 1 · (x4) Player Box

1h 44m 32 g PLA · 32 g

Plate 2 · (x1) Card Tray

5h 51m 108 g PLA · 81 g PLA · 14 g PLA · 13 g

Plate 3 · (x2) Discard Tray

2h 39 g PLA · 12 g PLA · 27 g

Plate 4 · (x1) Spacer

1h 28m 32 g PLA · 32 g

Plate 5 · (x2) Resource Tray - Wild and Trains

2h 36m 53 g PLA · 2 g PLA · 51 g

Plate 6 · (x2) Resource Tray - Research and Walk

3h 31m 70 g PLA · 1 g PLA · 69 g

0.16mm layer, 2 walls, 15% infill

6 plates 18h 380 g PLA

P2S, A1, H2D Pro, P1S, X1, H2D, H2C, X2D, X1 Carbon, X1E, P1P, H2S, A2L

There's not much different here except that I: • Corrected the print numbers assigned to plates so you don't accidentally print double the number of resource trays needed (plate 6), like I did. • Added tops and bottom layers to the spacer so it is smooth on top and doesn't expose the cross-hatch pattern infill. (Note: I didn't reprint mine, so refer to the model creator's image of what this looks like.) All credit (and points) accrue to the original creator. I'm just trying to help folks print what they actually need and expect. Overall, this is a great model.

Plate Details (6)

0.4 mm nozzle, all plates

Plate 1 · (x4) Player Box

1h 33m 32 g PLA · 32 g

Plate 2 · (x1) Card Tray

5h 32m 109 g PLA · 81 g PLA · 14 g PLA · 14 g

Plate 3 · (x1) Discard Tray

3h 32m 76 g PLA · 23 g PLA · 53 g

Plate 4 · (x1) Spacer

1h 40m 39 g PLA · 39 g

Plate 5 · (x2) Resource Tray - Wild and Trains

2h 27m 53 g PLA · 2 g PLA · 51 g

Plate 6 · (x1) Resource Tray - Research and Walk

3h 17m 71 g PLA · 2 g PLA · 69 g

0.28mm layer, 2 walls, 10% infill

6 plates 10h 28m 470 g PLA

A1 mini, P1S, H2S, H2D Pro, X2D, X1 Carbon, H2C, X1E, P1P, A1, X1, H2D, P2S, A2L

Created an A1 Mini profile. Changed some settings to save a lot of time and filament. Also changed to make everything one color. Everything printed perfectly for this great insert!

Plate Details (6)

0.4 mm nozzle, all plates

Plate 1 · (x4) Player Box

2h 32m 112 g PLA · 112 g

Plate 2 · (x1) Card Tray

2h 3m 96 g PLA · 96 g

Plate 3 · (x2) Discard Tray

1h 32m 72 g PLA · 72 g

Plate 4 · (x1) Spacer

1h 6m 34 g PLA · 34 g

Plate 5 · (x2) Resource Tray - Wild and Trains

1h 52m 92 g PLA · 92 g

Plate 6 · (x2) Resource Tray - Research and Walk

1h 24m 64 g PLA · 64 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

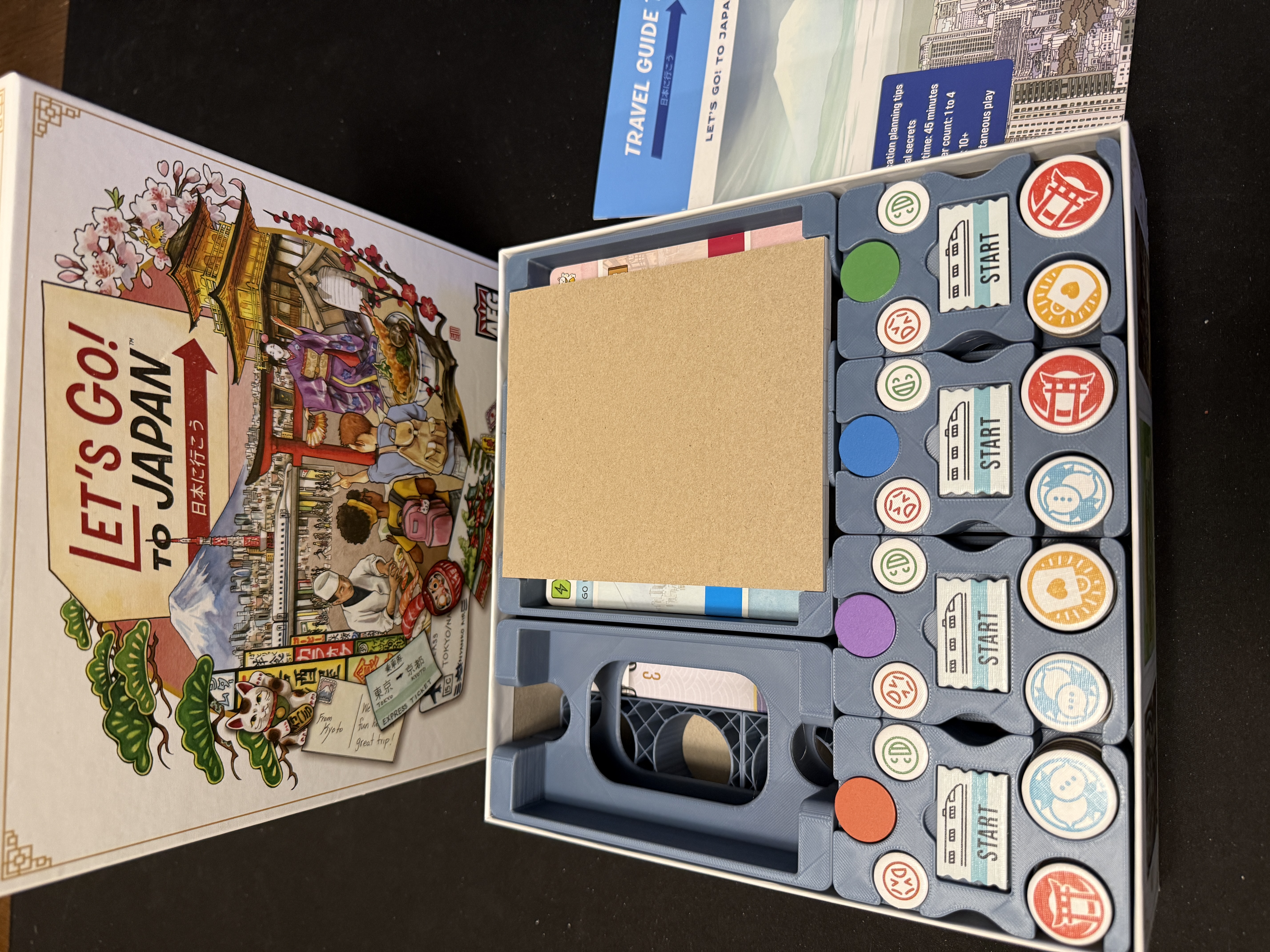

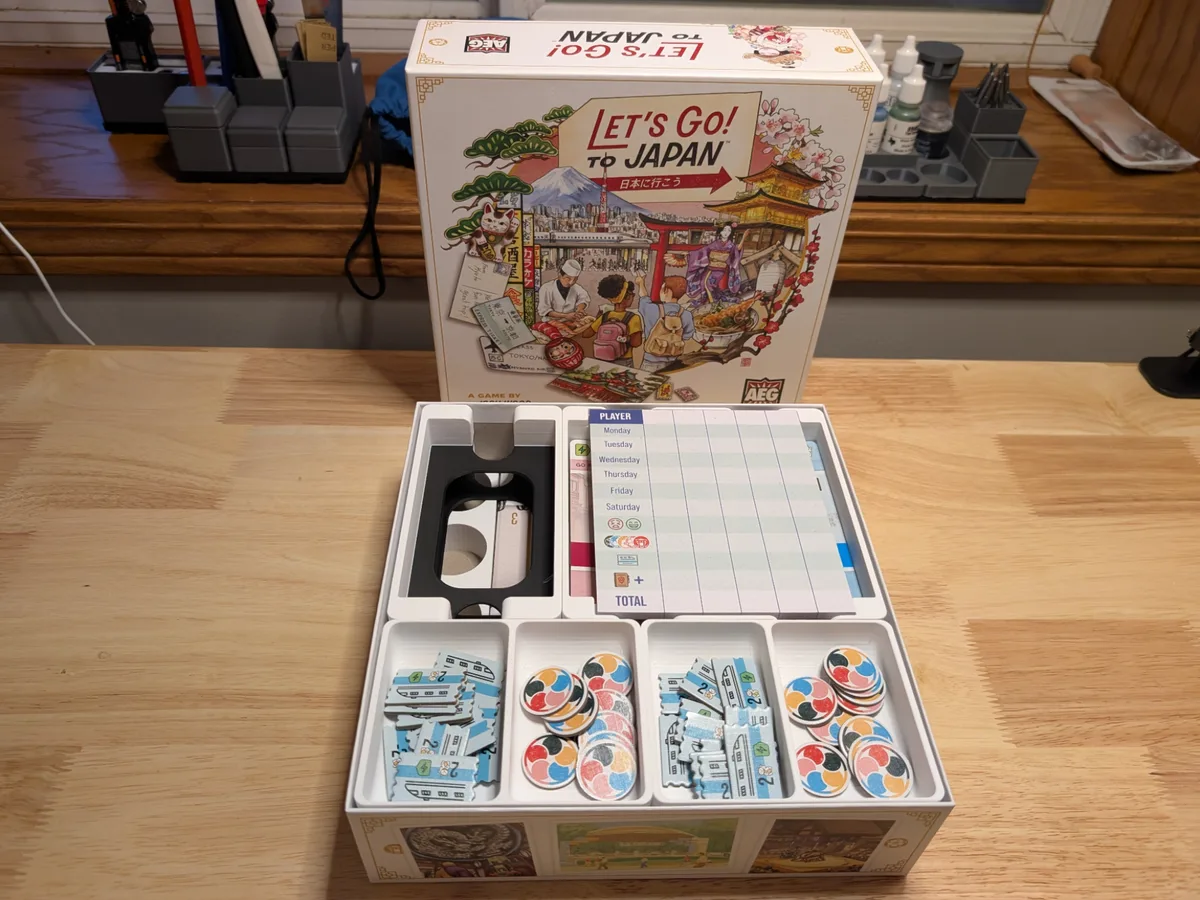

This is my take on an organizer and removable inserts for the game Let's Go! To Japan .

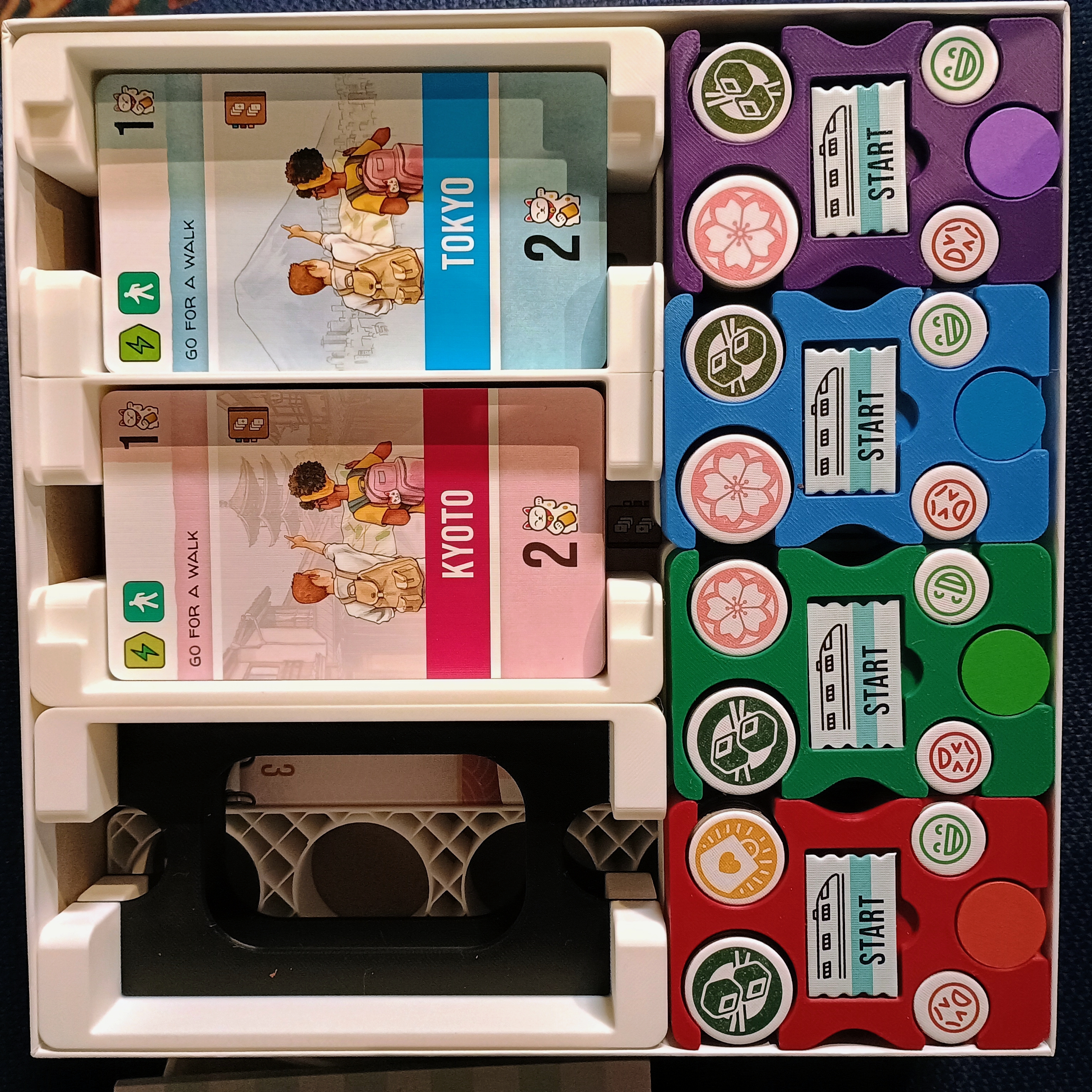

The main feature is a dual card tray for the Tokyo and Kyoto card stacks, along with two discard trays--the second of these is mostly to fill space, but having two probably can't do any harm. There's also specialized resource trays with embossed symbols, and a set of player trays for the various tokens.

Print 2x of the discard tray and `Train and Wild` resource tray.
Print 4x of the player box, either in the same color or coordinated colors to match player pieces.
Make sure to print both A and B versions of the 'Research and Walk' resource trays, as they work together to hold the round tracker.
There is no dedicated spot for the round marker token; I just put it in one of the two smaller bins and take it out during setup.
Player boards go at the bottom along with a simple spacer (you can print this without top/bottom layers to save filament).

Update (7/25/2025): Thanks to measurements from @hobbygeeks there is now an option for sleeved cards. Only the Discard (2x short or 1x tall) and Dual Cards tray parts need to be replaced, fully compatible with the original version!

Credit to olivvybee for inspiration, although everything in this insert was modeled from scratch so I didn't mark this as a true remix.
