Portable Mechanical Scoreboard
Scoring & Tracking
Free
Plan Your Print
Sign in
to track this print from Want to Printed.
✓ Optional multicolor profile
The designer also offers a multicolor way to print this (an MMU/AMS profile or per-color parts)
About 2,139 g of filament
From the designer's print profile
Print Profile 61h 7m 2,139 g PETG
What it takes
9 plates
61h 7m
2,139 g PETG
H2D, H2C, H2S, H2D Pro
Print just one of the center sections.
Plate Details (9)
0.4 mm nozzle, all plates
Plate 1 · Sides
6h 1m
225 g
PETG · 225 g
Plate 2 · Back 1 of 2
1h 27m
44 g
PETG · 44 g
Plate 3 · Back 2 of 2
1h 26m
44 g
PETG · 44 g
Plate 4 · Push-Pull Handles
1h 22m
18 g
PETG · 18 g
Plate 5 · Man vs. Woman
9h 46m
359 g
PETG · 341 g
PETG · 18 g
Plate 6 · King vs. Queen
9h 52m
359 g
PETG · 340 g
PETG · 19 g
Plate 7 · Memorial Day Pool Volleyball Tournament
11h 34m
372 g
PETG · 351 g
PETG · 21 g
Plate 8 · Parents vs. kids
9h 47m
359 g
PETG · 349 g
PETG · 10 g
Plate 9 · Home vs. Away
9h 51m
359 g
PETG · 350 g
PETG · 9 g
Designer's Description
Overview

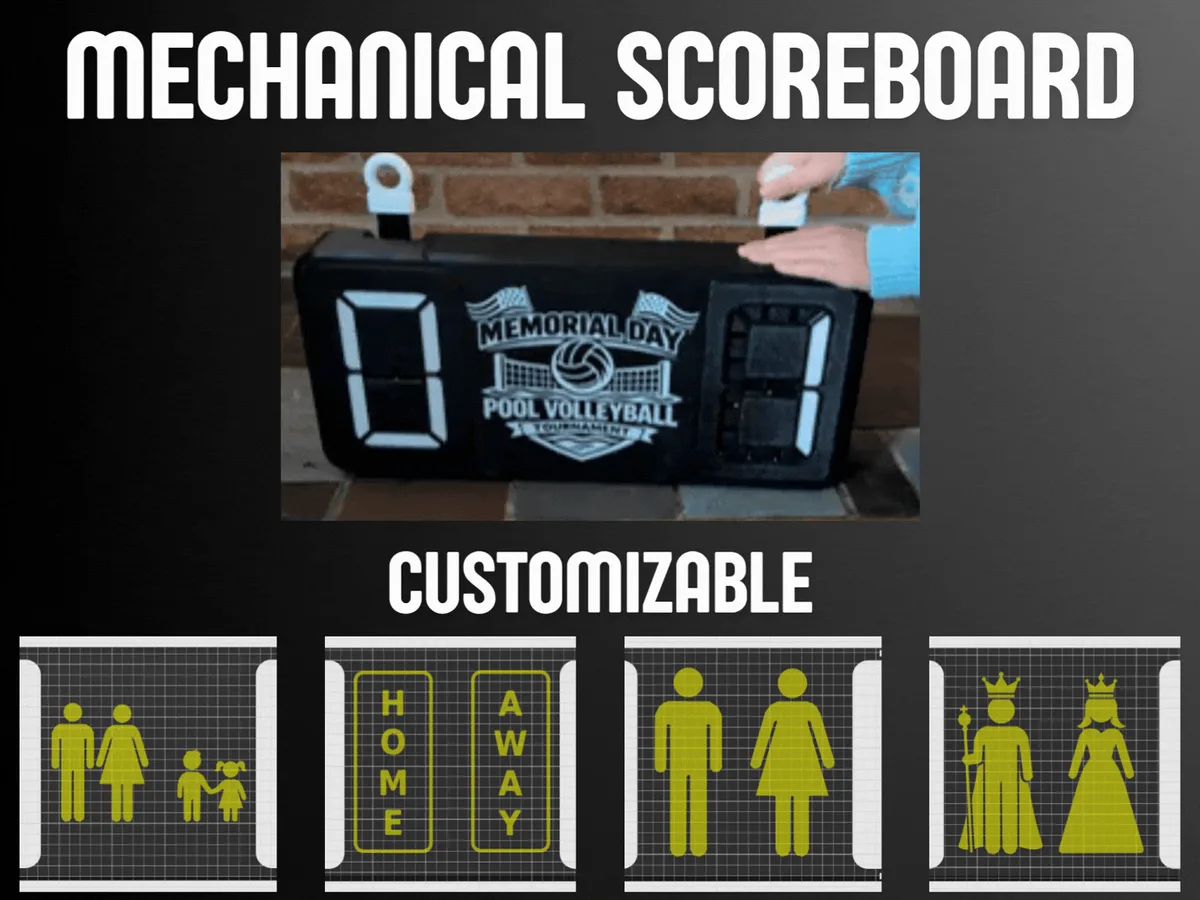

I loved the original 7 Segment Mechanical Counter design and wanted a larger version for keeping score during sports, games, tournaments, and family events.
This remix scales the original counter to 150% and adds a center connector frame that joins two counters into a single scoreboard. The larger size improves visibility while maintaining the satisfying mechanical operation of the original design.
The center panel supports customizable inserts, allowing the scoreboard to be personalized for different uses.
Current Insert Options
- Home / Away
- Man vs Woman
- Parents vs Kids
- King vs Queen
- Memorial Day Pool Volleyball
Additional themes can easily be created by importing custom SVG artwork.
Features
- Uses two 150% scaled counters
- Portable one-piece scoreboard assembly
- Larger, easier-to-read digits
- Customizable center panel graphics
- Multi-color AMS friendly
- No electronics required
- Great for:
- Pool volleyball
- Pickleball
- Cornhole
- Family game nights
- School events
- Sports tournaments
- Friendly competitions
Remix Information
This model is a remix of the original:
7 Segment Mechanical Counter v3.0 by Flower3D
Major additions include:
- 150% scale adaptation
- Structural center scoreboard frame
- Modified handle design
- Interchangeable graphic panel system
- Multi-theme scoreboard inserts
- See the original model for a link to the youtube assembly video.
PETG recommended
Color Suggestions
- Team colors
- Holiday/event-themed colors
Assembly
- Print two copies of the original counter at 150% scale and assemble.
- It is recommended to use Super Lube on the mechanical counter. This is explained in the youtube video linked in the original counter model.
- Super Lube Multi-Purpose Synthetic Oil w/Syncolon (PTFE/Teflon) https://www.amazon.com/dp/B000UKUHXK?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- If you print at 150%, then all rubber bands can be replaced with a single size. I used 3.15 inch silicone rubber bands for longer life: https://www.amazon.com/dp/B09ZLHWCMZ?ref=ppx_yo2ov_dt_b_fed_asin_title
- Stretch a rubber band to connect each set of neighboring pegs, so each segment has its own rubber band.
- Use a rubber band on the open pegs of the flat push piece in place of springs if you like. See the original model for more details on this.
- Print the scoreboard frame.
- Assemble the frame as shown in the photos.
- Enjoy!
The counters are operated by pushing the handle all the way down until you hear the click and then pulling it all the way up.
