Hero Realms Magnetic Deck Box Collection

for Hero Realms (2016) Layer by Layer

Riders

Card & Tile Holders Free

View on MakerWorld 2 6 Added Feb 2, 26 | Updated Sep 3, 26 Support Riders by Liking and Boosting their model.

Plan Your Print

About 474 g of filament From the designer's print profile

Print Profile (5) Boxes - Front Open 17h 37m 474 g PLA

Boxes - Front Open

6 plates 17h 37m 474 g PLA

A1, H2C, X2D, A1 mini, H2D Pro, X1, P2S, P1S, X1E, H2S, X1 Carbon, P1P, A2L, H2D

Plate Details (6)

0.4 mm nozzle, all plates

Plate 1

2h 47m 75 g PLA · 73 g PLA · 2 g

Plate 2

2h 49m 76 g PLA · 74 g PLA · 2 g

Plate 3

2h 57m 78 g PLA · 76 g PLA · 2 g

Plate 4

2h 59m 80 g PLA · 78 g PLA · 2 g

Plate 5

3h 1m 82 g PLA · 80 g PLA · 2 g

Plate 6

3h 3m 83 g PLA · 81 g PLA · 2 g

Boxes - Side Open Central

6 plates 17h 32m 462 g PLA

A1, H2C, X2D, A1 mini, H2D Pro, X1, P2S, P1S, X1E, H2S, X1 Carbon, P1P, A2L, H2D

Plate Details (6)

0.4 mm nozzle, all plates

Plate 1

2h 46m 72 g PLA · 70 g PLA · 2 g

Plate 2

2h 48m 74 g PLA · 72 g PLA · 2 g

Plate 3

2h 57m 77 g PLA · 75 g PLA · 2 g

Plate 4

2h 59m 78 g PLA · 76 g PLA · 2 g

Plate 5

3h 80 g PLA · 78 g PLA · 2 g

Plate 6

3h 2m 81 g PLA · 79 g PLA · 2 g

Boxes - Side Open

6 plates 17h 32m 463 g PLA

A1, X1 Carbon, X1E, A1 mini, X1, P1S, X2D, P2S, A2L, H2C, H2D, H2S, P1P, H2D Pro

Plate Details (6)

0.4 mm nozzle, all plates

Plate 1

2h 46m 73 g PLA · 71 g PLA · 2 g

Plate 2

2h 48m 74 g PLA · 72 g PLA · 2 g

Plate 3

2h 57m 77 g PLA · 75 g PLA · 2 g

Plate 4

2h 59m 78 g PLA · 76 g PLA · 2 g

Plate 5

3h 80 g PLA · 78 g PLA · 2 g

Plate 6

3h 2m 81 g PLA · 79 g PLA · 2 g

Boxes - Top Open

6 plates 16h 42m 462 g PLA

A1, H2D Pro, P1S, P1P, X1, H2C, A1 mini, A2L, P2S, H2D, X1E, X2D, H2S, X1 Carbon

Plate Details (6)

0.4 mm nozzle, all plates

Plate 1

2h 36m 73 g PLA · 71 g PLA · 2 g

Plate 2

2h 39m 74 g PLA · 72 g PLA · 2 g

Plate 3

2h 46m 76 g PLA · 74 g PLA · 2 g

Plate 4

2h 48m 77 g PLA · 75 g PLA · 2 g

Plate 5

2h 55m 80 g PLA · 78 g PLA · 2 g

Plate 6

2h 58m 82 g PLA · 80 g PLA · 2 g

Logos

2 plates 1h 20 g PLA

A1, X1 Carbon, X1E, A1 mini, X1, P1S, X2D, P2S, A2L, H2C, H2D, H2S, P1P, H2D Pro

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1

33m 11 g PLA · 9 g PLA · 2 g

Plate 2

28m 9 g PLA · 7 g PLA · 2 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

A collection of rugged, customizable deck boxes designed for Hero Realms, but perfect for any standard TCG. The design features a robust filament hinge and a sleek, invisible magnetic lock.

Key Features

Invisible Magnets: The print profile includes a programmed pause, allowing you to embed magnets inside the print. This results in a clean finish with no visible magnets or glue marks.
Filament Hinge: Uses a piece of standard 1.75mm filament as the hinge pin—durable and simple.
Fully Customizable (Negative Parts): The magnet slots, hinge path, and logo are added as "Negative Parts" in the slicer. You can resize, move, or remove them entirely in the slicer if needed.

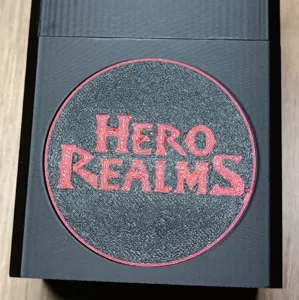

Logo Inserts: Includes optional printable badges (Hero Realms text and "H" logo).

Available Sizes (Internal Dimensions)

Files are named in the following format: Type_Width_Depth_Height in mm. (Full list of sizes included in the files) Example: Front_Open_68w_32d_93h_box

Bill of Materials (BOM)

Filament: A small piece of 1.75mm filament for the hinge.
Magnets: 2-4x Rectangular Magnets (default is 10x5x2mm, but you can resize/change the slots in the slicer).
Glue: Superglue for the logo, hinge tips (optional), and magnets (if not friction-fit).

⚠️ CRITICAL INSTRUCTION: How to Embed Magnets

The provided print profile has a pause command inserted at the layer just before the magnet holes are bridged over.

Wait for the Pause: The printer will stop automatically at the correct height.
Insert Magnets: Place the magnets into the slots. Tip: A tight friction fit is best. If they are loose, use a tiny drop of superglue to prevent them from rattling or jumping up to attach to the toolhead/extruder during printing.
CHECK POLARITY: Before resuming, double-check that the magnets in the lid and the base attract each other correctly. Once the printer covers them, you cannot fix the polarity!
Resume Print: Resume the print job. The printer will cover the magnets with plastic, making them invisible.

💡 Alternative Method: Exposed Magnets (Post-Print Assembly)

If you prefer a stronger magnetic closure or want to avoid pausing the print, you can easily modify the design to glue the magnets in after printing:

Adjust in Slicer: Select the negative parts for the magnet holes and move them by 0.4mm towards the surface so they are completely exposed.
Remove the Pause: Delete the programmed pause command in the slicer.
Post-Print Assembly: Once the print is finished, simply glue the magnets directly into the open slots. Note: This method provides a stronger lock since there is no plastic layer between the magnets. The only downside is that the magnets will be visible when the box is open.

Assembly Guide

Hinge: Align the lid and box, insert the 1.75mm filament piece through the hinge, and trim flush.
Logo: Print the optional badge and glue it into the circular recess (if the negative cutout was not removed in the slicer).
