Agemonia Card Box Insert

A friend of mine wanted an organizer for Agemonia cards, I just modelled it after his sketch.

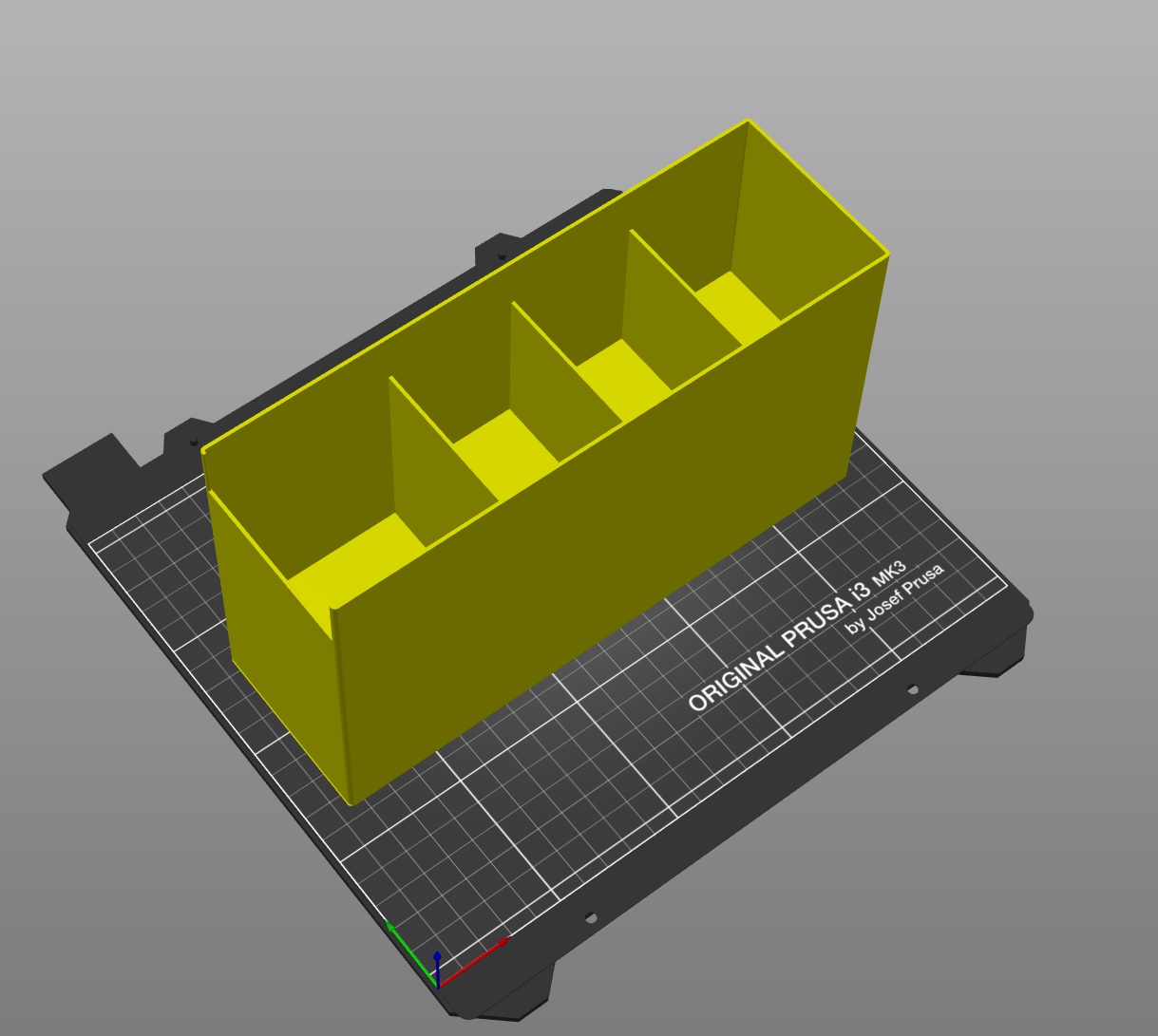

Fits inside the original cardboard box. Do check the dimensions of your box first, though. The model is 72x132x221 mm (291 mm with the optional bottom plate). Check the attached photo to see how it's supposed to be used.

PLA is fine. The model is calibrated for 0,4mm nozzle; 3 walls in the thin parts. Even 5% infill is enough, and saves quite a bit of filament. It might be a good idea to up the top layers a little bit.

To avoid ghosting and hull line issues I'd advise trying the classic perimeter generator instead of arachne and maybe print outer perimeters first. Of course, since the organizer box is meant to hide in the cardboard box, it's really not all that crucial.

You can easily add a pretty trim on the top by adding a color change in the slicer, 6 layers or so from the top. Also works without MMU or AMS.

The thin square plate is optional; my friend wanted it there to keep the box in place and to lift the larger cards up a bit. It's a separate part so the model can be printed on basic sized print beds.
