Dead Reckoning Ship upgrade organizer and display

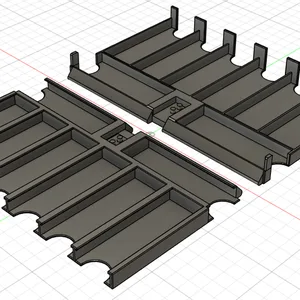

These are 3D files (STEP and STL) of the Ship upgrade organizer and display for Dead Reckoning board game.

I added a second supportless version. The second version has sidewalls glued on for better strength and reliability. You can mix the supportless version with the original one. Hinges are the same for both versions.

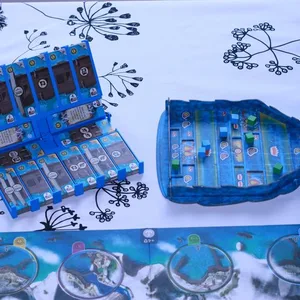

I designed one of a kind storage and display solution for ship ugrades for my favourite board game: Dead Reckoning. It can be closed and neatly fits to the main game box. There is enough room to fit all ship upgrades, including all 4 expansions*

*There is enough space for standard ship upgrades. I made a separate organizer for the questline and letters of marque content.

Model is 195 mm long. It's printable on a 20 cm x 20 cm size bed.
I printed the model on a large volume FDM printer with PLA (CREALITY K2 Plus) . I've exported my printer settings and added to the model files (not certain how it will import in Creality Print).

Letters are a 0.02 m outlay that can be colored in the slicer. They slice on the same layer as layer 1. They require good adhesion so clean your bed before printing.

𝐓𝐡𝐞 𝐡𝐢𝐧𝐠𝐞 𝐰𝐨𝐫𝐤𝐬 𝐛𝐞𝐬𝐭 𝐢𝐟 𝐢𝐭𝐬 𝐭𝐢𝐥𝐭𝐞𝐝 𝐛𝐲 90 𝐝𝐞𝐠𝐫𝐞𝐞𝐬 𝐰𝐡𝐞𝐧 𝐩𝐫𝐢𝐧𝐭𝐢𝐧𝐠. I glue the hinge to the organizer with superglue. Test the hinge before You glue it to the organizer, it might require some filing, depending on Your printer settings. More on the picture from Creality slicer.

Edit:
I added a version of the bottom part of the box without glued on parts/posts. Please note that those are fragile after printing horizontally and may break off easily. I have not tried printing the bottom box vertical, but it is an option You can explore.
