Shoji - Style Dice Tower – 5 Design Options

Dice Towers & Trays Free

View on MakerWorld 502 461 Added Apr 16, 25 | Updated Aug 29, 26 Support Schnitzel by Liking and Boosting their model.

Plan Your Print

✓ Optional multicolor profile The designer also offers a multicolor way to print this (an MMU/AMS profile or per-color parts)

About 444 g of filament From the designer's print profile

Print Profile (3) Version 1.0 15h 19m 444 g PLA

Version 1.0

9 plates 15h 19m 444 g PLA

A1, H2D, P1S, X1E, P1P, X1, X1 Carbon, H2D Pro, H2S, P2S, H2C, X2D, A2L

Plate Details (9)

0.4 mm nozzle, all plates

Plate 1

3h 44m 142 g PLA · 142 g

Plate 2

4h 24m 145 g PLA · 145 g

Plate 3 · The walls have two different hole sizes. Use the larger ones for the top.

2h 29m 83 g PLA · 83 g

Plate 4 · Choose 4 walls, Enable Thin walls

48m 12 g PLA · 6 g PLA · 5 g PLA · 1 g

Plate 5 · Choose 4 walls, Enable Thin walls

52m 14 g PLA · 7 g PLA · 6 g PLA · 1 g

Plate 6 · Choose 4 walls, Enable Thin walls

58m 16 g PLA · 7 g PLA · 9 g

Plate 7 · Choose 4 walls, Enable Thin walls

53m 12 g PLA · 6 g PLA · 5 g PLA · 1 g

Plate 8 · Choose 4 walls, Enable Thin walls

40m 11 g PLA · 6 g PLA · 4 g PLA · 1 g

Plate 9 · Choose 4 walls, Enable Thin walls

31m 9 g PLA · 5 g PLA · 4 g

A1 Mini Version

13 plates 15h 34m 448 g PLA

A1 mini, X1 Carbon, X1, P1S, X1E, H2D, A1, P1P, H2D Pro, H2S, P2S, H2C, X2D, A2L

The bottom part is halved to fit an A1 mini print.

Plate Details (13)

0.4 mm nozzle, all plates

Plate 1 · Bottom part 1, enable support

2h 2m 80 g PLA · 80 g

Plate 2 · Bottom part 2

1h 27m 50 g PLA · 50 g

Plate 3 · TOP

34m 16 g PLA · 16 g

Plate 4 · Walls

1h 6m 33 g PLA · 33 g

Plate 5 · TOP

45m 21 g PLA · 21 g

Plate 6 · Middle

53m 30 g PLA · 30 g

Plate 7 · Insert

4h 11m 145 g PLA · 145 g

Plate 8 · Choose 4 walls, Enable Thin walls

39m 11 g PLA · 6 g PLA · 4 g PLA · 1 g

Plate 9 · Inlay for dice catcher

30m 9 g PLA · 5 g PLA · 4 g

Plate 10 · Choose 4 walls, Enable Thin walls

50m 14 g PLA · 7 g PLA · 6 g PLA · 1 g

Plate 11 · Choose 4 walls, Enable Thin walls

47m 12 g PLA · 6 g PLA · 5 g PLA · 1 g

Plate 12 · Choose 4 walls, Enable Thin walls

57m 16 g PLA · 7 g PLA · 9 g

Plate 13 · Choose 4 walls, Enable Thin walls

52m 11 g PLA · 5 g PLA · 5 g PLA · 1 g

Added Covers and Custom Electronics

3 plates 1h 36m 42 g PLA

A1, A1 mini, P1S, X1E, X1 Carbon, H2D Pro, X1, P1P, H2S, H2D, P2S, H2C, X2D, A2L

This Print Profile adds two parts to the original design. The first one is to insert in the top to hide the gap between the inner towers and the panels. This one doesn't require any electronics. The second is for the back of the tower to close up the open space there and make it possible to add some LED lighting without a cable needing to be permanently connected. This part is meant to be used with a tc4056 cell charger and small switch to turn on and off. You can get both very easily and affordably and i have included reference pictures with dimensions for both. To complete the setup you will also need some kind of Lithium Ion Cell thats compatible with the chargers, i used an 18650 Industrial cell which is about the largest cell you can fit in there. I will not include a wiring diagram for this as it should be obvious enough for anyone who knows enough to be playing around with lithium cells and LEDs. The print profile is split into three plates for your convenience so you can either print both at once or print them one at a time. YOU DO NOT NEED TO PRINT ALL THREE PLATES! I know that this technically qualifies as a derivitive work of the original tower which usually would not be allowed under the standard license, however i have gotten express permission from the original author to upload these two parts as a print profile here.

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1

43m 21 g PLA · 21 g

Plate 2

32m 15 g PLA · 15 g

Plate 3

21m 6 g PLA · 6 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

Description:

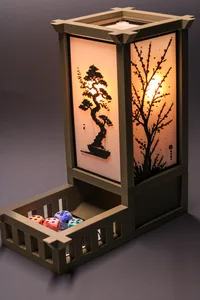

Bring a touch of Japanese elegance to your game nights with this unique Shoji-style Dice Tower !
Inspired by traditional Shoji sliding doors, this dice tower blends aesthetic beauty with functional design, creating a calming and immersive tabletop experience.

Features:

Authentic Shoji Style: Delicate latticework and light-friendly panels echo the serene beauty of Japanese interiors.
5 Window Designs: Includes five interchangeable traditional patterns so you can customize your tower’s look.
Optional LED Lighting: Add a soft ambient glow from inside the tower for dramatic effect or night-time gaming vibes.

Modular & Easy to Print: easy assembly, and great for multi-color prints.

Outfitting the Dice Tower with Lighting:

For a better visual effect, I installed LEDs inside the dice tower: 3 remote-controlled 16-color RGBW puck lights.
A setup guide is included.
Step 1: Detach the battery pack plates using a soldering iron
Step 2: Solder two wires to the contacts on the circuit board
Step 3: Attach the LED using the adhesive pad and route the wires neatly
Step 4: Solder all wires back to a battery pack

Assembly Instructions:
Step 1: Connect the base plate with the railing.
Step 2: Connect the middle section.
Step 3: Place the inner structure of the dice tower in the center.
Step 4: Attach the pillars of the dice tower.
Step 5: Attach the panels.
Step 6: Attach the top cover.

Shoji Art Lamp

Two of the included window designs were newly created specifically for this dice tower, Geisha and Koi. They are also compatible with my Shoji lamp.
If you're interested, you can find the lamp here (click image):

Boost Me If you want to support me, a free boost is always appreciated
