Terraforming Mars Colorized Player Mat

for Terraforming Mars (2016) Layer by Layer

Scott

Player Dashboards Free

View on MakerWorld 67 403 Added Jan 9, 25 | Updated Aug 6, 26 Support Scott by Liking and Boosting their model.

Remix View the original model

Plan Your Print

✓ Optional multicolor profile The designer also offers a multicolor way to print this (an MMU/AMS profile or per-color parts)

About 72 g of filament From the designer's print profile

Print Profile (3) AMS required 0.2mm layer, 2 walls, 15% infill 3h 36m 72 g PLA

AMS required 0.2mm layer, 2 walls, 15% infill

2 plates 3h 36m 72 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

I used cocoa brown, dark gray, light gray, and white.

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1

2h 42m 56 g PLA · 6 g PLA · 19 g PLA · 29 g PLA · 2 g

Plate 2

54m 16 g PLA · 16 g

2 color, 0.2mm layer, 2 walls, 15% infill

2 plates 2h 51m 61 g PLA

X1 Carbon, P1P, P1S, H2D, X1, H2S, P2S, X1E, A1, H2D Pro, H2C, X2D, A2L

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1

1h 58m 45 g PLA · 4 g PLA · 41 g

Plate 2

53m 16 g PLA · 16 g

8 Colors - 0.12mm layer, 2 walls, 15% infill

2 plates 5h 31m 75 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Added colors for each resource type to mimic the dual layer player boards. This requires two AMS units, for a total of 8 colors. Also added some variable layer height to the top layers, as I kept getting some weird artifacts on the surface. Everything else is the same as the base profile. Filaments used: Bambu PLA - Silver Bambu PLA - Jade White PolyLite PLA Pro Prod - Yellow Bambu PLA - Matte Dark Brown Bambu PLA - Black Bambu PLA - Bambu Green Bambu PLA - Purple Bambu PLA - Red

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1

4h 11m 60 g PLA · 3 g PLA · 2 g PLA · 2 g PLA · 3 g PLA · 44 g PLA · 2 g PLA · 2 g PLA · 2 g

Plate 2

1h 19m 15 g PLA · 15 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

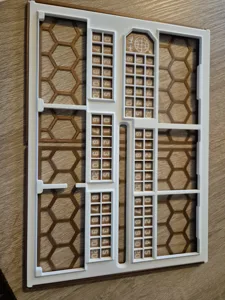

There are a lot of TM player mats, so I'll just cover what's different about this one. I started with the design from Elon_HU and kept the outer/inner frame design, but redid most of the rest. Thankfully the original designer provided a STEP file which gave me a big head start. I've provided a STEP here as well if anyone wants to remix this remix.

Please note I targeted the AMS with this colorized design. If you need a single color design, I recommend the original from Printables above, or maybe someone will take my STEP file and raise the numbers.

Changes:

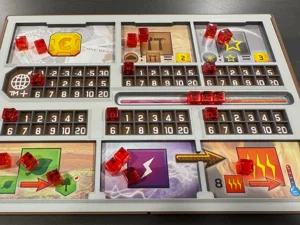

AMS colorized in the theme of the original player mats (I used cocoa brown, dark gray, light gray, and white for the numbers)
I tweaked all the windows to the player mat to better align
I brought some of the 2D details from the mats to the 3D frame, such as the corners, the bump-outs, and the 45 degree bevels around the frame.

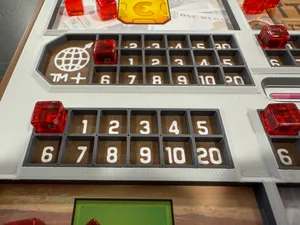

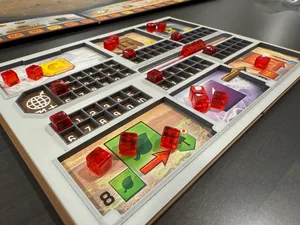

I moved around all the cube holders and redid the numbering so it is completely flush with the surface. All the cubes sit perfectly flat, but this means you need an AMS to print it.
