RifRaf Terraforming Mars Venus Next Expansion

for Terraforming Mars (2016) Layer by Layer

SMRifRaf

Free

View on MakerWorld 45 92 Added Dec 10, 24 | Updated Aug 6, 26 Support SMRifRaf by Liking and Boosting their model.

Plan Your Print

✓ Covers Terraforming Mars: Prelude, Terraforming Mars: Venus Next Expansions this print stores alongside the base game

About 35 g of filament From the designer's print profile

Print Profile (5) Gyropolis, 0.2mm nozzle, 0.1mm layer, 4 walls 2h 35m 11 g PLA

Gyropolis, 0.2mm nozzle, 0.1mm layer, 4 walls

1 plate 2h 35m 11 g PLA

P1S, P1P, A1, H2D, X1E, A1 mini, X1 Carbon, X1, H2D Pro, H2S, P2S, H2C, X2D, A2L

Detailed print of Gyropolis using AMS with two colors: • ERYONE Dual Two-Tone PLA Silk Gold & Red Copper • Tinmorry PLA Gold There are two layer-based filament changes in this model that could be done manually, if you don't have an AMS.

Plate Details (1)

0.2 mm nozzle, all plates

Plate 1

2h 35m 11 g PLA · 4 g PLA · 7 g

Stratopolis, 0.2mm nozzle, 0.1mm layer, 4 walls

3 plates 5h 11m 24 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, A1 mini, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

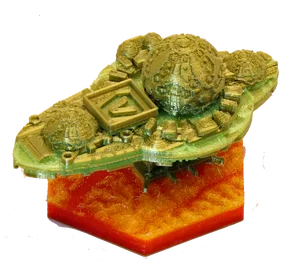

Very detailed print of Stratopolis using AMS with three colors: • ERYONE Dual Two-Tone PLA Silk Gold & Red Copper • Tinmorry PLA Silver • Tinmorry PLA Gold The two parts of the ship are glued together after the print. The ship is then attatched to the base tile without glue. In the lower half of the ship there is one filament change that could be done manually, if you don't have an AMS. In the upper half there ist none. In the base tile there are 28 filament changes to give it a perfect look. You could however print the base tile in only one or two colors if you would like to safe some filament.

Plate Details (3)

0.2 mm nozzle, all plates

Plate 1 · Stratopolis Base

3h 6m 15 g PLA · 6 g PLA · 4 g PLA · 5 g

Plate 2 · Stratopolis ShipBot

1h 6m 5 g PLA · 4 g PLA · 1 g

Plate 3 · Stratopolis ShipTop

59m 4 g PLA · 4 g

Maxwell Base, 0.2mm nozzle, 0.1mm layer, 4 walls

1 plate 1h 44m 8 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, A1 mini, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Detailed print of Maxwell Base using AMS with three colors: • ERYONE Dual Two-Tone PLA Silk Gold & Red Copper • Tinmorry PLA Gold There are two layer-based filament changes in this model that could be done manually, if you don't have an AMS.

Plate Details (1)

0.2 mm nozzle, all plates

Plate 1

1h 44m 8 g PLA · 4 g PLA · 4 g

Dawn City, 0.2mm nozzle, 0.1mm layer, 4 walls

2 plates 7h 1m 35 g PLA

P1S, P1P, A1, H2D, X1E, A1 mini, X1 Carbon, X1, H2D Pro, H2S, P2S, H2C, X2D, A2L

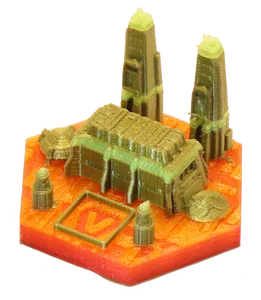

Detailed print of Dawn City using AMS with three colors: • ERYONE Dual Two-Tone PLA Silk Gold & Red Copper • Tinmorry PLA Silver • Bambu PLA Gold There are two versions of the Dawn City, one version that uses layer-based filament changes to save material and one very detailed, hand-colored version that has 41 color changes, but looks better. Beware that this uses a lot of material to flush after each color change. There are seven layer-based filament changes in the layer-based version of this model that could be done manually, if you don't have an AMS.

Plate Details (2)

0.2 mm nozzle, all plates

Plate 1 · Faster, layer-bases color changes

2h 16m 12 g PLA · 4 g PLA · 3 g PLA · 5 g

Plate 2 · More details

4h 46m 23 g PLA · 7 g PLA · 6 g PLA · 10 g

Luna Metropolis, 0.2mm nozzle, 0.1mm layer, 4 walls

1 plate 1h 53m 11 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, A1 mini, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Detailed print of Luna Metropolis using AMS with threecolors: • ERYONE Dual Two-Tone PLA Silk Gold & Red Copper • Tinmorry PLA Silver • Tinmorry PLA Gold There are four layer-based filament changes in this model that could be done manually, if you don't have an AMS.

Plate Details (1)

0.2 mm nozzle, all plates

Plate 1

1h 53m 11 g PLA · 4 g PLA · 4 g PLA · 3 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

See my other posts for the base game and all the expansions.

I used over 20 different rolls of filament color, all the “city” tiles are “metallic” in color (with the exception of Commercial District that is Gold), all the expansions have their own “metallic” color to distinguish them from each other. Note that Phobus Space Haven, Ganymede, Luna Metropolis, Dawn City, Stratopolis, and Maxwell Base are printed WITHOUT any red/brown base filament as all these tiles are not “Martian” and take place on moons and other planets.
Printed on a single extrusion printer, done with multiple layer changes for each tile in many different colors of PLA. I drybrush painted the top of Luna Metropolis and Dawn city just to give the clear filament some contrast, and I needed supports for Stratopolis. It has the "cheater" inlay method of a quick color change after the first layer to get a nice inlay. Thanks for some files that I got the basic ideas from, especially pmoews for the dome. If you 3D print this please post some "likes" and makes, and if you really like it although not at all required, a BOOST would be nice to help with my filament costs, I go through a ton test printing everything to get it right. Non Commercial means print away for your own or your friends use but don't be posting for sale on the internet, Thanks. Check out my other posts too!
Gyropolis … takes place on Mars
Dawn City... takes place on Mercury
Luna Metropolis … takes place on the Moon
Stratopolis …takes place in the clouds of Venus
Maxwell Base … takes place on Venus

Venus Next Expansion Tiles
-Maxwell Base .2 SilkBronze, .35 Trans Red, 4.55 Trans Orange, 5.15 Silk Bronze, 11.6 TransYellow, 12.95 Silk Bronze, 25.4 TransYellow
-Dawn City .2 Silver, .35 Dk Grey, 5.0 Silk Bronze, 8.3 TransYellow, 11.9 Silk Bronze, 13.1 TransYellow, 15.05 Silk Bronze, 17.0 TransYellow, 17.9 Silk Bronze
-Stratopolis Base .2 Silk Bronze, .35 Trans Red, 3.65 Trans Orange, 5.0 Silk Bronze
-Gyropolis .2 Silk Bronze, .35 Red/Brown, 4.55 Golden, 5.15 Silk Bronze, 29.75 TransYellow
-Luna Metropolis .2 Silver, .35 Grey, 5.15 Silk Bronze, 7.25 TransYellow, 11.95 SilkBronze, 16.1 TransYellow, 16.45 Silk Bronze

Prelude Expansion Tiles
-Lava Tube Settlement .2 SilkRoseGold, .35 Red/Brown, .95 Silver, 3.5 Golden, 5.45 SilkRoseGold
-Self-sufficient Settlement .2 SilkRoseGold, .35 Red/Brown, 4.7 Golden, 5.0 SilkRoseGold
-Early Settlement .2 SilkRoseGold, .35 Red/Brown, 4.7 Golden, 5.0 SilkRoseGold
-Experimental Forest .2 Green, .35 Red/Brown, 3.65 Golden, 4.7 SilkRoseGold, 7.25 Tree Green
