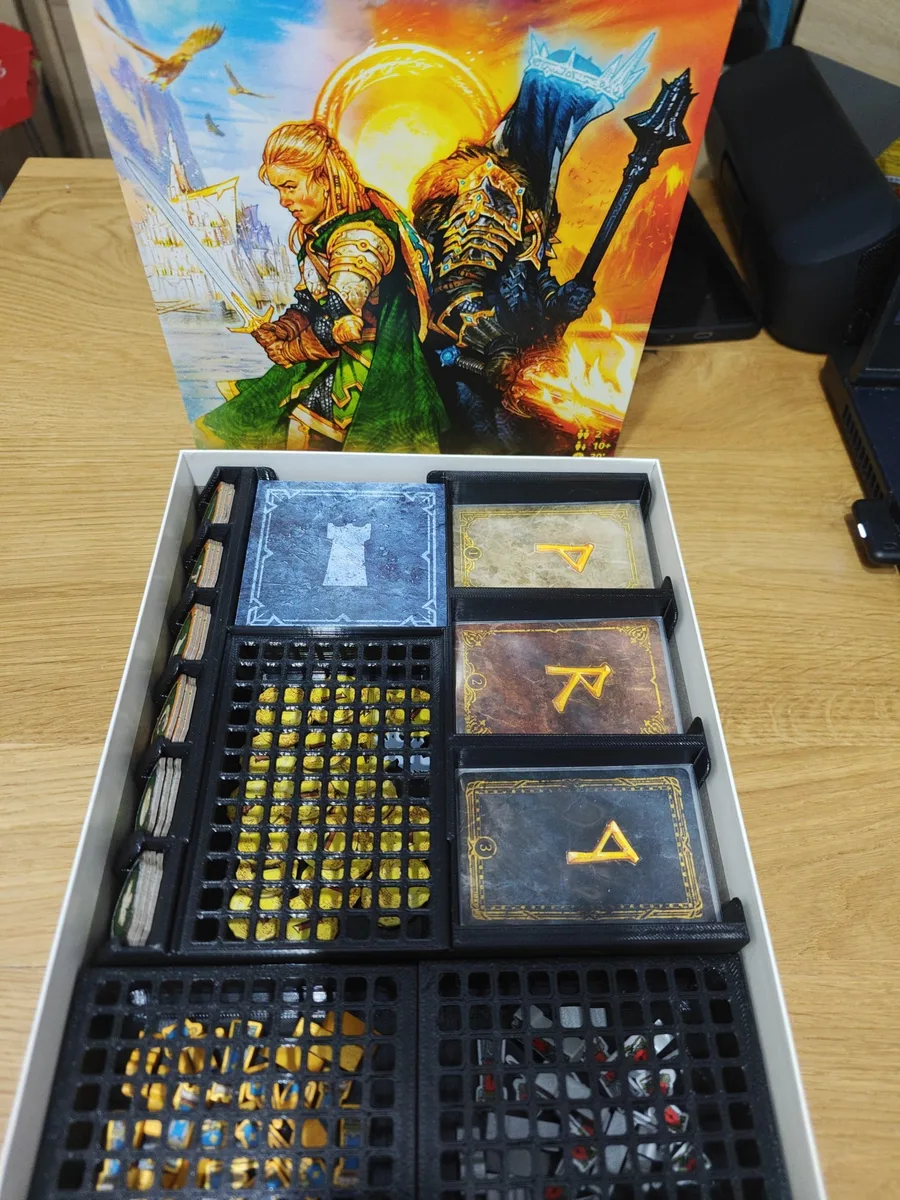

Lord of The Rings: Duel Insert / Organizer

If you want, you can help me with designing inserts by donating here:[https://www.paypal.com/donate/?hosted_button_id=J2YS7MREH8MU8](https://www.paypal.com/donate/?hosted_button_id=J2YS7MREH8MU8)

or joining my club here:[https://www.printables.com/@Sortirus_659392#join.@Sortirus_659392.1094](https://www.printables.com/@Sortirus_659392#join.@Sortirus_659392.1094)

Hello,for those that don't know my ‘insert philosophy’ - I am creating modular inserts that are focused on reducing setup and space on table, filament consumption is not my highest priority, but of course I'm trying to save some material where I can.

### **Important Notes:**

* My prints take a lot of time to print. Why? First of all, to save filament, electricity price is much lower than filament price (at least in my country). Second of all - total weight, if it's to high it can damage the box and our spines :D + weight also influence vertical storage, box can open by itself,

* Clearence for holder covers is very small - 0.2mm horizontal, make sure that you have calibrated printer. In worst case - you could add like 0.2-0.4mm to cover width in the slicer.

### **Supports:**

* **vertical storage**,

* **sleeves** \- for sure 70 microns, I think 100 microns can also fit, but I don't have them, so I can't check. There is plenty space though,

* **promo tiles** \- additionally to 2 promos - there is space for at least 2 more.

### **This insert features:**

* **Player\_Components\_Holder\_x2** - for player components (wooden pieces),

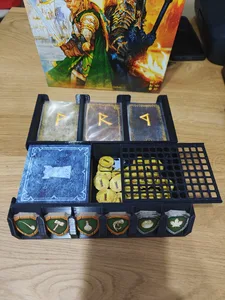

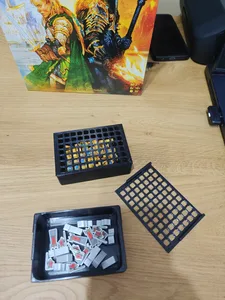

* **Holder**\- for everything else. Built-in storage for coins (with cover) and alliance tokens. Best to take the whole holder out and put it on the table.

### Requirements:

* about 250g (depends on your settings, I printed with 15% gyroid infill, 2 walls, 5 top and 3 bottom layers),

* at least 196mm x 194mm print bed.

### **Instructions:**

**Supports** - no supports required.

* every file ended with xX (for example x16) - print X times (in given example - 16 times).

### **What future holds:**

* I will update the insert if/when expansion comes out.

Enjoy!
