The Anarchy: Player Dashboard and Storage Tray

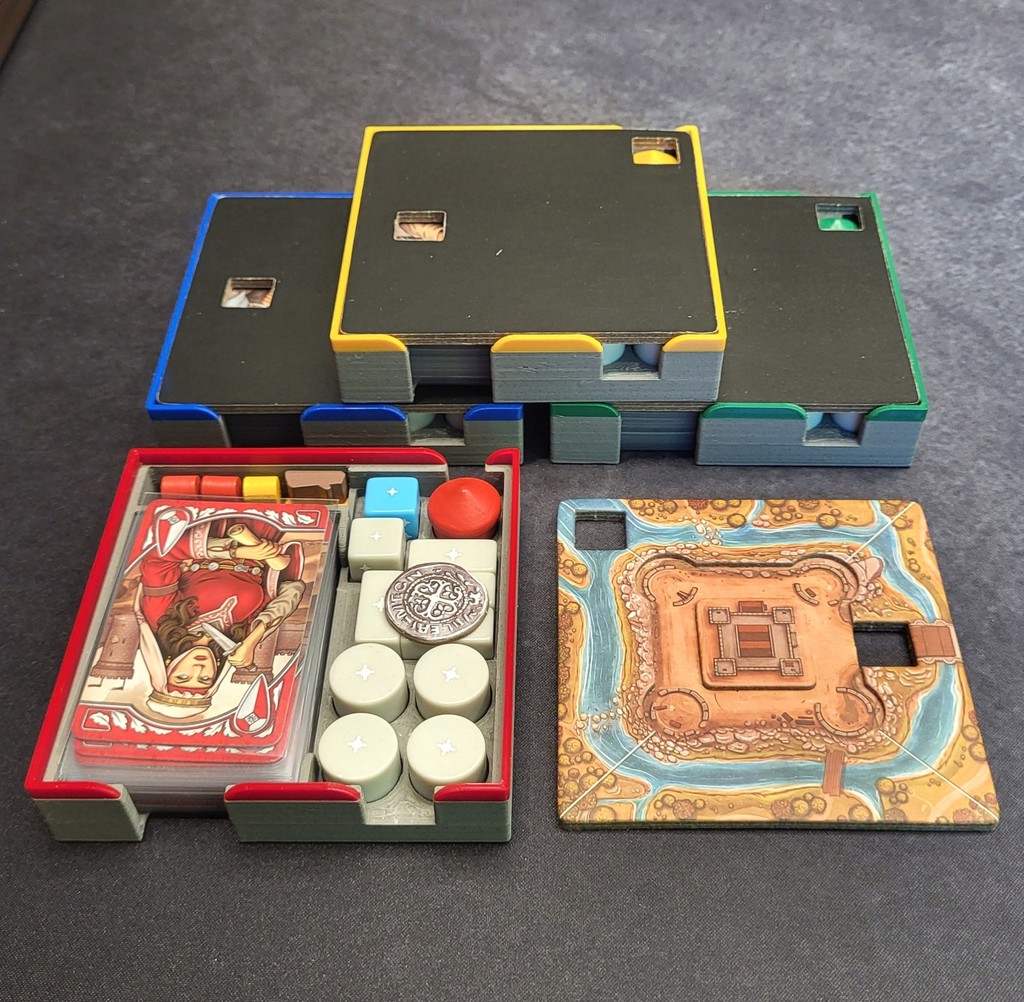

This is a combination player dashboard and storage tray for the board game The Anarchy. The tray holds a player's Domain Cards (sleeved), castle pieces, tent, and Round One starting Workers and Resources listed on the Left Sheet of the Game Pad (one serf, two soldiers, one material, one food, and one silver). The Castle Mount board fits snugly in the top to serve as a lid. The space for the Workers and Resources doubles as a slot to put flipped Domain Cards. All components fit in the box with sleeved cards and no lid lift when four player dashboards are combined with the workers, resources, and token trays (7051079).

Printer Brand:

Creality

Printer:

Ender 5

No

Supports:

No

0.8 mm Nozzle; 0.2 mm Layer Height

Infill:

20%

Hatchbox; eSun

Filament Color:

Cement Gray; Blue, Gold, Fire Engine Red, Pine Green

How I Designed This ===================

The dashboard was designed in Fusion 360. To create the game logo on the underside of the dashboard, a .JPG of the game box was transformed into a black and white design in Gimp and then converted to an .SVG file using Inkscape. The .SVG file was then imported into Fusion 360 for extrusion. The final design was exported as an .STL files into MeshMixer.
