Board Game Insert: Age of Galaxy / Galaktické aliance
Inserts
Free
Designer's Description
Basic info
- Inner box dimensions: [92mm, 145mm, 48mm] Check this if you own different version than Czech ("Galaktické aliance").
- Lid lift: None.
- Sleeves: No.
##
Proposed organization

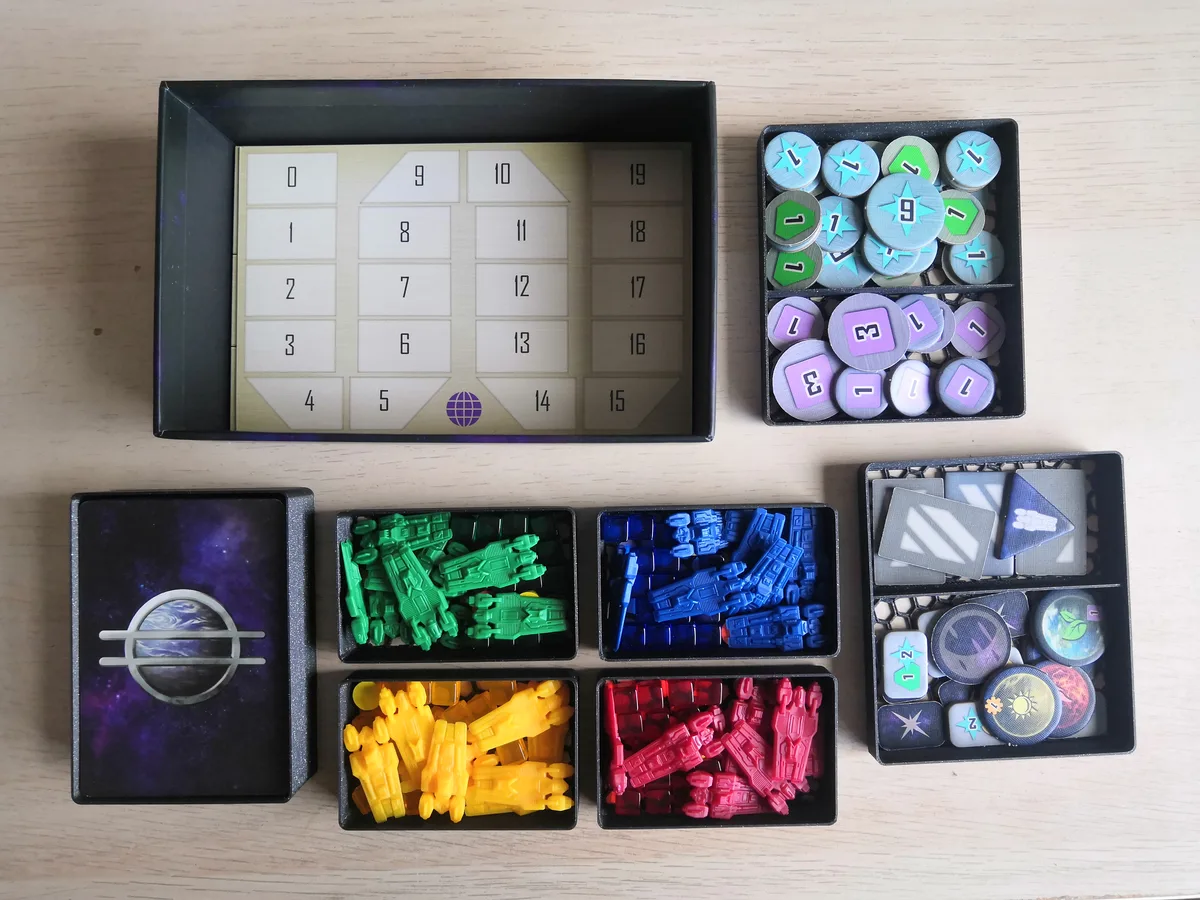

Insert consists of following:
- 4 player piece boxes (stores player cubes, credit and production markers and cruisers)
- 1 card box
- 2 token trays (one for discovery/artifact and influence tokens, the other one for all other tokens)
I store all the big cards freely at the bottom of the box.

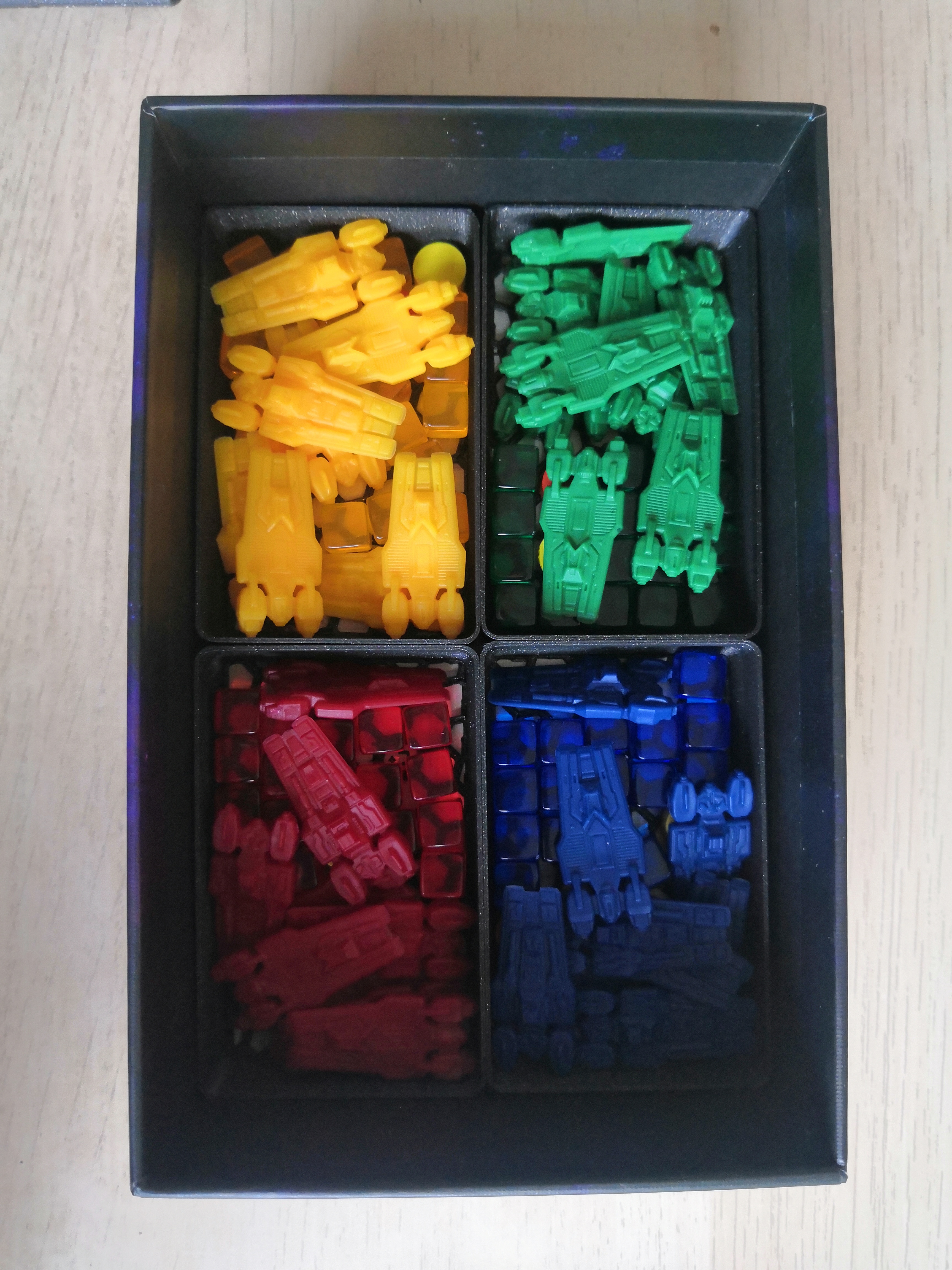

Next layer consists of four player piece boxes.

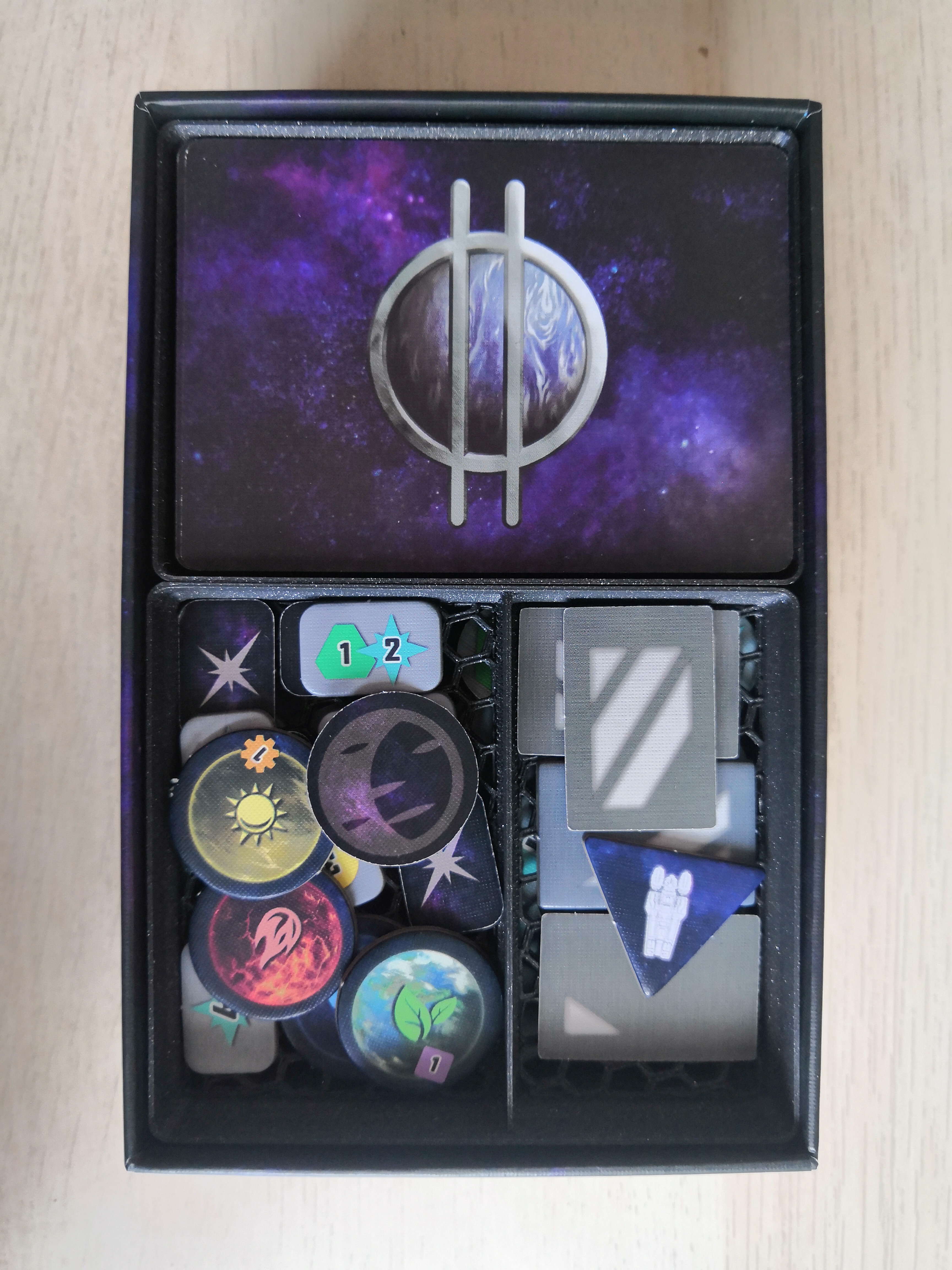

Then, there is a card box side by side with two token trays.
Finally, rulebook goes on top.
Printing instructions
- 1x aog-card-box.stl
- 2x aog-token-tray.stl
- 4x aog-player-box.stl
I printed from PLA. It's possible to print without any top and bottom layers. I prefer Honeycomb, but other infills such as Grid should work as well. This saves both time and the amount of filament used. If you do this, consider increasing infill extrusion width (up to 0.9mm) and infill percentage (up to 25%), to create sturdier bottom.
##
Source code
Full OpenSCAD source code is available on https://github.com/stinovlas/boardgame-inserts .
