Twilight Imperium Clipable Hex with Openlock Clips

for Twilight Imperium: Fourth Edition (2017) Layer by Layer

Stan D

Board Frames & Overlays Free

View on MakerWorld 91 428 Added Jul 5, 24 | Updated Aug 6, 26 Support Stan D by Liking and Boosting their model.

Remix View the original model

Plan Your Print

About 65 g of filament From the designer's print profile

Print Profile (2) 0.2mm layer, 2 walls, 5% infill 2h 34m 65 g PLA

0.2mm layer, 2 walls, 5% infill

2 plates 2h 34m 65 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1

1h 47m 52 g PLA · 52 g

Plate 2

46m 13 g PLA · 13 g

0.2mm layer, 2 walls, 5% infill x 3

1 plate 1h 40m 41 g PLA

A1, X1 Carbon, X1E, P1P, X1, H2D, P1S, H2D Pro, H2S, P2S, H2C, X2D, A2L

Just to speed things up. This is 3 hexes and 9 clips. Fits nicely on the A1 bed.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · Twilight Imperium A1 mini

1h 40m 41 g PLA · 41 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

Hi all,

This is my remix of Twilight Imperium Clipable Hex by NickBowler on Thingiverse with added Openlock clips which fit.

Changes Made

I have resized the Hexes slightly and made them stronger when pulling the hexes apart.

This allows for some push and pull when assembling map and removing Openlock clips and reduces chance of hexes snapping.

I have also added openlock clips on a second plate (24 total: 6 per hex) which fit very snugly (if you wish to make them less tight reprint the clips at 1% smaller.

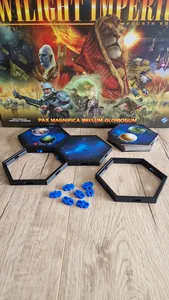

Hexes that can be clipped together using OpenLock clips. The hexes are sized for the Twilight Imperium hexes, so the map can be created and stay in place.

You need a lot of hexes. (Number of hexes depends on how big a game you are playing.) But the ability of the board to stay in place immune from bumps is worth it!

twilight imperium tile game tileholder
