Sky Team Board game insert /w turbulence exp

for Sky Team (2023) Layer by Layer

Inserts Free

View on MakerWorld 521 2,321 Added Mar 26, 25 | Updated Aug 6, 26 Support Svafnir by Liking and Boosting their model.

Plan Your Print 7 makers

✓ Covers Sky Team: Turbulence Expansions this print stores alongside the base game

✓ Stores vertically Stands on its side; contents stay put

About 330 g of filament From the designer's print profile

Print Profile (5) 0.2mm layer, 2 walls, 15% infill 8h 35m 330 g PLA

0.2mm layer, 2 walls, 15% infill

4 plates 8h 35m 330 g PLA

A1, H2D, P1S, P1P, X1 Carbon, X1E, X1, H2D Pro, H2S, P2S, H2C, X2D, A2L

Plate Details (4)

0.4 mm nozzle, all plates

Plate 1 · Tray 1

1h 51m 72 g PLA · 72 g

Plate 2 · Tracks

2h 53m 122 g PLA · 122 g

Plate 3 · Tray 2

2h 11m 85 g PLA · 85 g

Plate 4 · Spacer

1h 40m 51 g PLA · 51 g

Bigger Sleeves + Room for Button and Cockpit Upgrades

4 plates 7h 45m 300 g PLA

P1S, P1P, X1E, H2D Pro, X1 Carbon, X1, H2D, H2S, A1, H2C, P2S, X2D, A2L

The original insert is very well designed, but I ran into 2 issues with it: - No room for sleeved cards. There's already a profile that adds room for sleeves, but it still wasn't enough room for my sleeves either. - Not suitable to fit upgrades like the Cockpick Track Slider and the Upgraded Button This version makes the following changes in order to fix these issues: - Increase the card slot in Tray 1 in order to fit bigger sleeves - Cut down the height of the spacer and the expansion track tray in order to leave enough room for the upgraded cockpit - Increase the height of the kerosene track slot in order to fit the respective upgraded slider

Plate Details (4)

0.4 mm nozzle, all plates

Plate 1 · Tray 1

1h 41m 67 g PLA · 67 g

Plate 2 · Tray 2

2h 79 g PLA · 79 g

Plate 3 · Spacer

1h 22m 41 g PLA · 41 g

Plate 4 · Tracks

2h 42m 113 g PLA · 113 g

A1 mini, for Sleeved Cards

6 plates 13h 31m 310 g PLA

A1 mini, A1, X1 Carbon, X1E, X1, P1P, H2D, P1S, H2D Pro, H2S, P2S, H2C, X2D, A2L

The long trays have been split in half with the Bambu Studio “Cut” tool. The pegs on the large tray may require some sanding to sit flush when assembled, as the pegs have unsupported overhangs. The tray geometry for the sleeved cards was modified within Bambu Studio, so it's not the cleanest but it works. Fits up to 93x62mm.

Plate Details (6)

0.4 mm nozzle, all plates

Plate 1 · Tray 1

2h 58m 67 g PLA · 67 g

Plate 2 · Tray 2

3h 14m 82 g PLA · 82 g

Plate 3

2h 26m 53 g PLA · 53 g

Plate 4

2h 49m 62 g PLA · 62 g

Plate 5

1h 2m 23 g PLA · 23 g

Plate 6

1h 2m 23 g PLA · 23 g

Tray with icons + expansion penguins

2 plates 2h 23m 71 g PLA

A1 mini, A1, P1P, H2D, P1S, X1, X1E, X1 Carbon, H2D Pro, H2S, P2S, H2C, X2D, A2L

Added icons to the tray :) Also, bonus penguins for the expansion.

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1 · Tray 2

2h 7m 68 g PLA · 68 g

Plate 2 · Penguins (expansion)

16m 3 g PLA · 3 g

Colored logo lid and tray, 0.2mm layer, 2 walls, 15% infill

1 plate 1h 32m 54 g PLA

P1S, H2C, P1P, H2D Pro, A1 mini, P2S, A1, X1, X1E, X1 Carbon, H2S, H2D, X2D, A2L

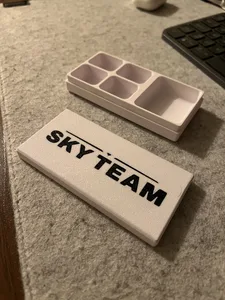

Two-color Sky Team logo on the lid

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

1h 32m 54 g PLA · 52 g PLA · 2 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

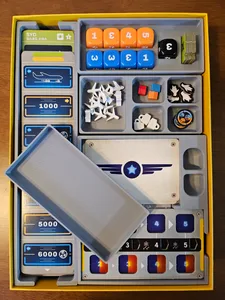

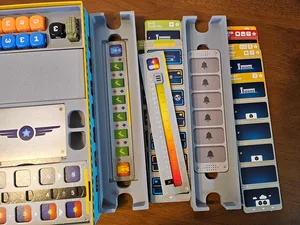

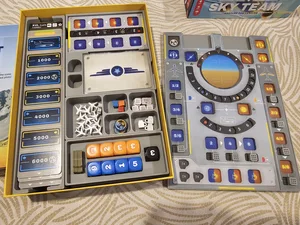

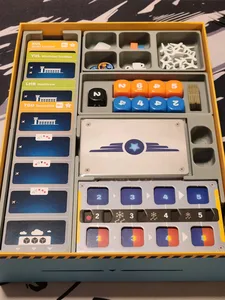

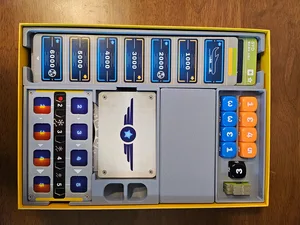

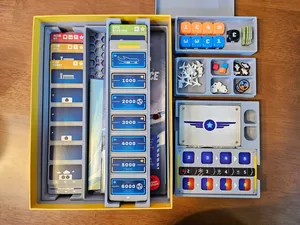

This insert is designed to store both the Sky Team base game and the Turbulence expansion together.
The box lid closes flush without lifting, ensuring a neat and tidy fit.
It's also stable for vertical storage.

Based on the original model by Ivanov tae ,
