Organizer/Insert for Arcs board game base edition

UPDATE July 3, 2024: The tray for the initiative and chapter markers was too high, resulting in the player board not sitting flat. I had already reduced the height of that tray, but I forgot to upload the updated version. I have now replaced the existing model with the new one. Unfortunately, due to the thickness of the chapter marker, it's still a tad tall for the space, so while this new tray will be better, it's not perfect. That lead me into a second change; I have uploaded a V2 of the player trays without the hex grid. That shaves off 1mm of height for where the various resource, chapter, etc marker trays sit, so overall things should fit better with the player boards.

=================================================================

This is an organizer/insert for the base version of Arcs, by Leder Games. I wanted to design something that looked like it was perhaps an alien artifact, thus many of the pieces are rather unusually shaped. When fully assembled with all game components, it should allow for vertical storage with no lid lift, and has room for the cards in the Leaders & Lore Pack. NOTE: This will not hold sleeved cards.

Print each part once, except for the player tray, of which you would print four of either V1 or V2. My print settings were as follows:

Supports: No
Infill: 10% cubic
Print outer perimiters first (this helps ensure all items fit together properly)
Print temp: 220°C
Bed temp: 60°C
Filament: Elegoo Rapid PLA+ red, yellow, and white. VoxelPLA PLA+ in clear.

Putting it all in the box
Put two player trays, with all ships, agents, cities, starports, and power cubes, side-by-side in the bottom of the box, as shown:

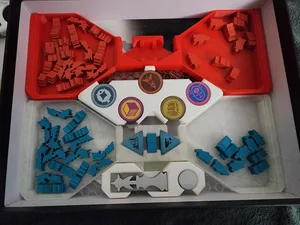

Put the paths & zero marker tray in the middle space, and the ambition & out-of-play markers tray in the lower space like so:

Put the two player boards on top of their respective player trays:

Add the next two player trays, resources tray, and initiative & chapter marker trays as shown:

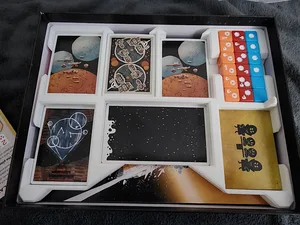

Place the player boards on their associated player tray, then put the cards & dice tray on top:

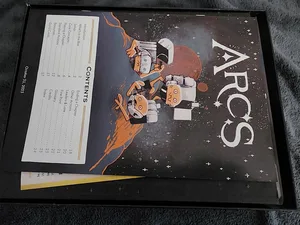

Finally, place the board on top, and then the manual and guide sheets:

This should allow for vertical storage without any lid lift.
