Gridfinity 4x5 Hobby Paint Bottle Holder

for Tabletop Accessories Layer by Layer

toddbg

Organizers Free

View on MakerWorld 152 428 Added Oct 3, 24 | Updated Sep 5, 26 Support toddbg by Liking and Boosting their model.

Plan Your Print

About 233 g of filament From the designer's print profile

Print Profile (3) 0.2mm layer, 4 walls, 15% infill 11h 31m 233 g PLA

0.2mm layer, 4 walls, 15% infill

1 plate 11h 31m 233 g PLA

A1, P1S, P1P, X1 Carbon, X1E, X1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

11h 31m 233 g PLA · 233 g

Individual Rows,Lower Angle,0.2mm layer,4 walls,15% infill

1 plate 3h 27m 82 g PLA

X1 Carbon, P1S, P1P, X1, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Separated the rows of pots and gave them a lower angle for more shallow drawers.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

3h 27m 82 g PLA · 82 g

Faster print, no lip, flat base

1 plate 7h 29m 178 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

I reduced the print time by almost 1 hour, by removing the lip around the Gridfinity base plate. The lip was not needed as the plate was not stackable, and it hindered the utilization of the empty space between the bottles. I also reduced the infill a bit and changed the pattern to Gyroid.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

7h 29m 178 g PLA · 178 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

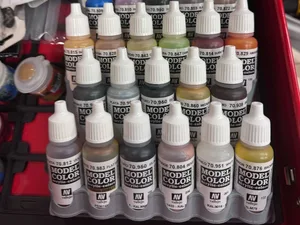

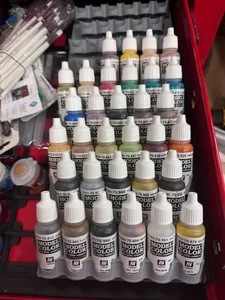

This is a custom-designed 4x5 Gridfinity tray, perfect for storing 28 hobby paint bottles in a compact, organized fashion. The tray is specifically designed to fit inside Harbor Freight US General tool chest drawers with a 9U height (including lip), making it ideal for the shorter drawers.

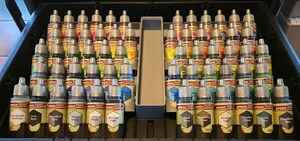

The bottles are angled for easy viewing and access, while still accommodating the height limitations of the drawer. This design allows for efficient use of space, keeping your paints neatly organized and readily accessible.

The design is inspired by and adapted from the original bottle holders created by Warlogh . Special thanks to the creator for the foundational design!

If you're looking to maximize your tool chest storage and keep your paints within reach, this model is a great solution!

gridfinity vallejo paint holder army painter paint bottle drawer organizer
