FLATIRON - Set of inserts and boxes for the board game published by LUDONOVA. (V2)
Insert set for the FLATIRON base game
IMPORTANT: If you like the project, please put a Like. If you have printed it, please give me feedback and put a note *****, please, please.
The order of storage is as follows:
- The base for the storage of the 3 trays and its protection
- The box for the columns and its lid
- The cup for newspapers and thumbs with its lid
- The parts dispenser and its lid. There is room to put the metal pieces of Flatiron and the fabric pouch.
- The box for the floors and the player pawns with the lid
- The box for the cards with sleeves and the lid.
Lists and organization of the different boxes:
- 11: Base for holding the 3 trays. I cut the tray in 2 so I could print it.
- 12: Protection for the trays. I split the board in 2, making a dovetail, centered in the thickness. The dovetail has a thickness of 2mm, a depth of 2.4 and an inclination of 85. The clearance is 0.2mm. The 2 pieces fit in force, if necessary, play with the cutter or file. The 3mf file is for information, to be seen according to the machines
- 21 / 22: Storage box for the columns and its lid. To put on the gaming table.

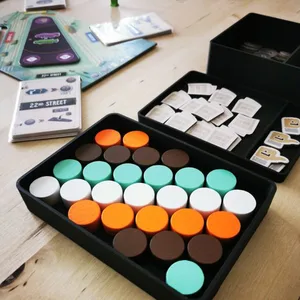

- 23 / 24 : Cup for the distribution of newspapers and thumbs with its lid. To put on the gaming table.

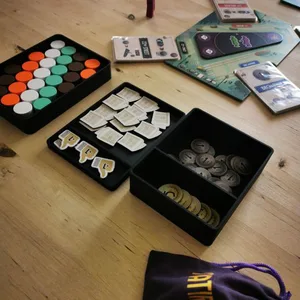

- 31 / 32 : Cup for the distribution of coins and its lid, To be put on the game table.
- 41 / 42 : Storage box for floors and player pawns with its lid

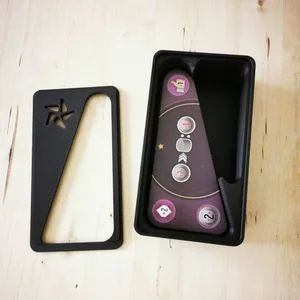

- 51 / 52 : Storage box for cards with sleeves and lid.

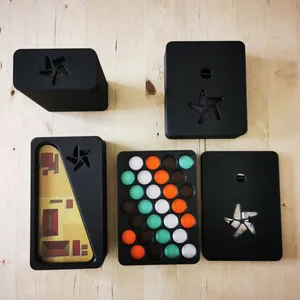

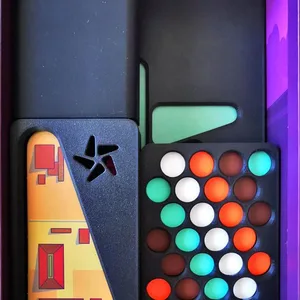

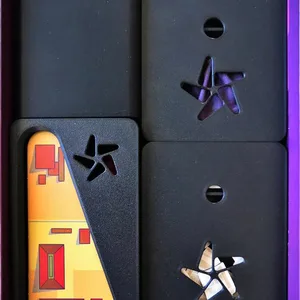

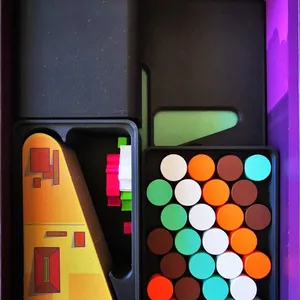

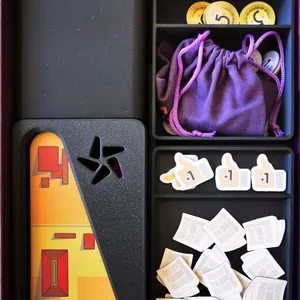

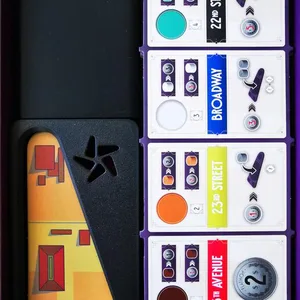

I'll let you look at the attached photos.
Please contact me for any clarification.
Good game.
Translated from French - show original
Set of Inserts for the FLATIRON Base Game
IMPORTANT: If you like this project, please give it a "Like." If you've printed it, please give me some feedback and rate it *****, PLEASE, PLEASE.
The storage order is as follows:
- The base for storing the 3 boards and its protective cover
- The box for the columns and its lid
- The tray for the newspapers and thumbs with its lid
- The coin dispenser and its lid. There’s room to store the Flatiron metal pieces and the fabric pouch.
- The box for the levels and player pawns with its lid
- The box for the cards with sleeves and its lid.
Lists and organization of the different boxes:
- 11: Base for holding the 3 game boards. I cut the game board in half so I could print it.
- 12: Protection for the game boards. I split the tray into two pieces, creating a dovetail joint centered along the thickness. The dovetail joint is 2 mm thick, 2.4 deep, and has an angle of 85. The selected clearance is 0.2 mm. The two pieces fit tightly; if necessary, use a utility knife or a file to adjust them. The 3MF file is for reference only; adjust as needed based on your machine
- 21 / 22: Storage box for the columns and its lid. Place on the game table.
- 23 / 24: Bowl for distributing newspapers and thumbs, with its lid. Place on the game table.
- 31 / 32: Bowl for distributing coins, with its lid. Place on the game table.
- 41 / 42: Storage box for the levels and player pieces, with its lid.
- 51 / 52: Storage box for the cards with sleeves, with its lid.
Please take a look at the attached photos.
Please contact me if you have any questions.
Enjoy the game.
