Azul: Stained Glass of Sintra - Board Tray

for Azul: Stained Glass of Sintra (2018) Layer by Layer
trevor.florence
Inserts Free
View on MakerWorld 25 55 Added Jan 11, 24 | Updated Sep 13, 26 Support trevor.florence by Liking and Boosting their model.
Also Found On Printables 10 Trevor Florence
Plan Your Print
About 73 g of filament From the designer's print profile
Print Profile 4h 40m 73 g PLA
What it takes
4 plates 4h 40m 73 g PLA
A1, H2D Pro, H2D, H2S, P2S, H2C, X2D, A2L
0.16mm layer, 2 walls, 15% infill; Added 4 plates - one for each color. Credits to the original designer.
Plate Details (4)
0.4 mm nozzle, all plates
Plate 1
1h 10m 19 g PLA · 19 g
Plate 2
1h 10m 18 g PLA · 18 g
Plate 3
1h 10m 18 g PLA · 18 g
Plate 4
1h 10m 18 g PLA · 18 g
Designer's Description

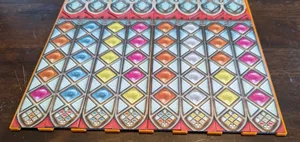

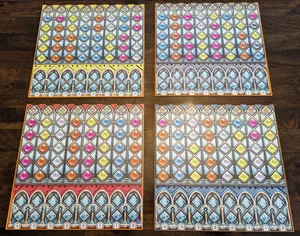

I got tired of the pattern strips sliding around so designed a tray to hold them. The OpenSCAD code used to create them is also included. If you want to make the holes in the tray smaller, adjust `cavity_padding` in the code and regenerate. Also consider making `tray_bot_h` larger if you want the base of the tray to be thicker. As included here, I found the resulting print a touch flimsy but they have worked well!

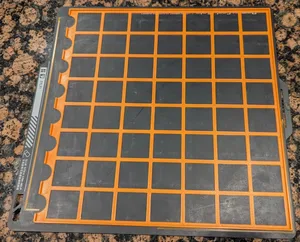

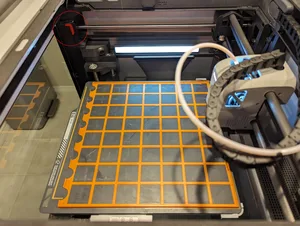

At 245 mm x 239 mm, this is a large print. On my BambuLab X1C, I had to follow the below instructions to utilize the full print bed.

https://wiki.bambulab.com/en/knowledge-sharing/print-volume-limitations#how-to-print-using-the-full-build-volume
