Red Rising - Organizer
Inserts
Free
Plan Your Print
Sign in
to track this print from Want to Printed.
✓ Fits sleeved cards
✓ Fits premium sleeves
Thick 100+ micron sleeves, not just standard ones
✓ No lid lift
The box opens and closes without lifting the insert out
✓ Stores vertically
Stands on its side; contents stay put
✓ Uses magnets
Needs magnets you buy separately; check the description for sizes and counts
✓ Optional multicolor profile
The designer also offers a multicolor way to print this (an MMU/AMS profile or per-color parts)
Designer's Description

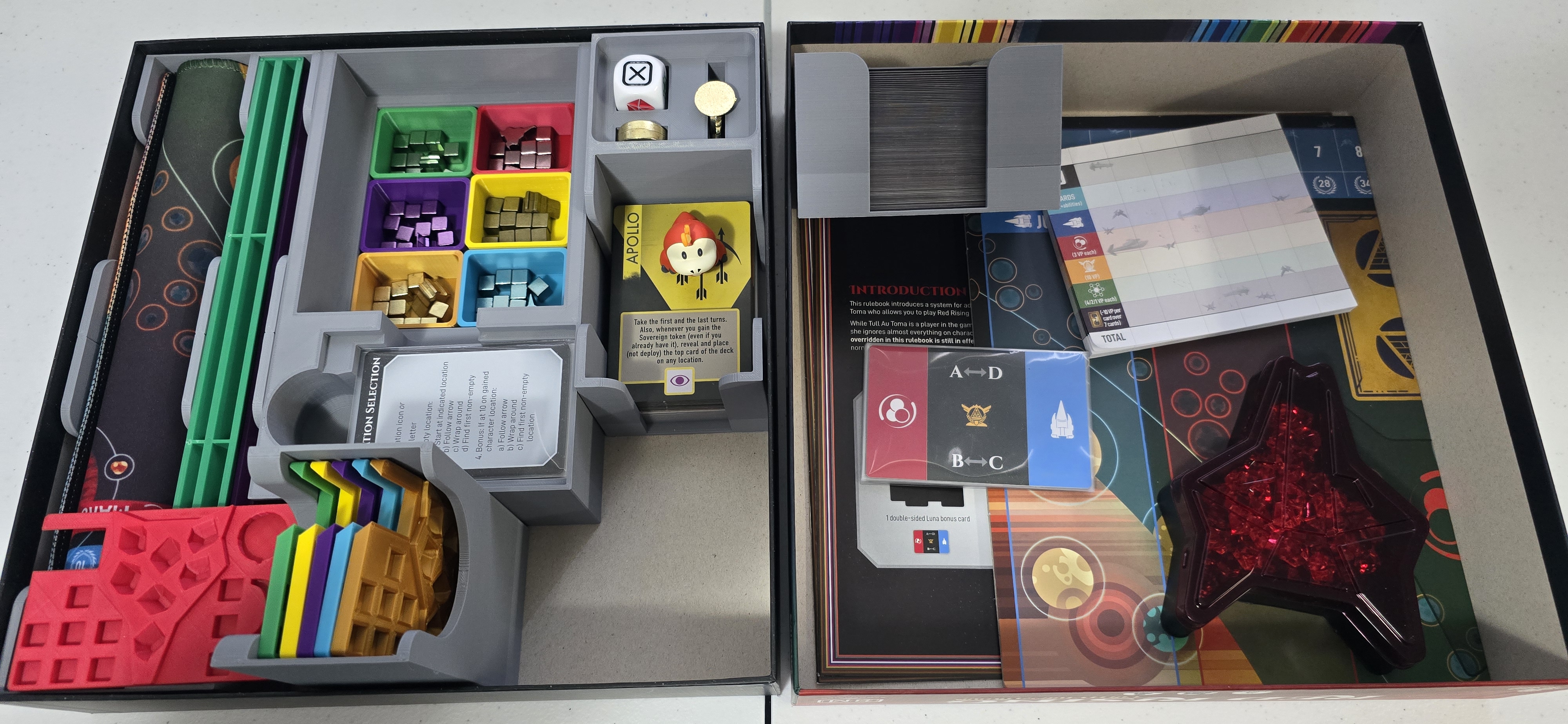

Red Rising Boardgame - 3D Insert and Organizer
Notes:
- No Supports necessary.
- Suggested Settings:
- 20% Cubic Infill.
- 3 Walls
- 5 Tops
- 3 Bottoms
- This Insert is Designed to hold the Optional Neoprene Playmat and Standard Board.
- The Left and Right Pieces have optional holes for Optional 8mm (Diameter) X 2mm Round Neodymium Magnets and 4mm (Diameter) X 2mm Round Neodymium Magnets. (These are not required but work well.) 4 of each Needed.
- Not all of the Cards Fit in the “RR_Table_Board_Card_Horder_v0” Place the Extras in “RR_Box_Card&Bitd_Holder_v0”. By the Time you deal the Starting hands, the Table Holder will hold the rest.
- Card Stand Addition: I have modeled and added the Card Stands that are next to the play mat. In the Folder you will find a Whole one, and One Cut in Half with Half Pins to hold it together. Prin 2 of Each Pin. I find that this with a touch of CA Glue hold together well.
Credits Due:
- I found a Piece Designed By ThoxicThox for Holding your Card Tray Upright and holding your player bits. I designed my insert with the Idea of utilizing the PlayerBoard Created by ThoxicThox.
- Link to Red_Rising_pBord_v1.stl: https://www.thingiverse.com/thing:5029978/files
With this insert, I have provided both the STLs and my Personal Bambu .3mf for how I printed it. I hope it helps. If you have any questions please do not hesitate to ask. I am always happy to help.
Print the following for Organization:
1x RR_Board&Card_Holder_Left_v0
1x RR_Board&Card_Holder_Right_v0
1x RR_Box_Card&Bitd_Holder_v0
1x RR_Misc_Box_v0
6x RR_Player_Bits_v0 (One for Each Color)
1x RR_Stabilizer_Box_v0
1x RR_Table_Board_Card_Horder_v0
I designed this to be storable both flat on the bottom and sideways in a Kallax.
