Rotating Card Display

Card & Tile Holders Free

View on MakerWorld 621 1,117 Added Sep 16, 24 | Updated Aug 30, 26 Support wuboo by Liking and Boosting their model.

Plan Your Print

About 447 g of filament From the designer's print profile

Print Profile (5) PSA Hex Display - 0.2mm layer, 2 walls, 15% infill 11h 32m 447 g PLA

PSA Hex Display - 0.2mm layer, 2 walls, 15% infill

6 plates 11h 32m 447 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Plate Details (6)

0.4 mm nozzle, all plates

Plate 1 · Base

46m 25 g PLA · 25 g

Plate 2 · PSA Display

4h 57m 152 g PLA · 76 g PLA · 76 g

Plate 3 · PSA Display Top

1h 32m 77 g PLA · 77 g

Plate 4 · PSA Stackable Top

1h 39m 79 g PLA · 79 g

Plate 5 · PSA Stackable Top HOT SWAP

1h 40m 79 g PLA · 79 g

Plate 6 · Base HOT SWAP

1h 35 g PLA · 35 g

PSA Hex Magnet Display - 0.2mm layer, 2 walls, 15% infill

4 plates 9h 9m 350 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Instead of pegs to mount the tops, this design uses D5x3mm magnets to connect the top to the display.

Plate Details (4)

0.4 mm nozzle, all plates

Plate 1 · PSA Display

4h 54m 151 g PLA · 75 g PLA · 76 g

Plate 2 · PSA Display Top

1h 35m 83 g PLA · 83 g

Plate 3 · PSA Stackable top HOT SWAP

1h 37m 79 g PLA · 79 g

Plate 4 · Base HOT SWAP

1h 4m 37 g PLA · 37 g

One-Touch Hex Display - 0.2mm layer, 2 walls, 15% infill

4 plates 8h 26m 337 g PLA

P1S, X1, X1E, H2D, X1 Carbon, P1P, A1, H2D Pro, H2S, P2S, H2C, X2D, A2L

Plate Details (4)

0.4 mm nozzle, all plates

Plate 1 · One-Touch Display

4h 12m 149 g PLA · 81 g PLA · 68 g

Plate 2 · One-Touch Display Top

1h 30m 74 g PLA · 74 g

Plate 3 · One-Touch Stackable Top HOT SWAP

1h 37m 76 g PLA · 76 g

Plate 4 · Base HOT SWAP

1h 8m 38 g PLA · 38 g

BGS Hex Display - 0.2mm layer, 2 walls, 15% infill

7 plates 18h 20m 769 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Plate Details (7)

0.4 mm nozzle, all plates

Plate 1 · Base

46m 25 g PLA · 25 g

Plate 2 · BGS Autograph Display

5h 18m 202 g PLA · 87 g PLA · 115 g

Plate 3 · BGS Standard Display

5h 21m 204 g PLA · 87 g PLA · 117 g

Plate 4 · BGS Display Top

1h 54m 99 g PLA · 99 g

Plate 5 · BGS Stackable Top

2h 1m 102 g PLA · 102 g

Plate 6 · BGS Stackable Top HOT SWAP

2h 1m 102 g PLA · 102 g

Plate 7 · Base HOT SWAP

1h 35 g PLA · 35 g

SGC Hex Display - 0.2mm layer, 2 walls, 15% infill

6 plates 13h 32m 592 g PLA

P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Plate Details (6)

0.4 mm nozzle, all plates

Plate 1 · Base

46m 25 g PLA · 25 g

Plate 2 · SGC Display

5h 36m 216 g PLA · 94 g PLA · 122 g

Plate 3 · SGC Display Top

1h 59m 104 g PLA · 104 g

Plate 4 · SGC Stackable Top

2h 6m 106 g PLA · 106 g

Plate 5 · SGC Stackable Top HOT SWAP

2h 6m 106 g PLA · 106 g

Plate 6 · Base HOT SWAP

1h 35 g PLA · 35 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

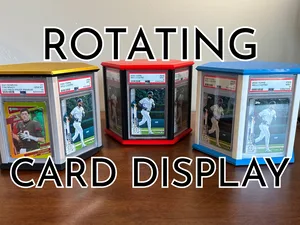

ROTATING CARD DISPLAY

BGS Hex Display

There are two designs: BGS Autograph & Standard. The autograph BGS slab is bigger than the standard BGS slab.

PSA Hex Display

There is one design that will fit both the original and new slab dimensions.

SGC Hex Display

This will also fit HGA slabs, they are just slightly smaller so they are a little loose, but still fit just fine.

One-Touch Hex Display

This will fit most standard one-touch cases.

If you would like to sell these commercially, subscribe to my membership!
Membership

Boost Me Drop a boost if you like the design! Thanks for the support.

Display Features

Display 6 cards on the outside
Store 8, 10, or 12 cards on the inside depending which design you print
Smooth 360 degree rotation using 608 bearing on the bottom of each display
Stack up to 3 display's (not sure if it would be stable enough to do more, let me know in the comments if you try)
Hot swap parts require a 8x3mm magnet

Assembly Instructions

Remove any supports

Insert 608 bearing in the bottom of the card display

Connect base to the 608 bearing on the bottom of the card display

Insert your cards and put on the lid. Enjoy!

If you are stacking, glue the stackable insert into the stackable top then simply add your extra card display on top

UPDATES:

4/17/2025

Added One-Touch Hex Display. This will fit most standard one-touch cases. Shout out to @tripleddd for helping test the design and for providing all of the photos for the one-touch display!

1/21/2025

Added PSA Hex Magnetic Display. The ONLY change was instead of pegs, it uses D5x3mm magnets to connect the top to the display. I don't recommend using this if you plan on stacking displays, but will work great for single displays.

11/17/2024

Added SGC, BGS Autograph, & BGS Standard displays
All three designs now have the hot swap feature if you want to effortlessly switch between stacked and single displays

9/23/2024

Increased height of stackable bearing insert to prevent scraping and provide a smoother rotation
Increased thickness of base for more stability and height of base bearing insert to prevent scraping and provide a smoother rotation

9/19/2024

I had someone inform me that the newer PSA slabs are slightly thicker compared to the OG PSA slabs. Each slot on the outside and inside is now 7mm in thickness. This design should work for both the OG & newer PSA slabs. Thanks for the feedback!
