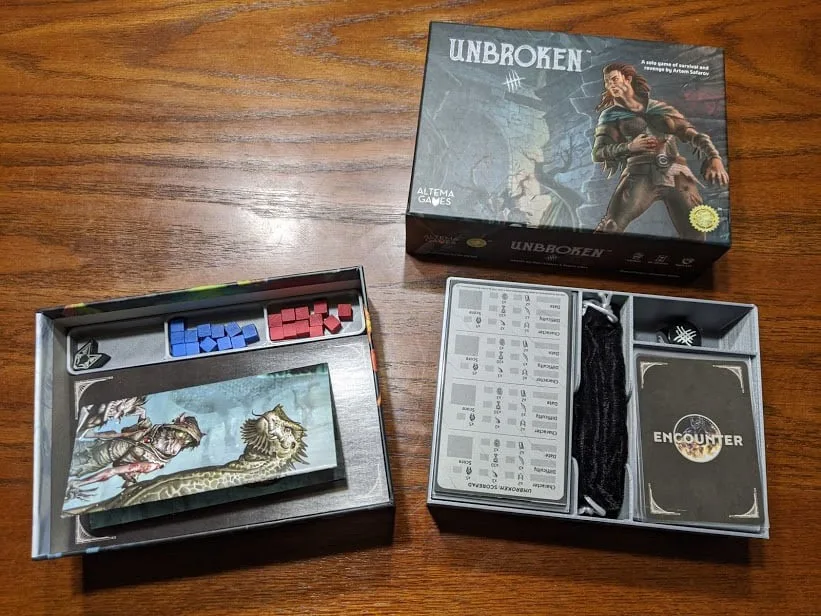

Unbroken Game Organizer (Cards in Sleeves)

One thing I have found with many of the box organizer designs available is that they don't have extra room if your cards are in sleeves.

Which is pretty much a self inflicted curse of having a high level of OCD and having to have all cards in sleeves. (Well, almost all the cards, I'm not sure a sleeve large enough for the monsters exists for this set.)

This design is sized for Fantasy Flight Games sleeves:
* Standard Card Game Size = Color Code Gray
* Sleeves are 66.5mm wide x 94mm tall

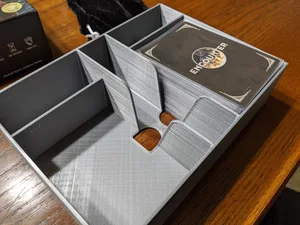

* The tray compartment are 69 x 97
* The weapon and character cards are Tarot Size = Color Code Orange.

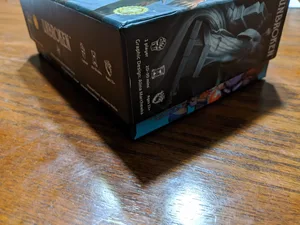

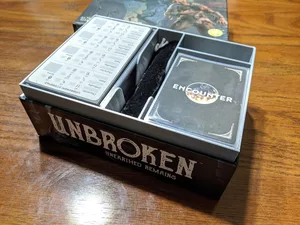

To accommodate the increased stack height of the cards you will notice this divider is taller than the box, it lifts the lid 15mm.

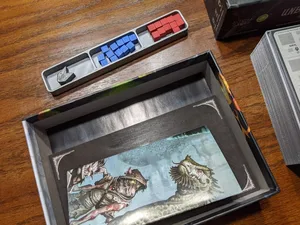

I was inspired by PengLord's design, I reused a lot that design, but since the tray is taller than the box, I didn't have a secure way to keep the Instructions or monster cards in place on top of the tray. Therefore, I reorganized the instructions, monster cards, and poster to under the tray. If you don't keep the poster in the box the insert tray will be about 3mm too tall to nicely level everything under the divider.

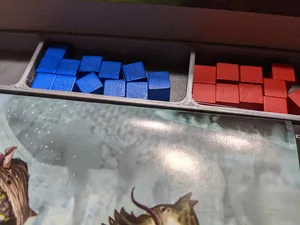

I have also included a spacer that is sized for not having the poster under the tray (shorter by 3mm), it also does not have a bottom in it. The game token cubes are 8mm tall and if there is a bottom in it then the tokens would be taller than the tray.

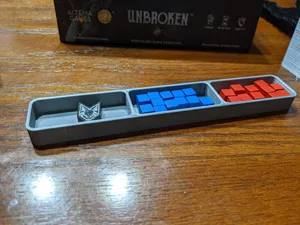

The tokens can of course be placed in one of the extra spaces in the main tray and do not have to be placed in the small lower tray as shown in the pictures.
