D&D initiative tracker box

Plan Your Print
Optional multicolor profile The designer also offers a multicolor way to print this (an MMU/AMS profile or per-color parts)
About 148 g of filament From the designer's print profile
Print Profile (3) 0.2mm layer, 2 walls, 15% infill - AMS (2color) 9h 32m 148 g PLA
0.2mm layer, 2 walls, 15% infill - AMS (2color)
3 plates 9h 32m 148 g PLA
A1 mini, X1E, X1 Carbon, H2S, H2D, A1, H2D Pro, P1P, H2C, X1, P2S, P1S, X2D, A2L
Plate Details (3)
0.4 mm nozzle, all plates
Plate 1 · base-plate
3h 35m 83 g PLA · 81 g PLA · 2 g
Plate 2 · head and tracker(sec. optional)
17m 3 g PLA · 3 g
Plate 3 · 12x rings (enable prime tower)
5h 40m 62 g PLA · 55 g PLA · 7 g
NO-AMS - Mashed letters into .slt files
3 plates 7h 3m 130 g PLA
A1 mini, H2D Pro, H2C, X1E, P1P, P2S, A1, H2S, X1 Carbon, X1, P1S, H2D, X2D, A2L
Profile with “Mashed Boolean”, all modifiers applied to parts. Stl files now contains letters. This profile created for non-BambuStudio slicers.
Plate Details (3)
0.4 mm nozzle, all plates
Plate 1 · base-plate
3h 24m 84 g PLA · 84 g
Plate 2 · head and tracker(sec. optional)
17m 3 g PLA · 3 g
Plate 3 · 12x rings with holder
3h 22m 43 g PLA · 43 g
0.2mm layer, 2 walls, 15% infill - NO AMS
3 plates 7h 4m 130 g PLA
A1 mini, H2D, X1, H2S, X1 Carbon, P2S, H2D Pro, A1, P1S, X1E, H2C, P1P, X2D, A2L
Variant without AMS, plates separated for one color print. Colored Characters replaced by Cut (best to post process with pen :) ) Sorry for the image, it is from AMS, i don't have variant printed wihout AMS (or sent me your prints :) )
Plate Details (3)
0.4 mm nozzle, all plates
Plate 1 · base-plate
3h 24m 84 g PLA · 84 g
Plate 2 · head and tracker(sec. optional)
17m 3 g PLA · 3 g
Plate 3 · 12x rings with holder
3h 22m 43 g PLA · 43 g
As sliced by the designer. Your printer, filament, and settings may change these numbers.
Designer's Description

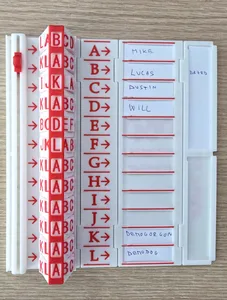

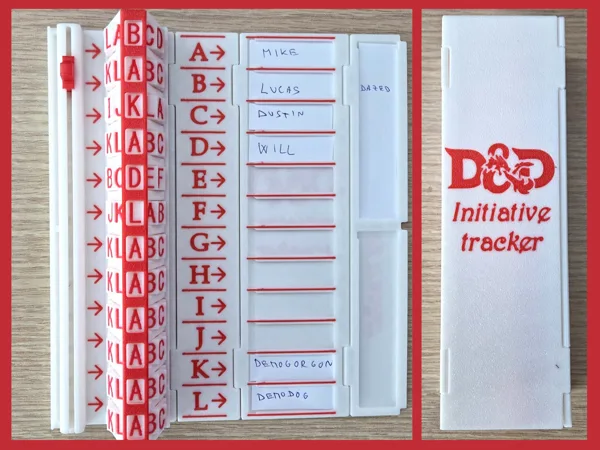

Initiative tracker for Dungeons & Dragons like games for 12 players/monsters .
Using rotation rings and switch for selecting current player.
Foldable into pocket box.

Contains 12x inserts for Name papers (player/monster names) with dimension 38*12.5mm
Contains 2x inserts for Notes (player states...) with dimension 18.5*80mm

Using:
1) game initial - setup names (put player names into the inserts), each player has unique character (A-L)
2) roll the initiative -> configure the rings with the correct order A-L (base on player initiative)
3) put the Tracker switch counter to the top (first initiative)
4) follow the Ring initiative order, don't forget to switch Tracker to next when player finished
5) goto 4 :)

Printable on A1 Mini as full desk plate (simple click to fold), NO SUPPORT required
Variant with AMS (two colors or customize). Minimal flushing, except the Rings plate, due the vertical characters printing.
Variant with NO AMS replace color with 0.4mm cuts.

Variant “ NO-AMS - Mashed letters into .slt files” contains ‘Mashed Boolean’ cuts.

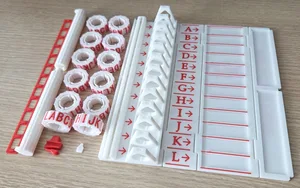

Simple assembly in few minutes.

Note:

I would recommend to use little bit of Oil (or other lubricant like printer one) on the zip rail for smooth clicks!
