Covenant Insert with map grid

DE:
Dies ist ein Insert für das Spiel Covenant. Das insert ist so aufgebaut, dass es den Spielaufbau beschleunigt und Teile des inserts während des Spiels verwendet werden können.

Eine kurze Übersicht über unterstützte Funktionen:
- Unterstützt Karten mit und ohne Hüllen (getestet mit Paladin Percival-Hüllen, die 90 Micron dick sind)
- Spielertabletts mit sämtlichem Spielmaterial
- Horizontale und vertikale Lagerung möglich
- Das Basisspiel und alle derzeit verfügbaren Promos
- Unterstützt schnelles Spielaufbau
- 💡 Intelligenter Einsatz: Der Einsatz erweitert das Spiel, da einige Teile des Einsatzes während des Spiels verwendet werden können.

Zusätzlich zu den Trays, welche die Spielinhalte lagern habe ich ein Grid für die hall tiles erstellt. Dies verhindert, dass man während des Spielens beim umdrehen der Hall Tiles die restlichen Hall tiles verrückt. Um auch drucke auf kleinen Druckbetten zu ermöglichen, besteht dies aus 6 Elementen, welche mit Magneten ausgestattet und dadurch zusammengehalten werden können. So kann man nach Belieben ein Grid für die 1-2 Spieler Seite und das erweiterte Grid für 3-4 Spieler zusammensetzen.
Darüber hinaus wird sämtliches Spielermaterial eines Spielers in einem entsprechenden tray gelagert, welches mit dem Emblem der entsprechenden Spielerfarbe gestaltet ist.
Das tray hat auch noch etwas Platz über, für zukünftige Erweiterungen, sofern noch welche kommen werden.

Für alle, die ein Bambulab besitzen: Es gibt eine .3mf-Datei mit vorgefärbten Schalen. Diese Datei ist druckfertig.

Ich empfehle dringend, die Magnete zu verwenden, um das Gitter zusammenzuhalten, oder es zu verkleben. Wenn Sie die Magnete verwenden möchten, verwenden Sie bitte RUNDEN Magnete mit einem Durchmesser von 2 mm und einer Höhe von 2 mm. Ich habe diese Magnete verwendet:
https://www.supermagnete.de/scheibenmagnete-neodym/scheibenmagnet-2mm-2mm_S-02-02-N

Ich hoffe, Ihnen gefällt der Einsatz. Wenn Sie etwas stört oder Sie Ergänzungen oder Änderungen vornehmen möchten, können Sie sich gerne an mich wenden. Ich bin offen für jedes Feedback und nehme gerne sinnvolle Änderungen vor.

EN:

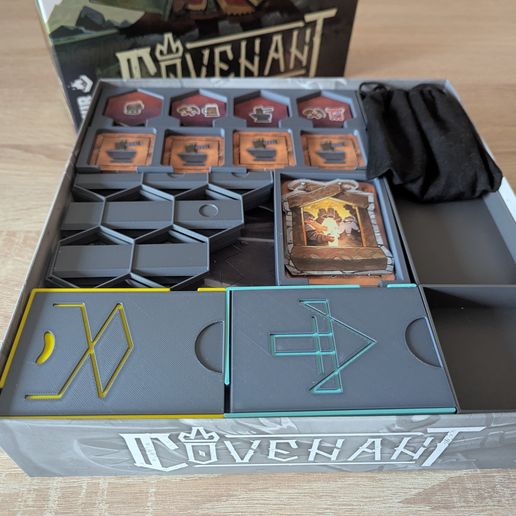

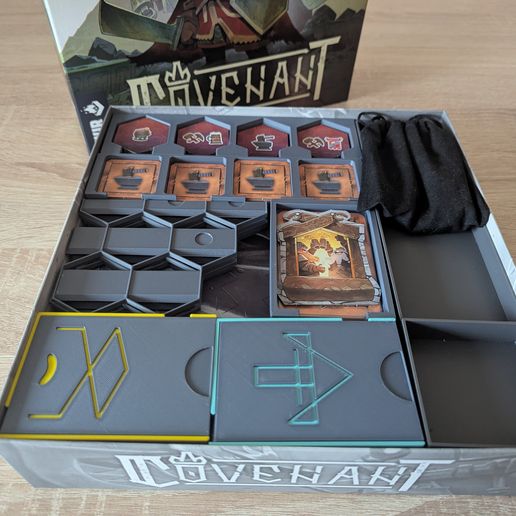

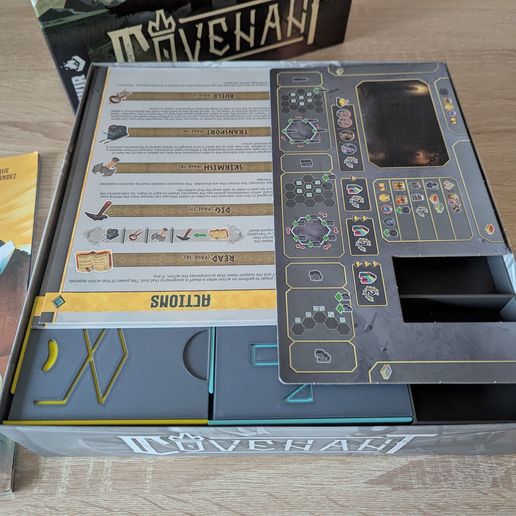

This is an insert for the game Covenant. The insert is designed to speed up game setup and allow parts of the insert to be used during gameplay.

A brief overview of supported features:
- Supports sleeved and unsleeved cards (tested with Paladin Percival sleeves, which are 90 microns thick)
- Player trays with all game components
- Horizontal and vertical storage possible
- The basic game and all currently available promos
- Supports quick game setup
- 💡 Smart insert: the insert extends the game as some parts of the insert can be used during the game.

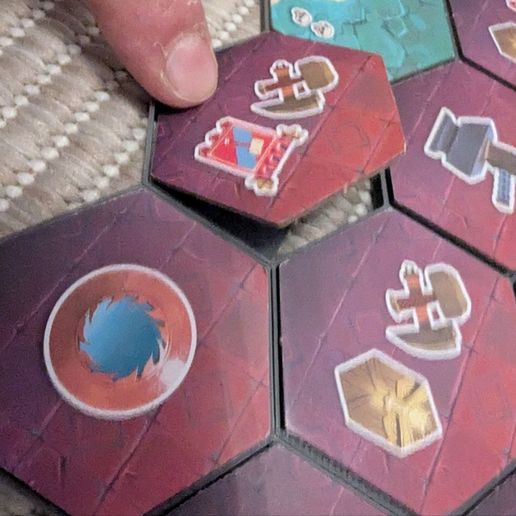

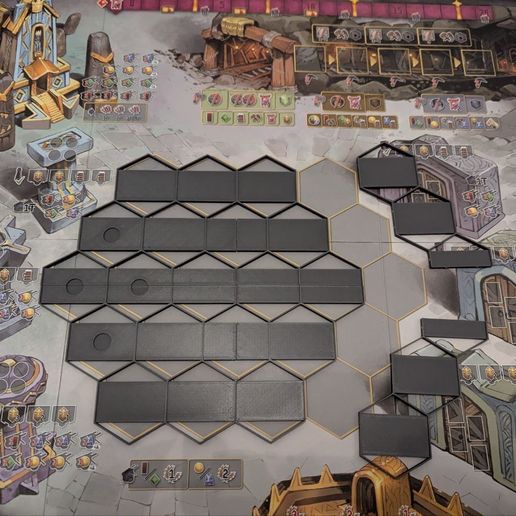

In addition to the trays that store the game contents, I have created a grid for the hall tiles that can be used during the game to keep the hall tiles on the map in place. This prevents the remaining hall tiles from moving when turning over the hall tiles during play. To enable printing on small print beds, it consists of 6 elements that are equipped with magnets and can therefore be held together. This allows you to assemble a grid for the 1-2 player side and the extended grid for 3-4 players as you wish.

[](https://files.cults3d.com/uploaders/30101980/illustration-file/97050c33-8710-4d1c-8e20-9371417a8acb/video_2025-12-17_00-53-16.mp4)

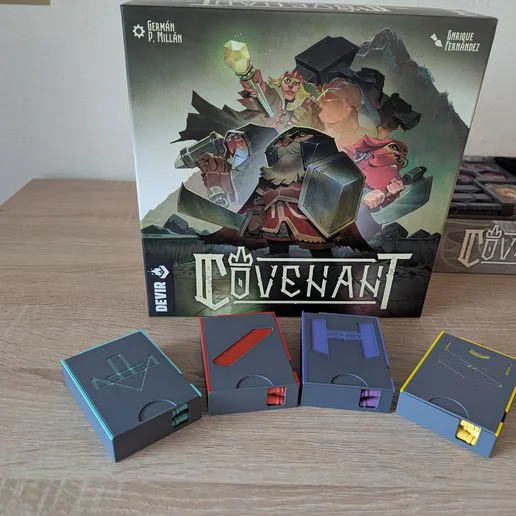

In addition, all of a player's game materials are stored in a corresponding tray, which is designed with the emblem of the corresponding player color.
The tray also has some extra space for future expansions, if any are released.

For all those who own a Bambulab: There is a .3mf file with pre-colored trays. This file is ready to print.

I hope you like the insert. If something bothers you, if you would like to make additions or changes, please feel free to contact me. I am receptive to any feedback and happy to make useful changes.

I highly recommend to use the magnets for keeping the grid together or gluing it. If you want to use the magnets please use ROUND magnets with a diameter of 2mm and a height of 2mm. I used this magnets:
https://www.supermagnete.de/scheibenmagnete-neodym/scheibenmagnet-2mm-2mm_S-02-02-N
please keep in mind that this is a german store and shipping to somewhere else outside of germany might be unreasonable expensive. You can use any magnets that matching the dimensions given above. They can actually also have a height lower than 2mm, but MUST have a diameter of 2mm.

**Does the insert have a lid lift?
No, the Game does not have a lit lift.

FAQ:
**Can you also store sleeved cards?**
Yes, the insert supports both sleeved and unsleeved cards.
Sleeves I have used:
- Paladin Percival (63.5 x 89 mm) Card Sleeves (90 microns) and all the content fits without any problem.

** Does it also support storing the game vertically?**
Yes, that game can be stored either horizontally or vertically without anything moving around inside the box :)

**The insert has several colors and displays colored icons on the lids of the trays. How did you do it and how can I copy it?**
I printed the insert with my Bambu P1S. This means that I used the Bambu Studio/Slicer for coloring. I have also included a 3mf project file with the download files, which already has the appropriately colored tray. This can be reused for the same printer.

**Do you also support smaller printers like the Bambu A1 Mini?**
Yes, usually my inlays are large enough to be printed on a small printer. If larger parts are included, I offer the larger inlays in a clip-together format or divide them directly into smaller elements. The latter is always noted in the corresponding file name and here in the FAQs.

**How much filament does your insert need and how long is the printing time?**
The color print on my Bambu P1S (with AMS) printer consumed a total of 781g WITH filament change with a print time of just under 1d0h43m. A single color print would use 717g of filament.
[](https://files.cults3d.com/uploaders/30101980/illustration-file/47a882ad-2a7e-4408-b0fe-77484e7e960f/Screenshot-2025-12-13-234450.png)

**What magnets are you using?**
If you want to use the magnets please use ROUND magnets with a diameter of 2mm and a height of 2mm. I used this magnets:
https://www.supermagnete.de/scheibenmagnete-neodym/scheibenmagnet-2mm-2mm_S-02-02-N
You can use any magnets that matching the dimensions given above. They can actually also have a height lower than 2mm, but MUST have a diameter of 2mm.

**How many magnets are necessary?**
There are holes for at most 64 Magnets, but depending on your preference you can also easily just use half the amount or less,

**Are supports needed?**
No, the insert can be printed completely without supports

**What are your print settings?**
FDM Print
0.4 Nozzle
Layer height 0.2mm
No Support
No Brim (in case of warping issues, use brim)
**Print list, what do I have to print and in what quantity?**
The xNUMBER extension indicates how often a part must be printed. For example, bread_and_wood_tray_lid_x2.stl must be printed exactly twice, whereas files without the _xNUMBER extension only need to be printed once (e.g. plunder_tiles_tray.stl).

Overview about the files:
- inlaid_jewels_tray.stl
- bag_tray.stl
- card_tray.stl
- dice_tray.stl
- difficulty_tiles_tray.stl
- hall_tiles_tray.stl
- kings_coins_tray.stl
- large_placeholder_tray.stl
- layout_board_1_nw.stl
- layout_board_2_ne.stl
- layout_board_3_se.stl
- layout_board_4_sw.stl
- layout_board_5_ne_extension.stl (This is the grid extension for 3-4 Players)
- layout_board_6_se_expansion.stl (This is the grid extension for 3-4 Players)
- player_tray_x4.stl
- player_tray_1_lid.stl
- player_tray_2_lid.stl
- player_tray_3_lid.stl
- player_tray_4_lid.stl
- player_tray_worker_inlay.stl
- project_tiles_tray.stl
- resource_counter_tray.stl
- roubble_tiles_tray.stl
- starting_and_objective_tiles_tray.stl
- support_pieces_tray.stl
- tools_tray.stl
- tradition_tiles_tray.stl
- treasure_tray.stl
