Dark Blood board game insert / organizer

If you want, you can help me with designing inserts by donating here:

Hello,

for those that don't know my ‘insert philosophy’ - I am creating modular inserts that are focused on reducing setup and space on table, filament consumption is not my highest priority, but of course I'm trying to save some material where I can.

• If you want to acquire commercial licence for this model, visit my club page on printables,
• my inserts are without lid lift unless I specifcally state otherwise,
• Clearence for holder covers is very small - 0.2mm horizontal. Please print the smallest holder and cover for it to check if it fits, if not you may need to calibrate printer or enlarge cover a bit (adding 0.2-0.4mm to the width in the slicer should be enough),
• card holders - they're quite tight, so in order to put all cards you may need to squeeze them in,

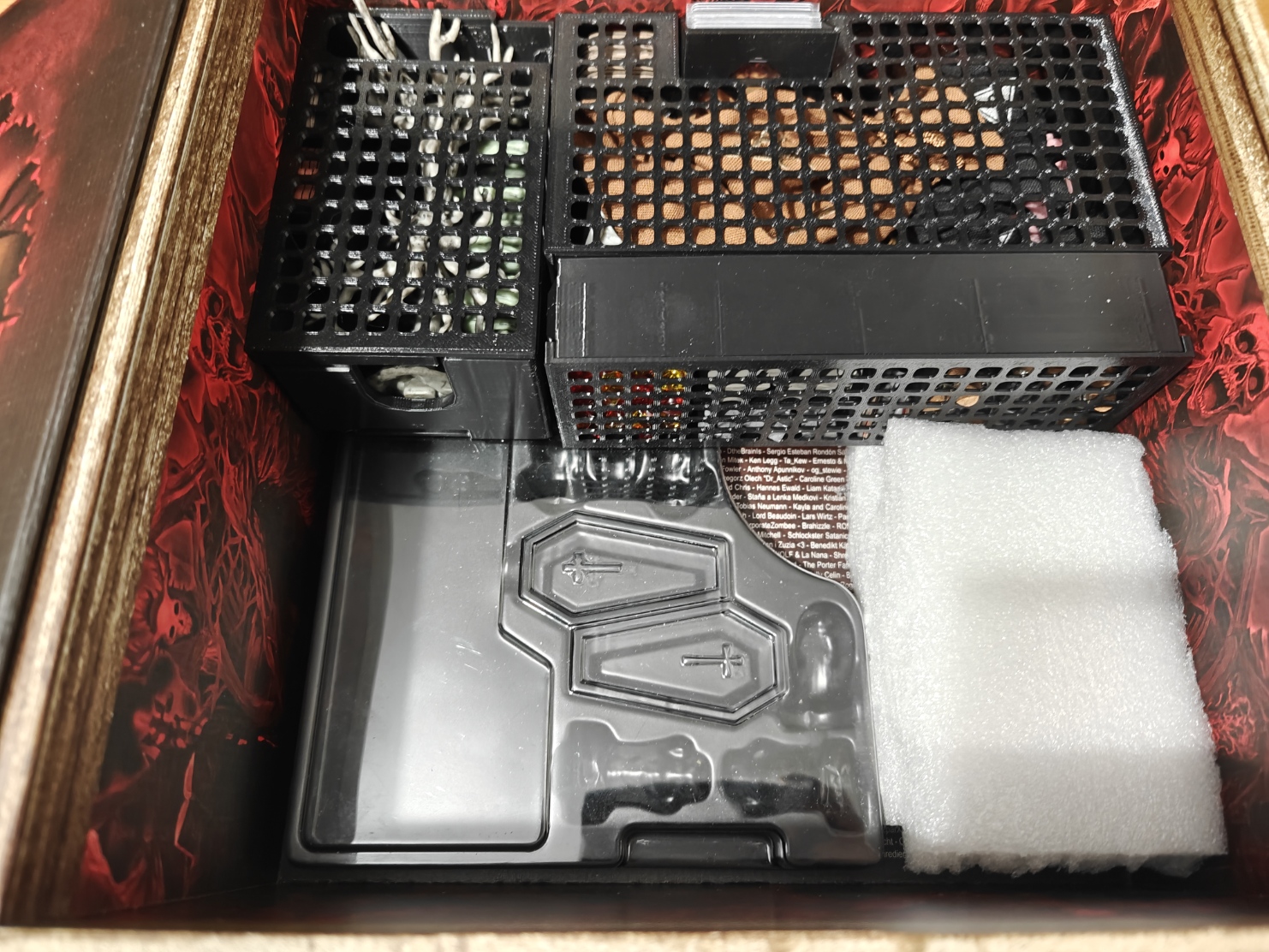

• this insert is not complete as you can see on the photos, as I've left space for expansion. I will probably need to redesign setup holders, but hopefully only them. Unfortunately I can't give you any guarantees.

• vertical storage ,
• inquisitor module.
• three of the damned ,
• sleeves - 70 microns

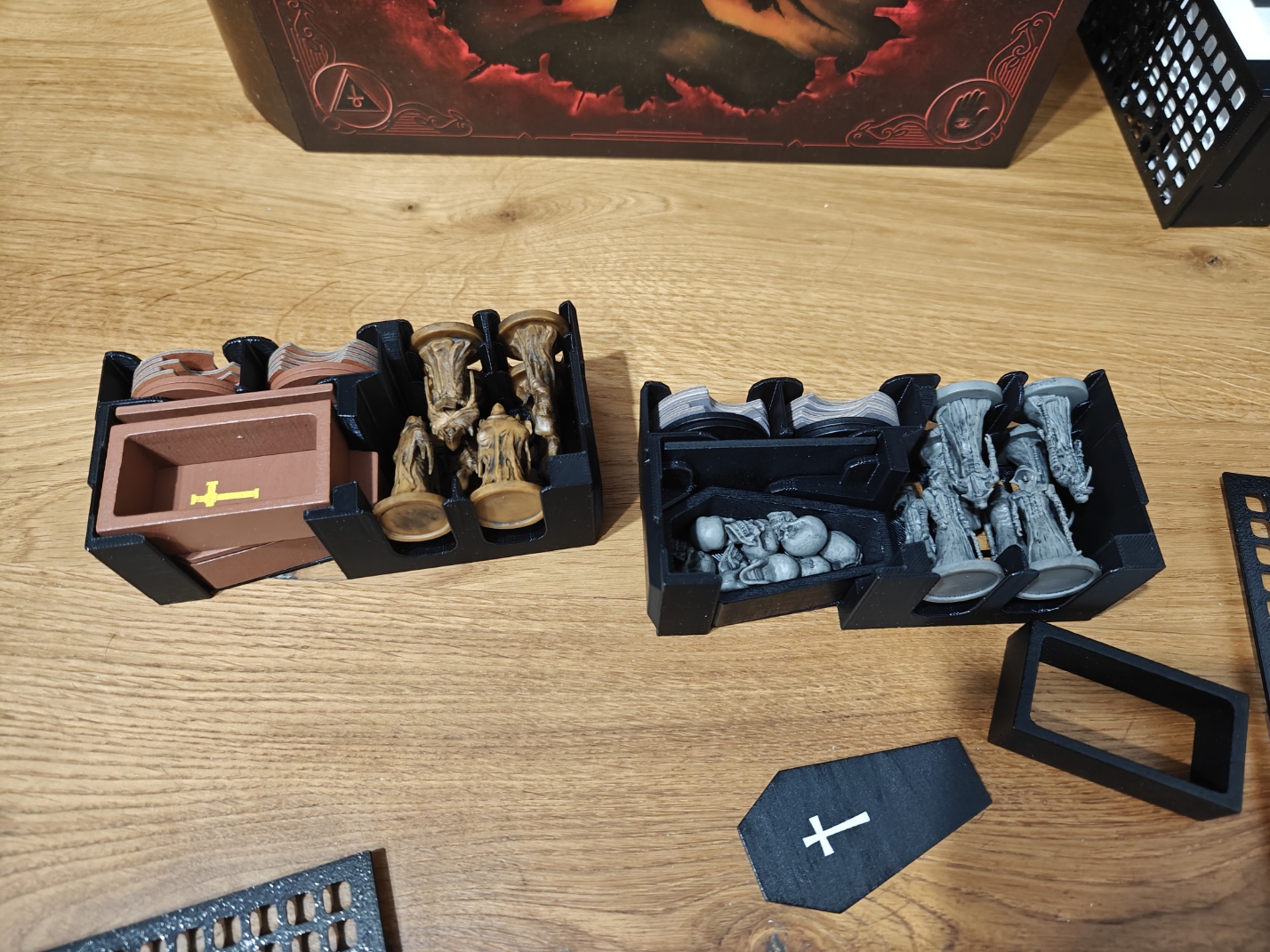

• cult holder - holds everything related to cult except for monstrosities,

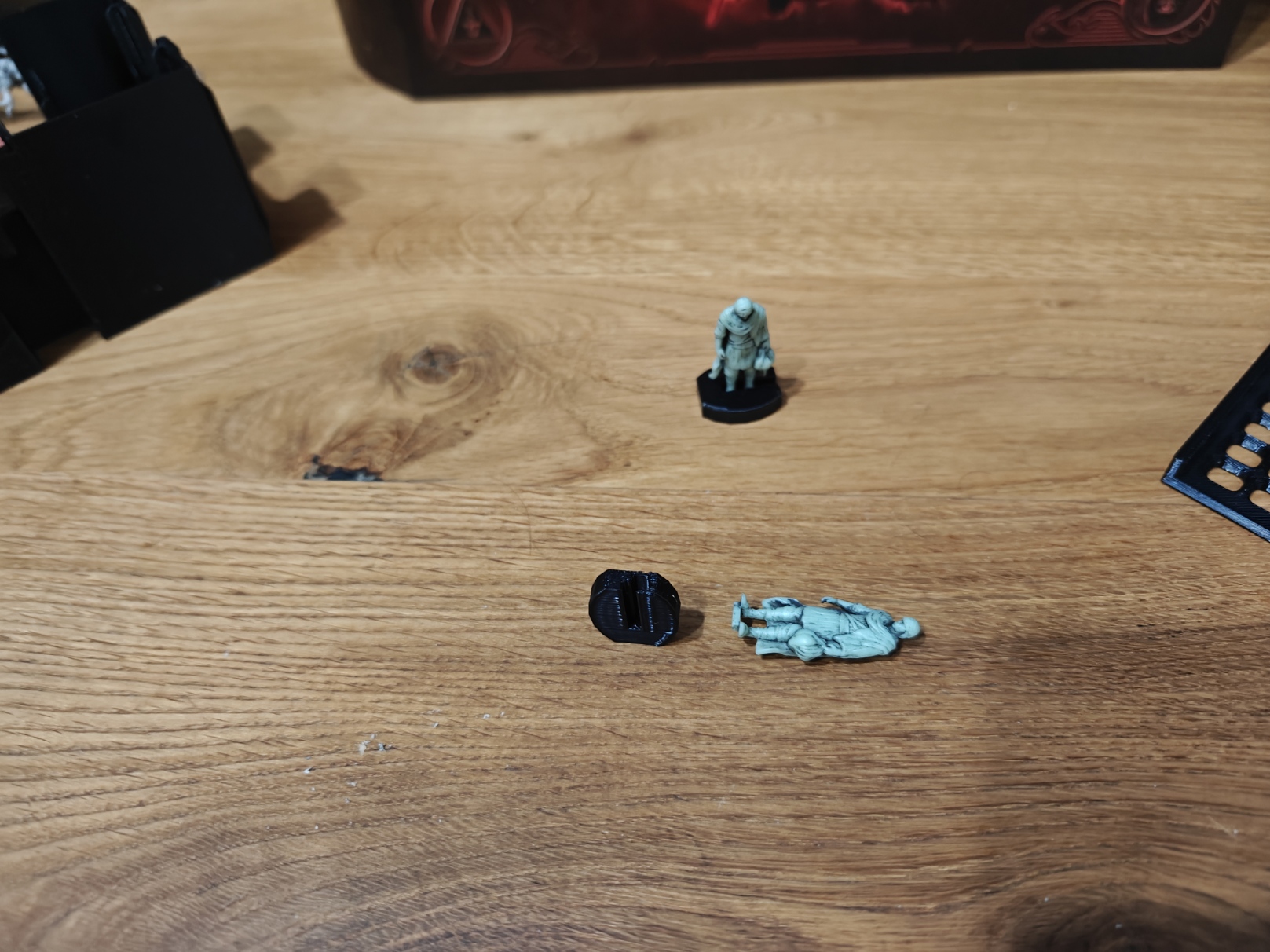

• peasant bases - this insert works perfectly only with my peasant bases, I've created them as in my copy they're very loose,

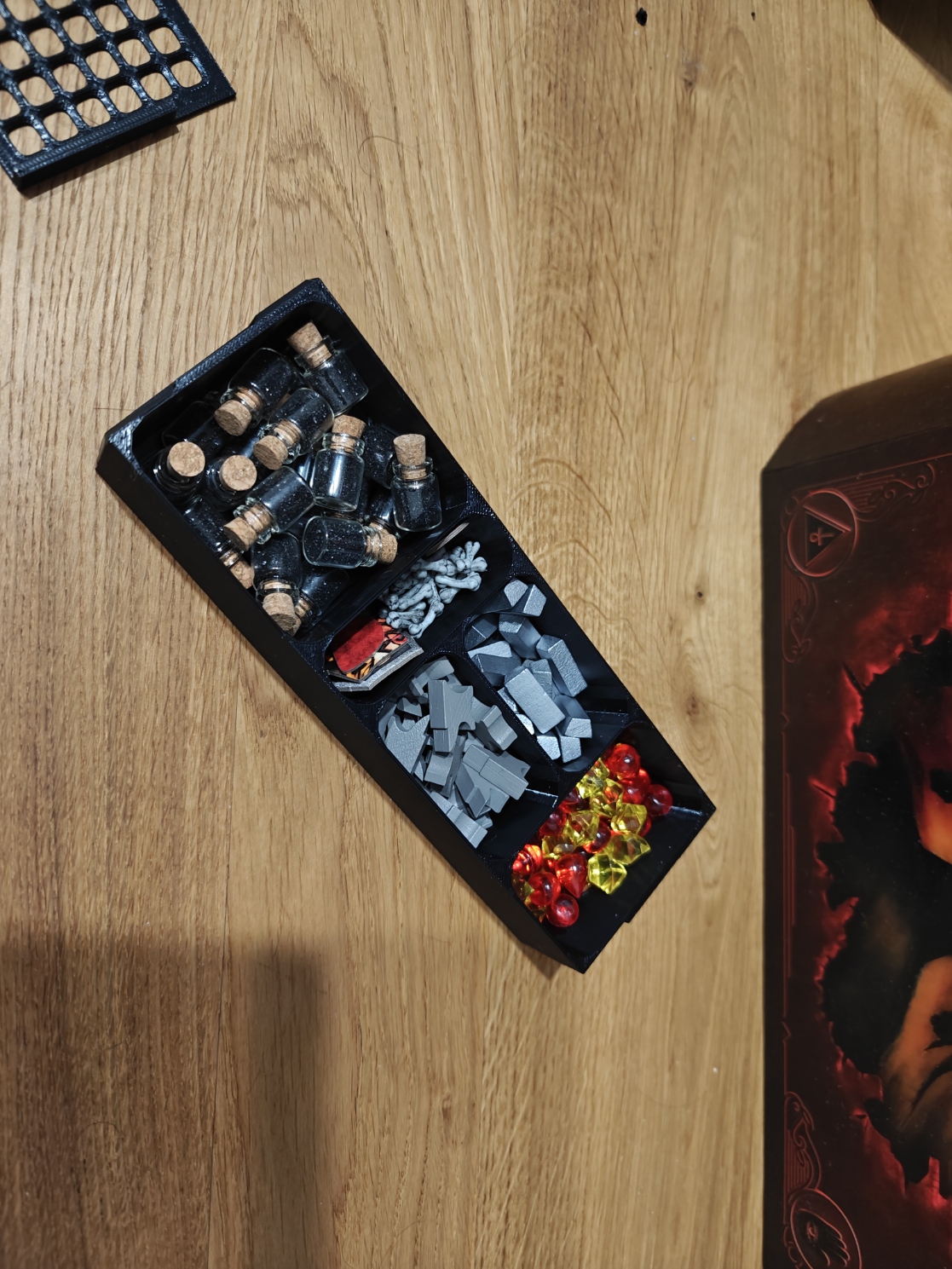

• resources holder - for all resources and also starting tokens (that go into bags),

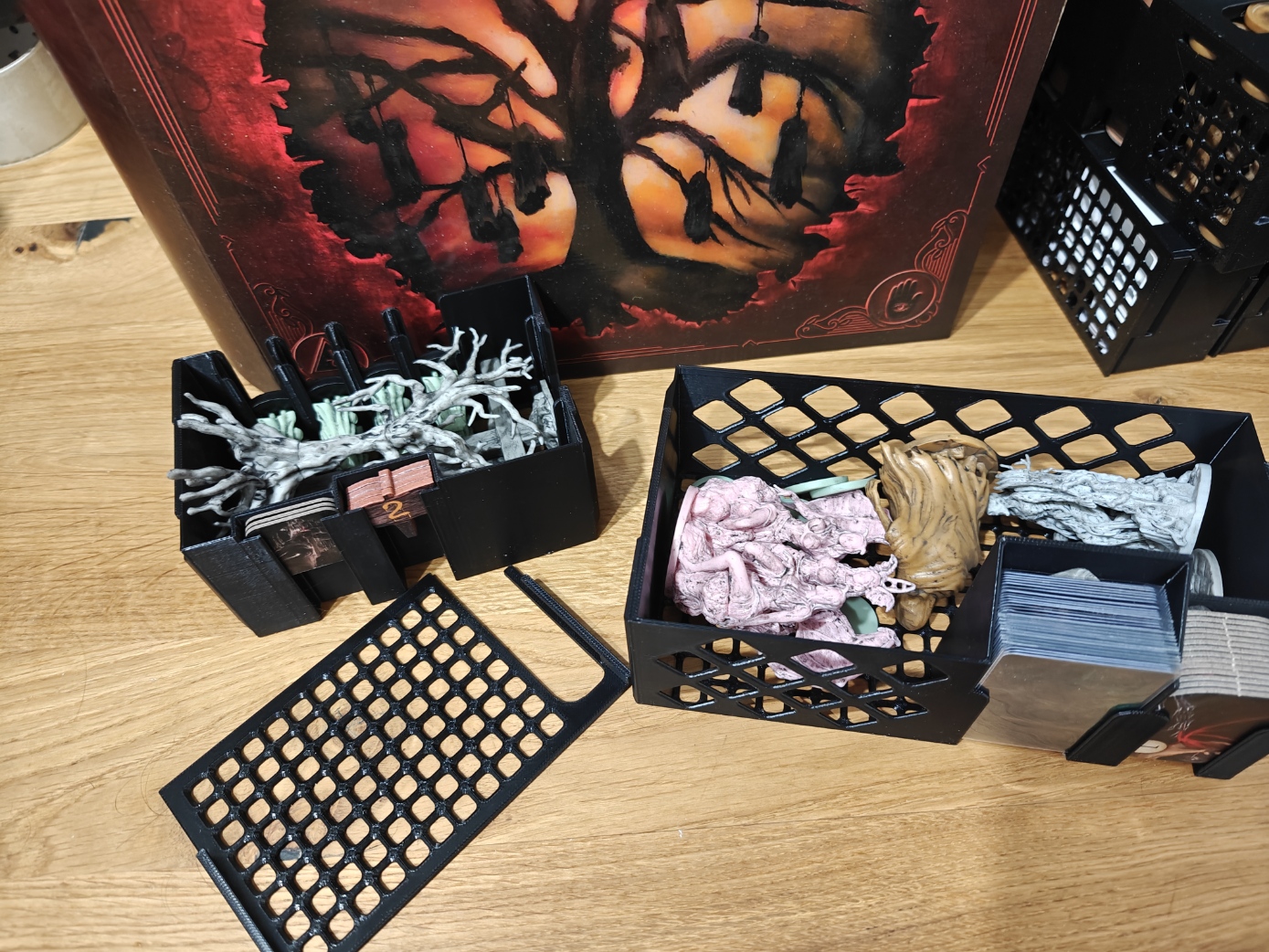

• setup holder 1 - for church miniature, tree of the damned, peasants, small tokens,

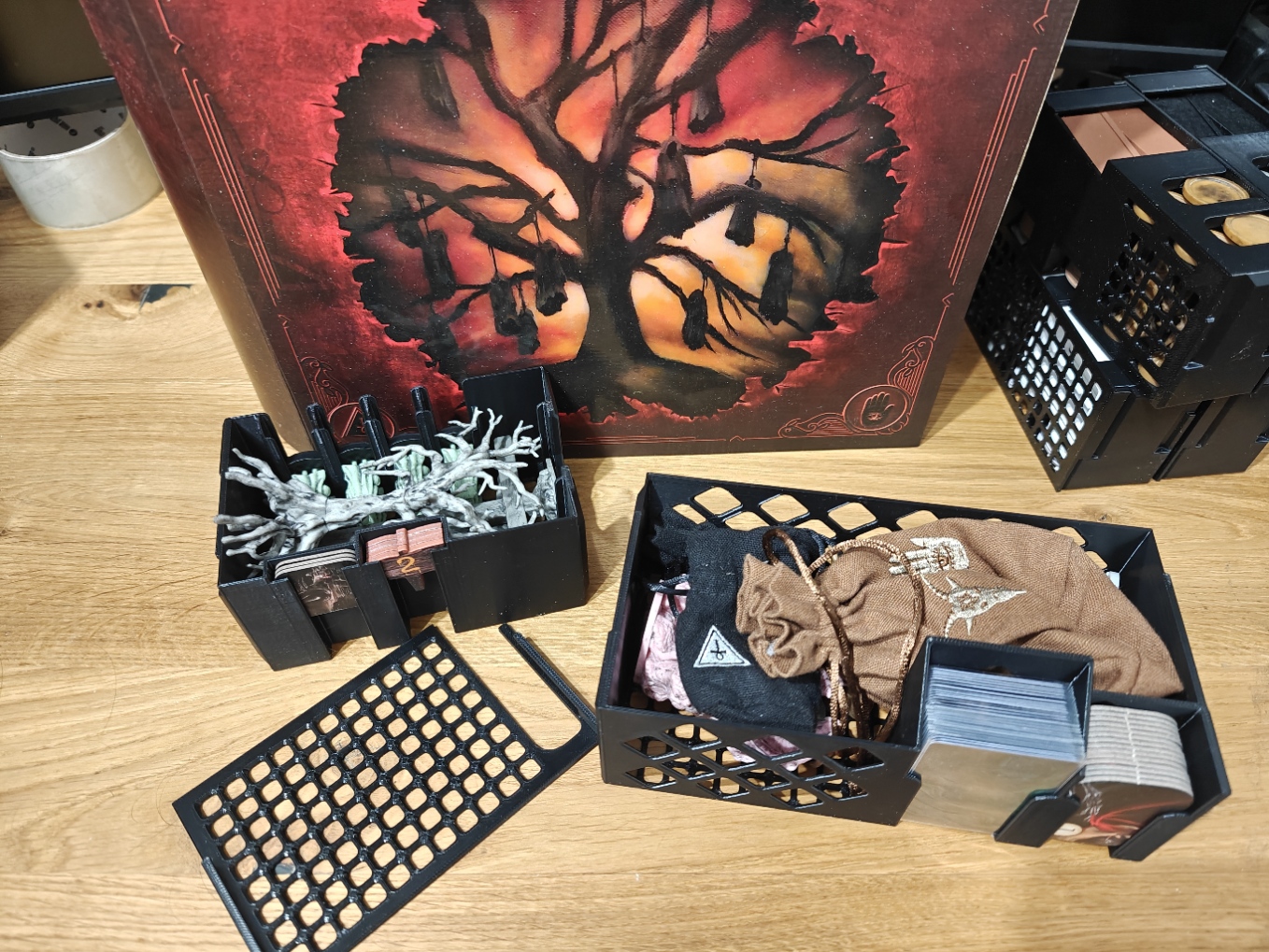

• setup holder 2 - for monstrosities, cards, tiles and also I'm storing there bags, as they're securing the miniatures.

• about 573g filament needed, (depends on your settings, I printed with 12% gyroid infill, 2 walls, 4 top and 3 bottom layers, 0.42 line width),
• at least 197mm x 101mm print bed.

Supports - no supports required.

• every file ended with xX (for example x16) - print X times (in given example - 16 times),

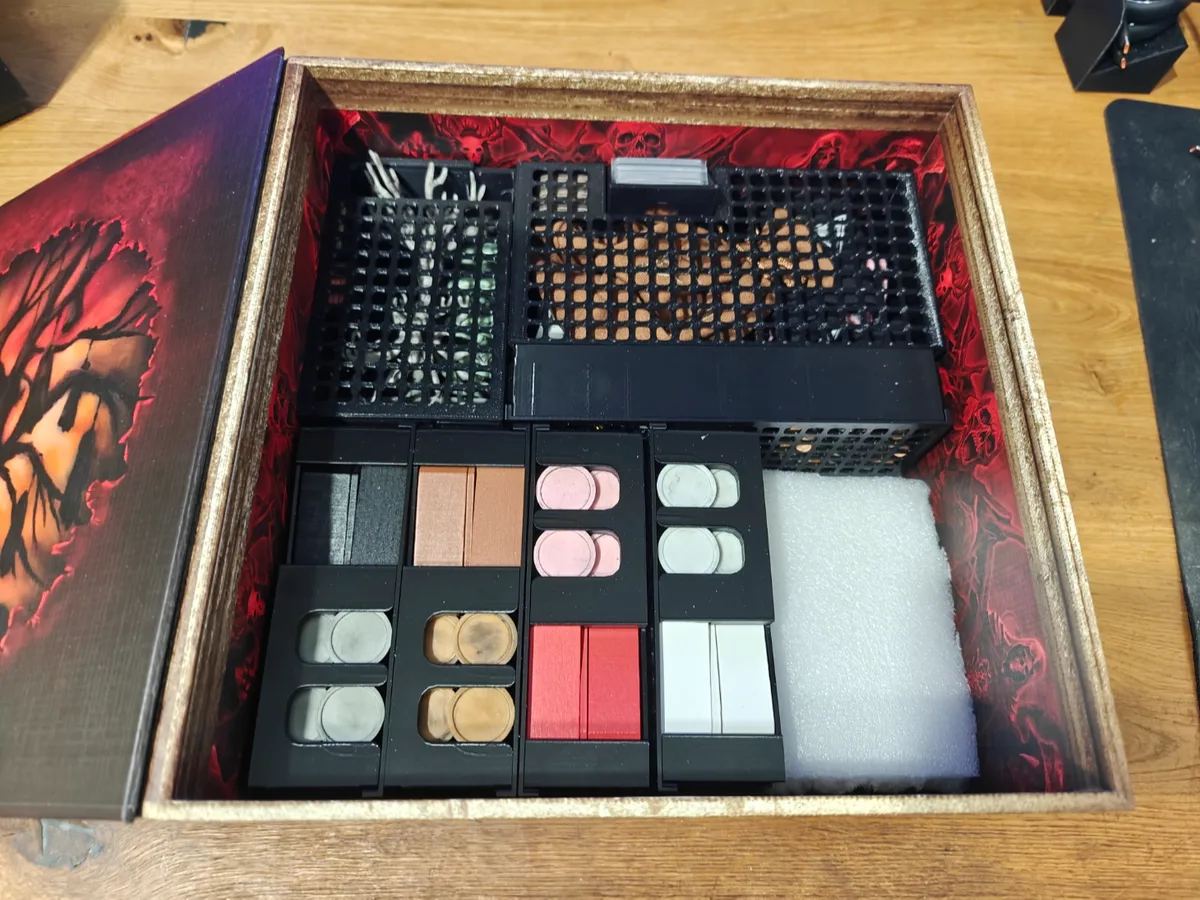

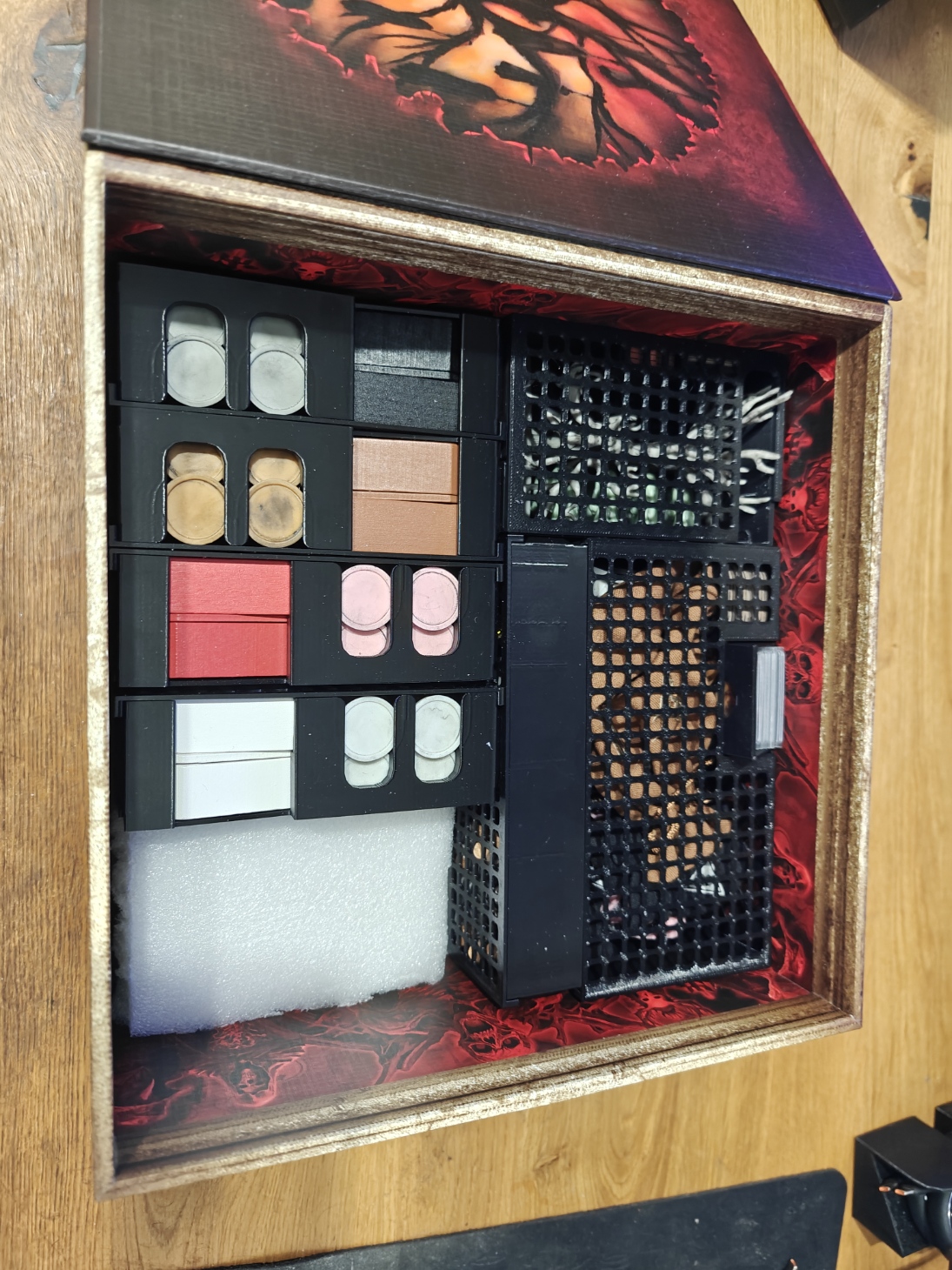

• refer to pictures how to organize the box.

• Like I mentioned, I left a bit of space for future expansion, hopefully it will fit without the need to redesign everything.

Enjoy!
