Tabletop Inc Deluxe ALL IN insert / organizer

If you want, you can help me with designing inserts by donating here:

Hello,

for those that don't know my ‘insert philosophy’ - I am creating modular inserts that are focused on reducing setup and space on table, filament consumption is not my highest priority, but of course I'm trying to save some material where I can.

• If you want to acquire commercial licence for this model, visit my club page on printables,
• my inserts are without lid lift unless I specifcally state otherwise,
• Clearence for holder covers is very small - 0.2mm horizontal. Please print the smallest holder and cover for it to check if it fits, if not you may need to calibrate printer or enlarge cover a bit (adding 0.2-0.4mm to the width in the slicer should be enough),
• card holders - they're quite tight, so in order to put all cards you may need to squeeze them in.

• vertical storage ,
• deluxe edition.
• wooden tables,
• golden pear expansion,
• crowdfunding revolution - I've left space for playmat, award tokens, boxes,
• sleeves - this is mainly designed for sleeves from campaign, I think they're around 70-80 microns

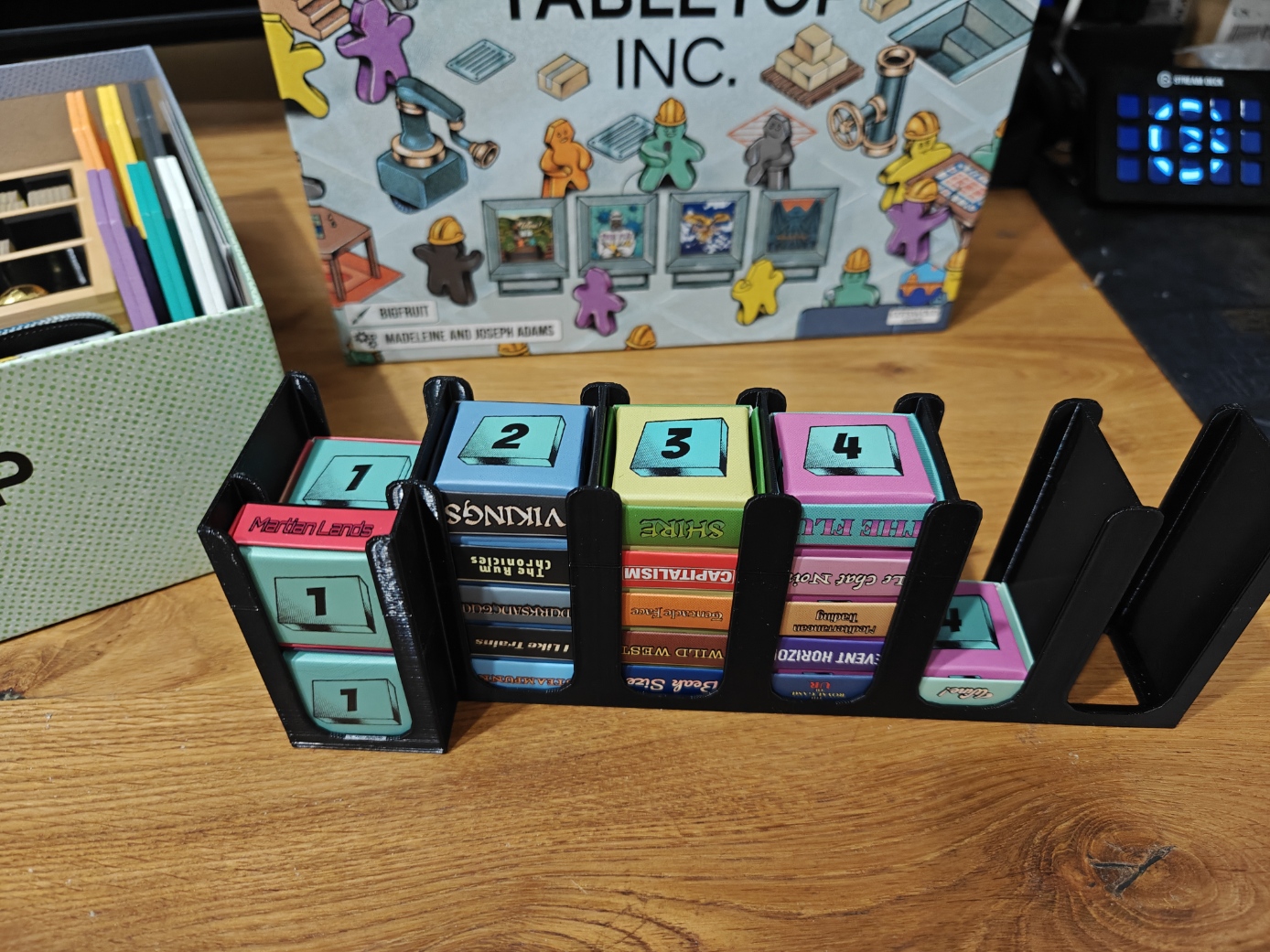

• boxes holder - stores all boxes and there is space left for boxes from crowdfunding revolution,

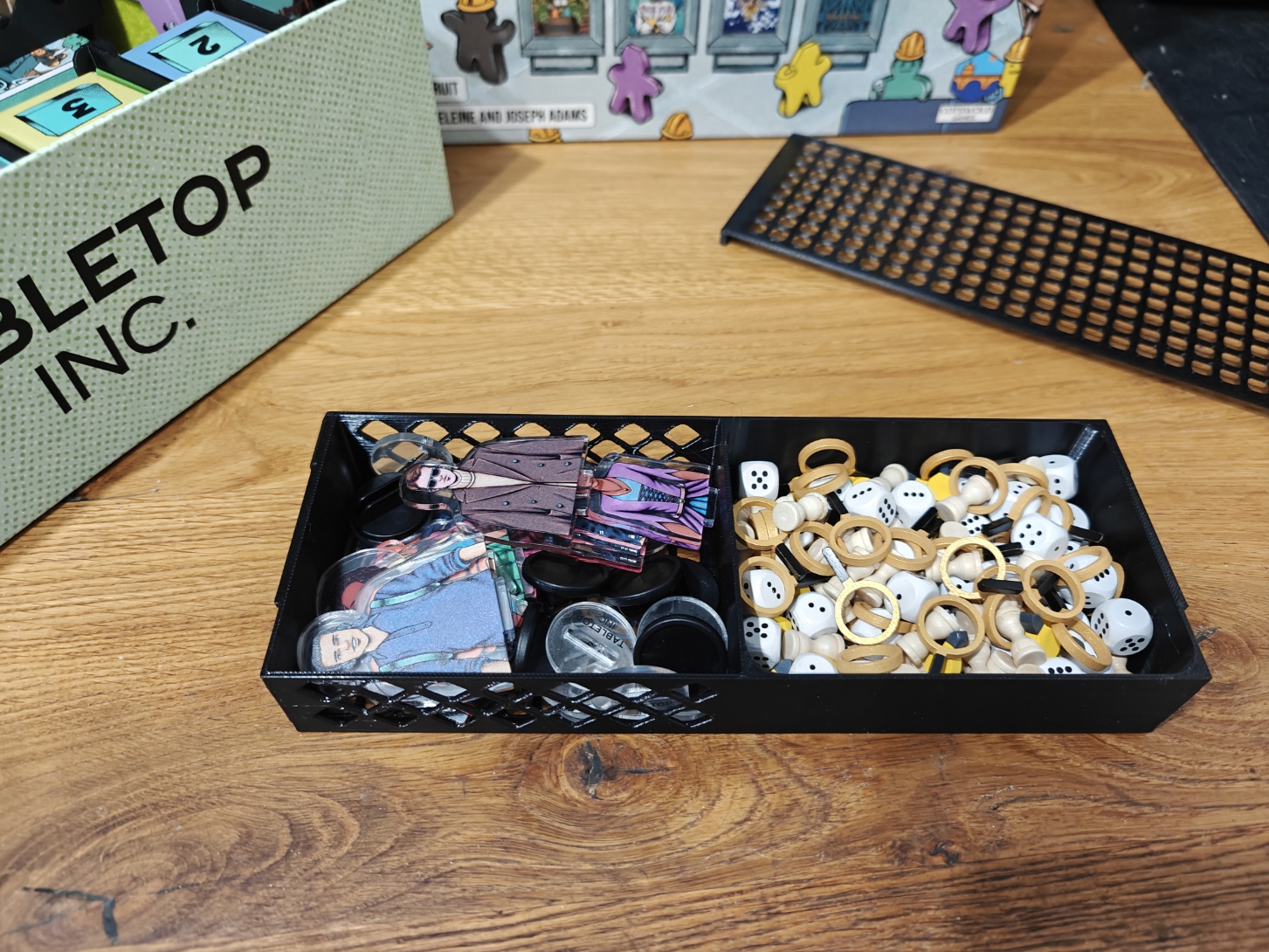

• resources, stands, standees holder - for all resources, standees (unfortunately they're not stored assembled) and stands. You can also store coins there, but I prefer to store them in the bag, which then goes into the shelf,

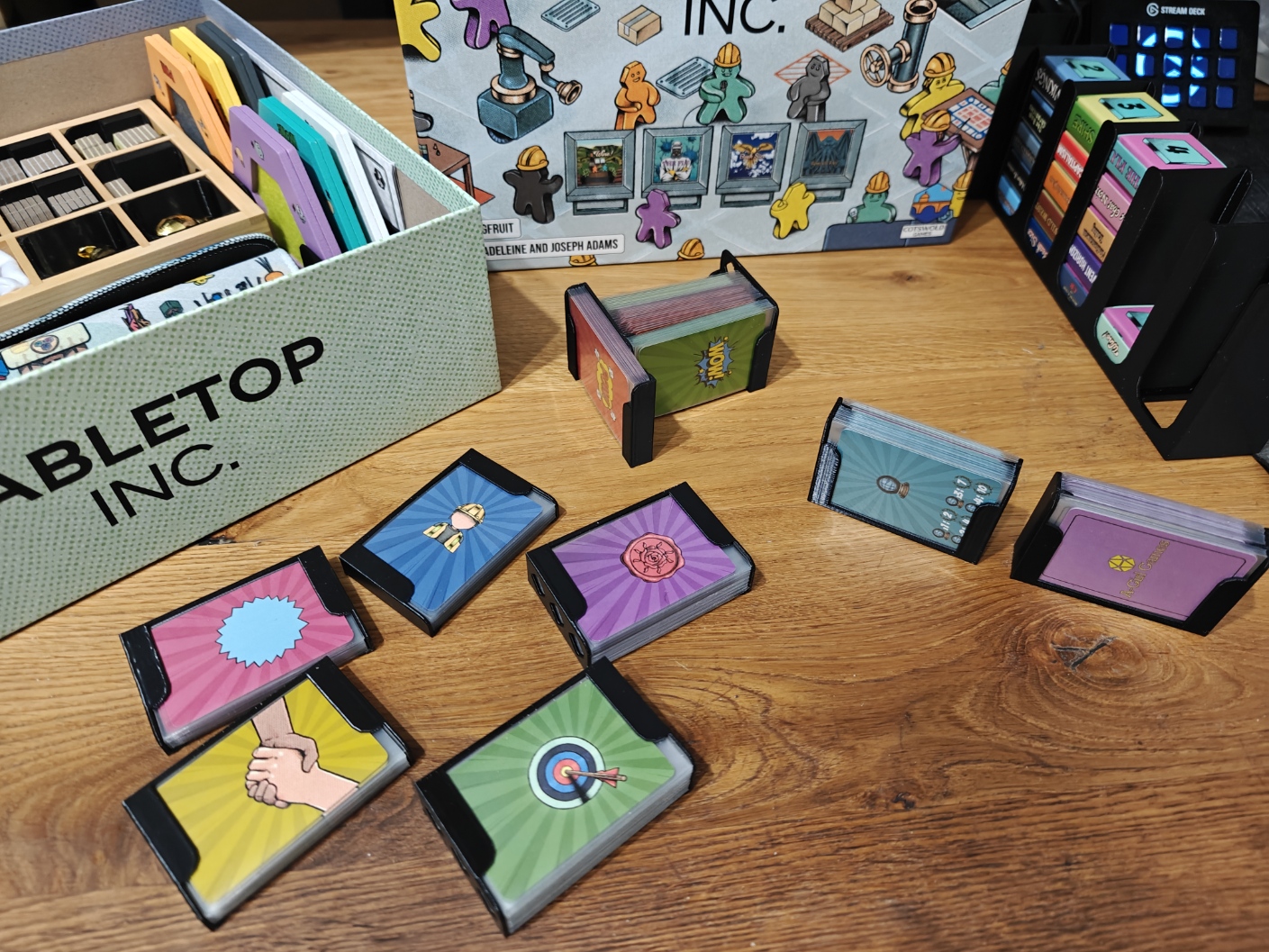

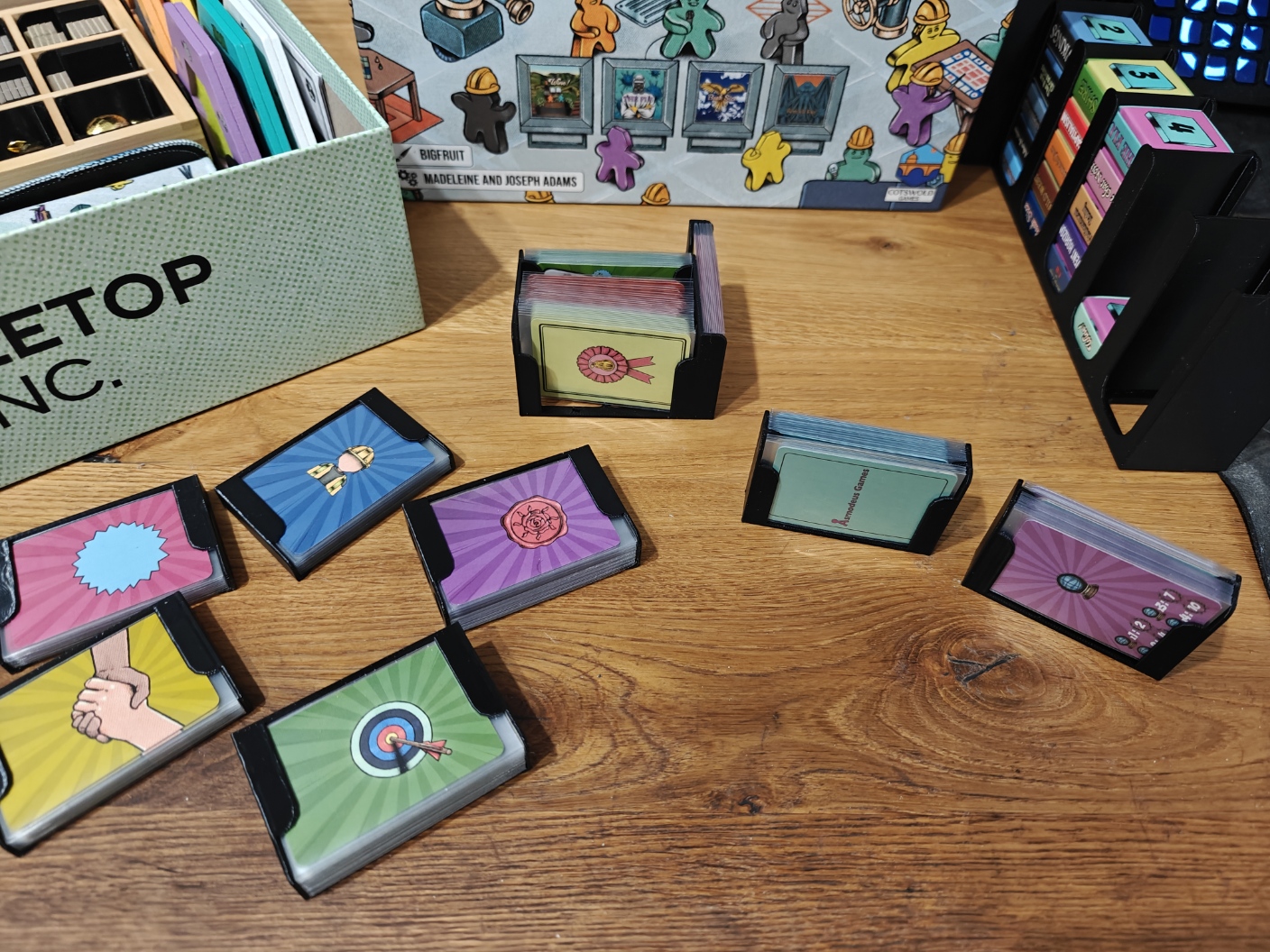

• cards holders - separate holders for items, objective, specialists, skills. 6 holders for cards for each player, one holder for everything else setup related,
• mechanism, component holder ,

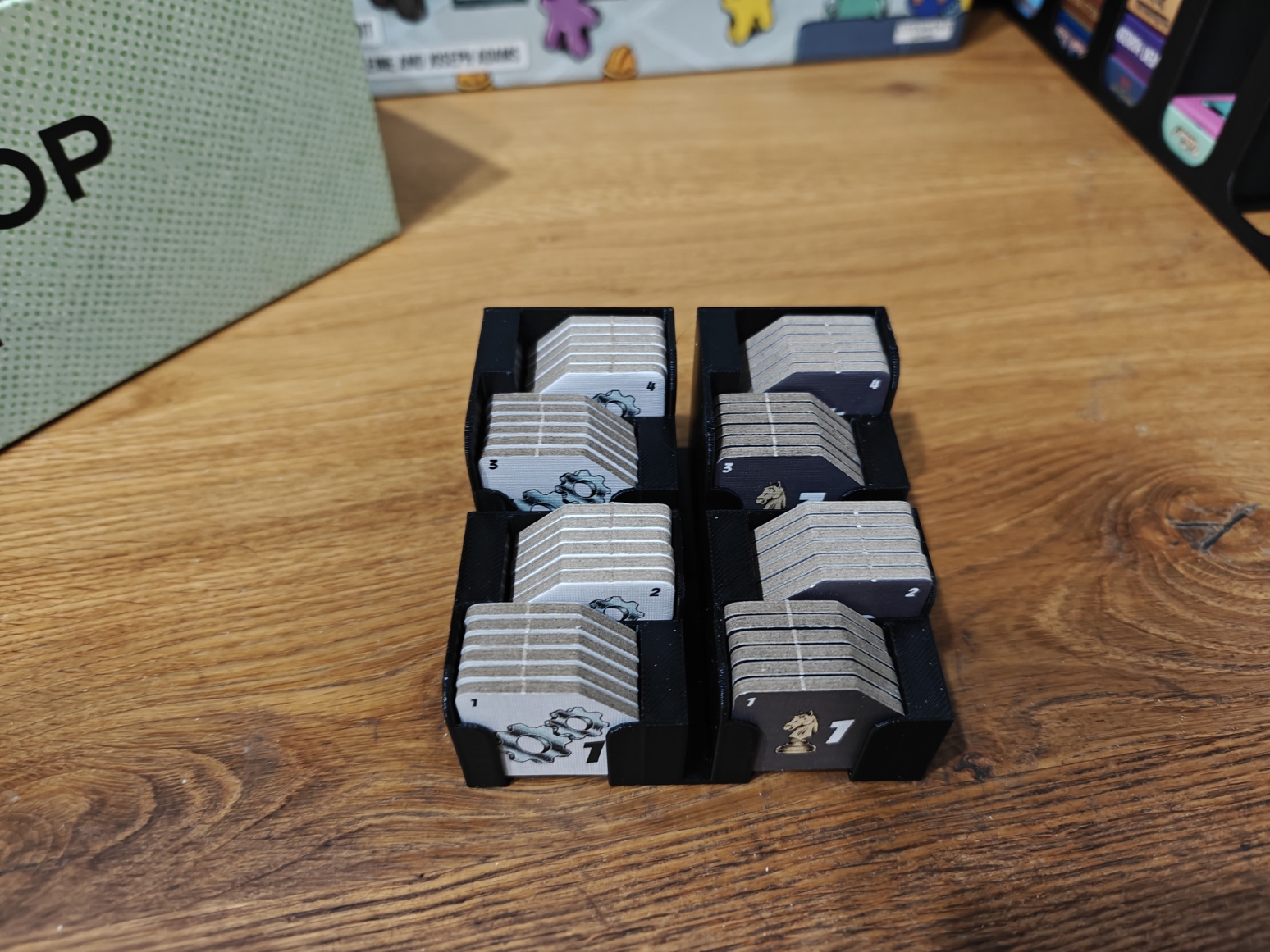

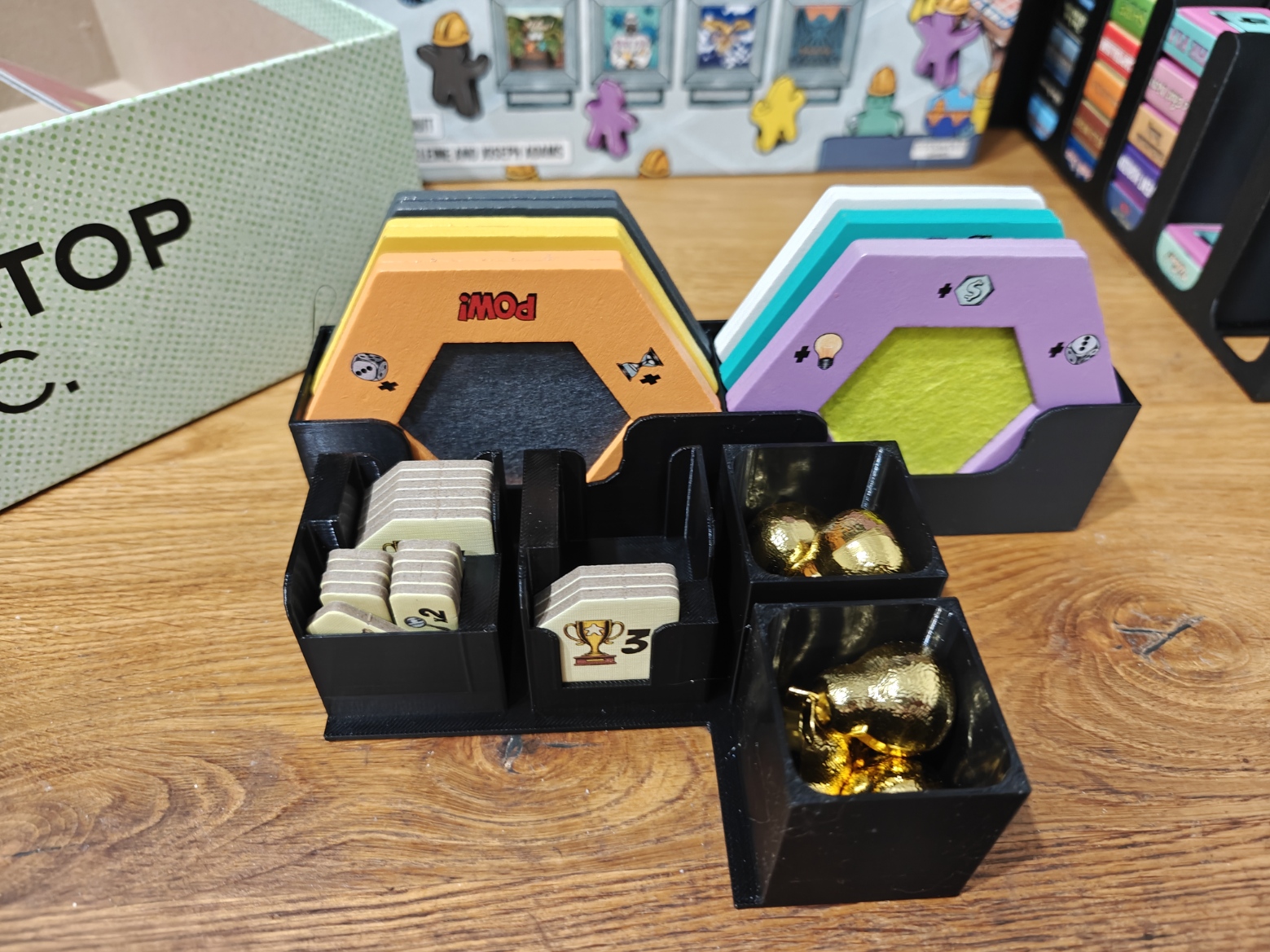

• tables, pear, award, convention tokens holder - there is space left for award tiles from crowdfunding expansion,

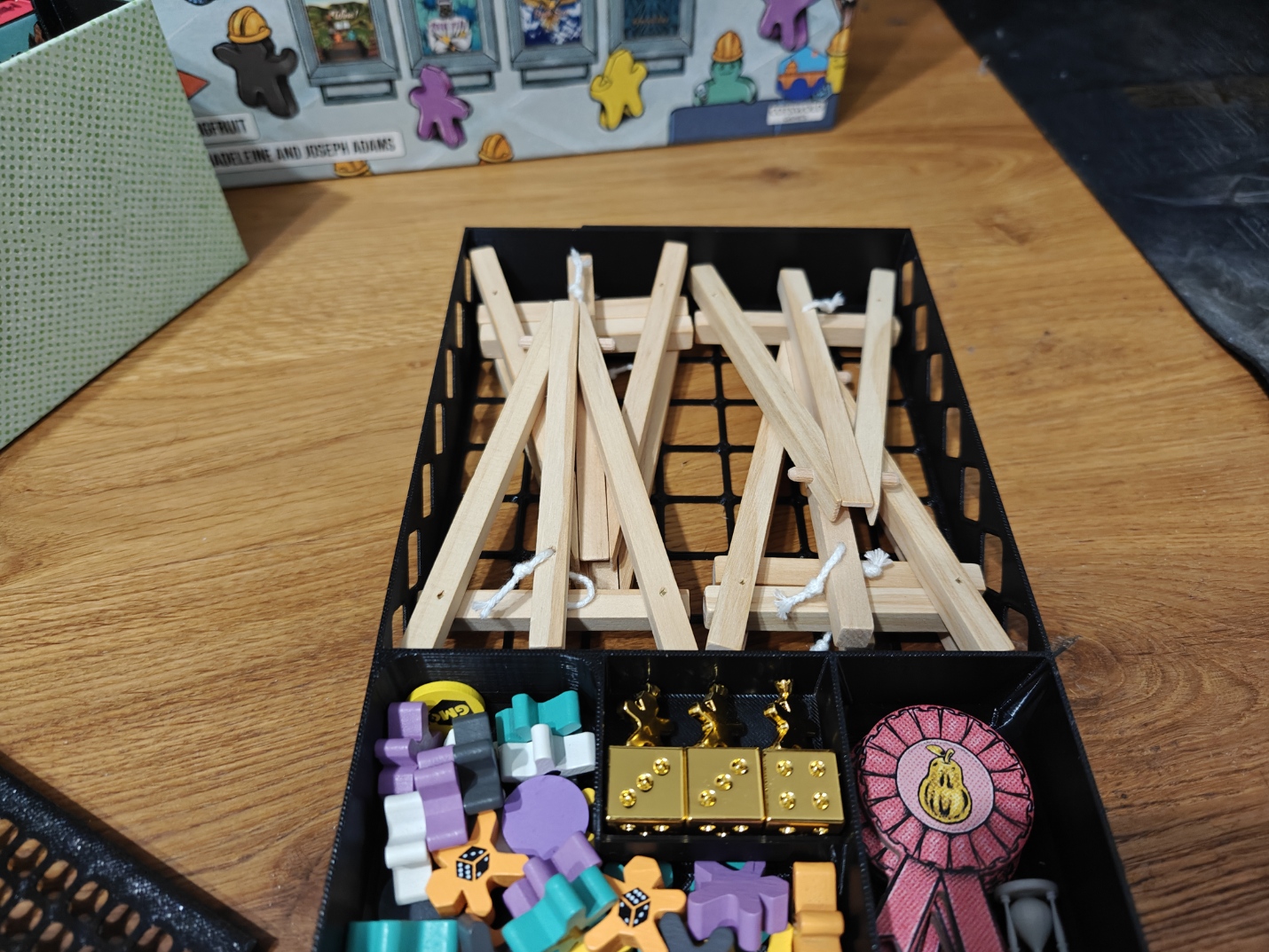

• easels, player components, other holder

• about 682g filament needed, (depends on your settings, I printed with 12% gyroid infill, 2 walls, 4 top and 3 bottom layers, 0.42 line width),
• at least 241mm x 221mm print bed (boxes holder needs to rotated 45deg).

Supports - no supports required.

• every file ended with xX (for example x16) - print X times (in given example - 16 times),

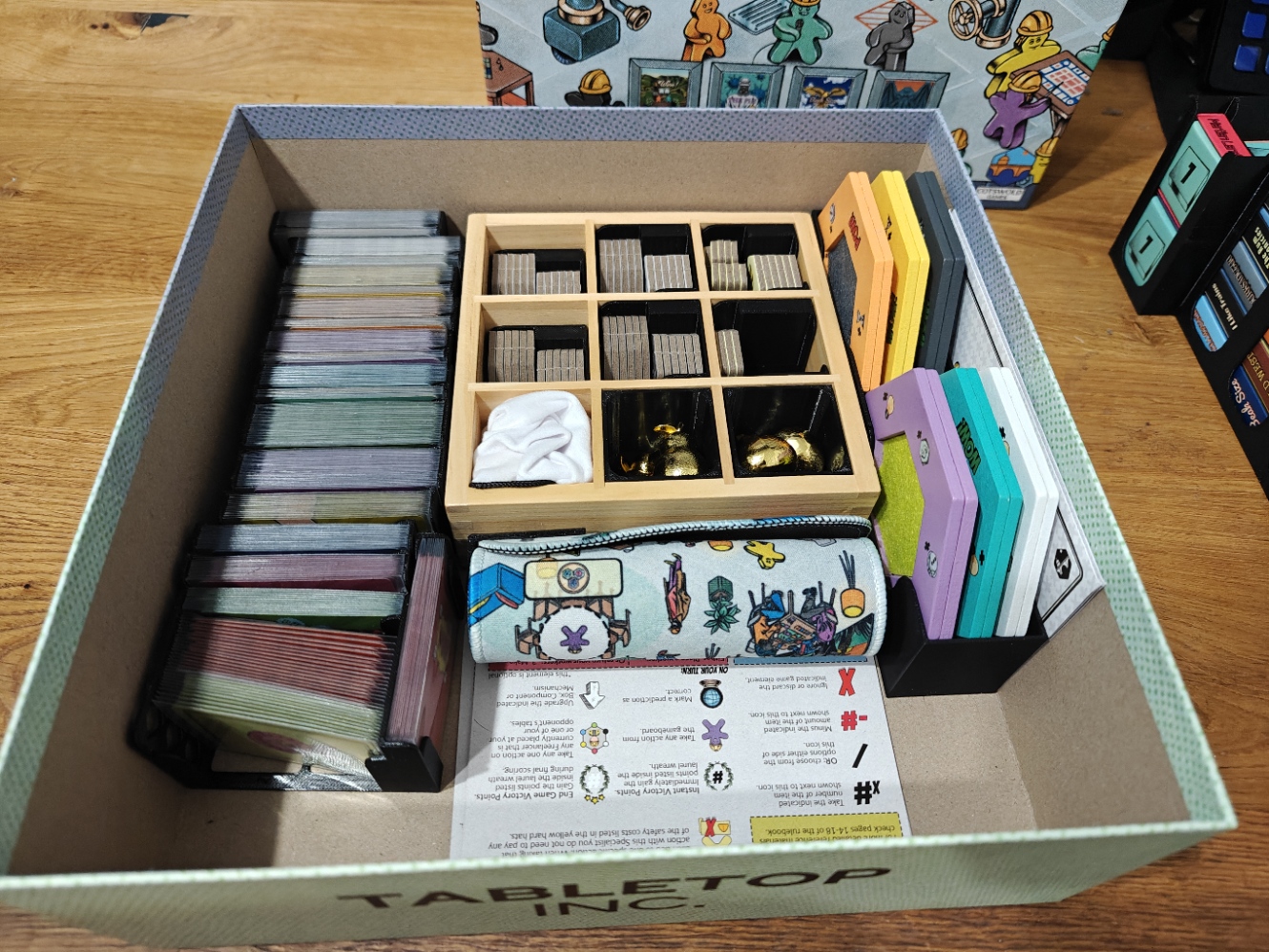

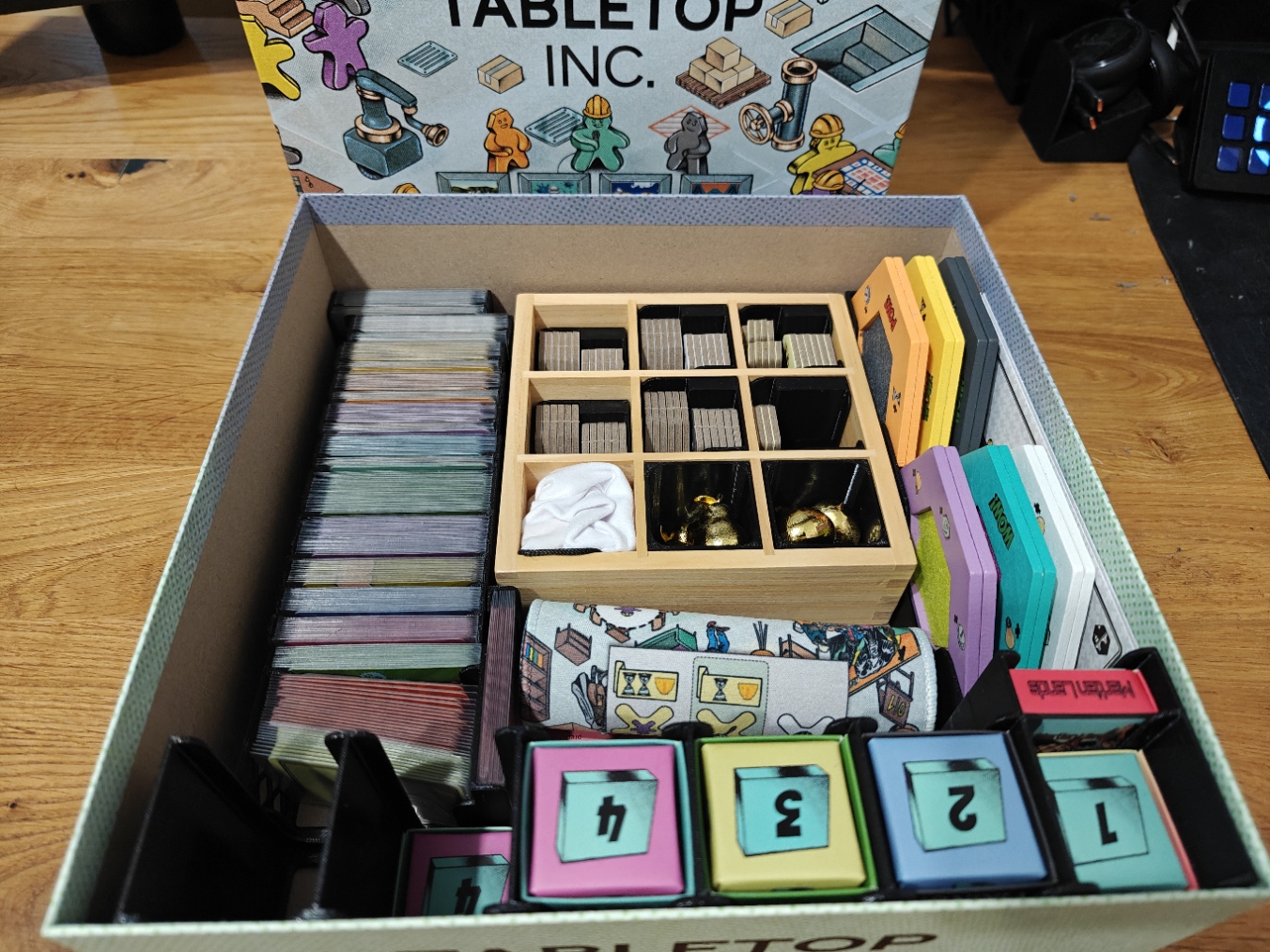

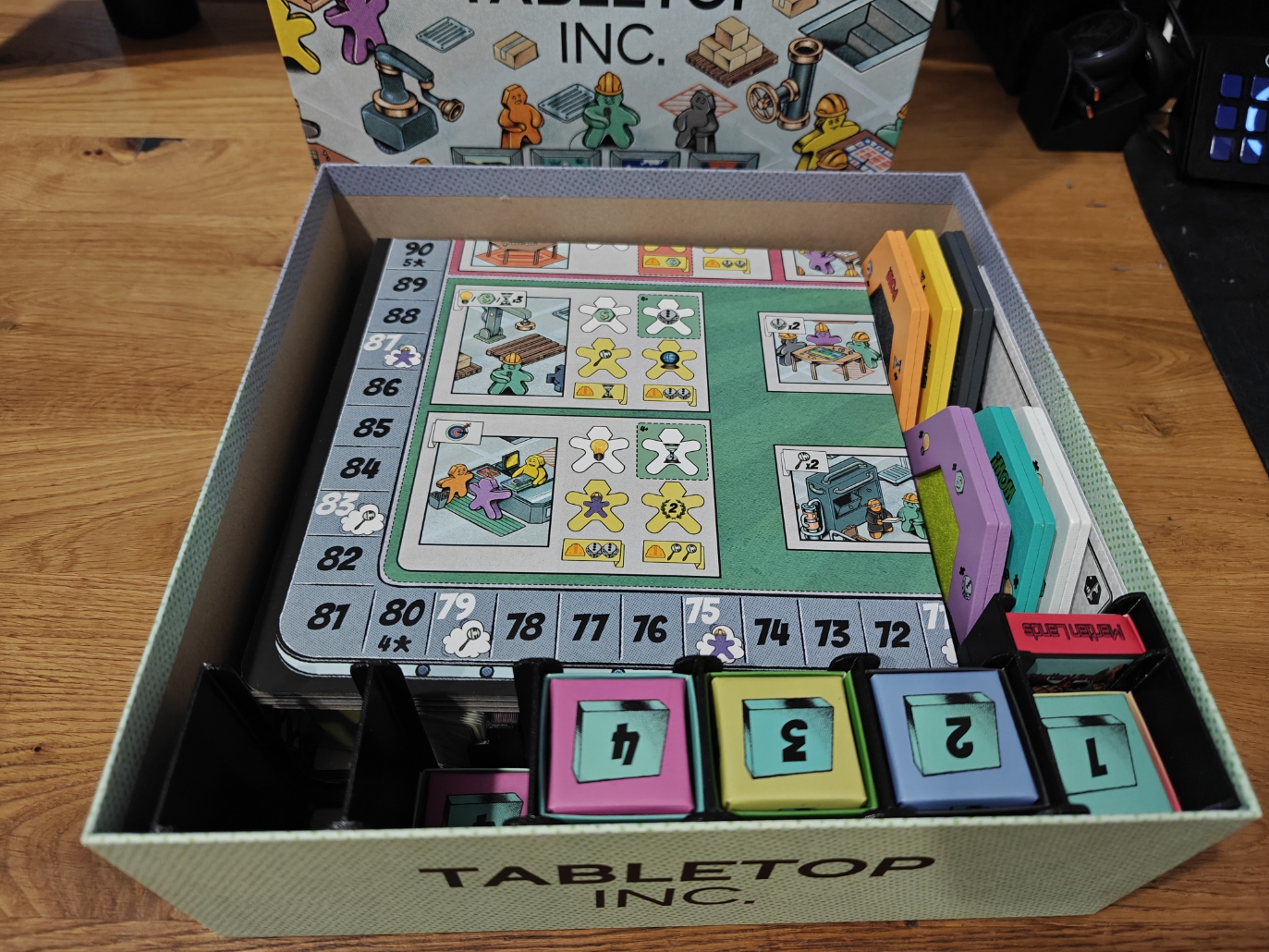

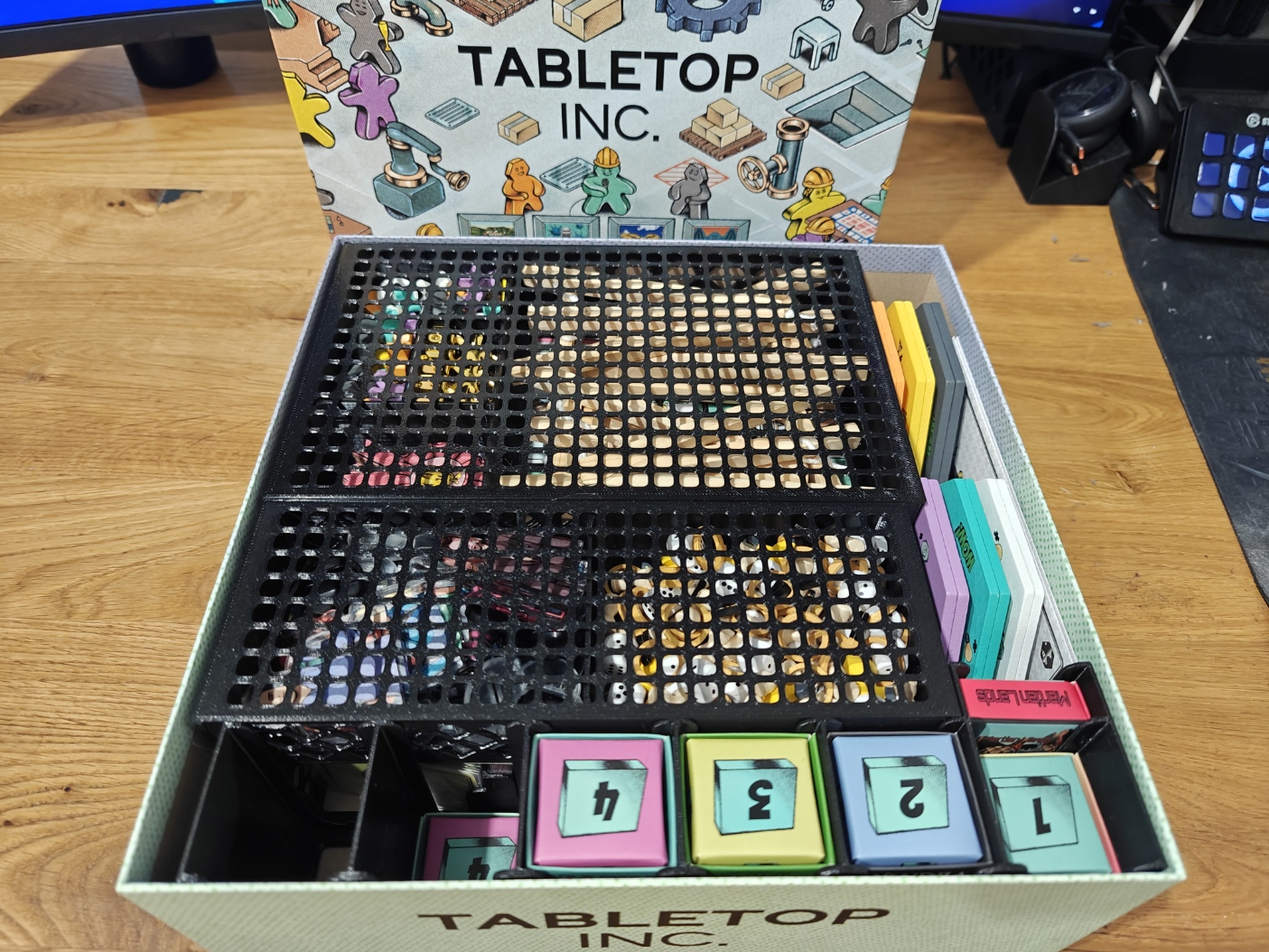

• refer to pictures how to organize the box.

• I will probably update easels holder when the expansion comes, to store all other tokens from expansion there. I may also need to update setup cards holder.

Enjoy!
