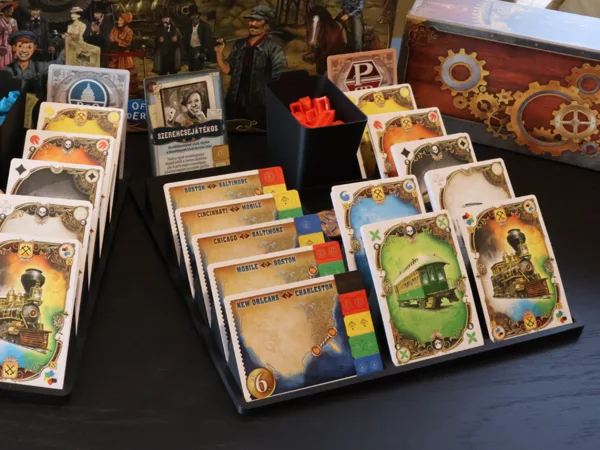

Ticket to Ride Legends Of The West Organizer

Ticket to Ride Legacy - Legends of the West - Ultimate Organizer

I was always amazed when someone was able to create something for an existing product that makes it even greater. Box inserts for several Ticket To Ride board games (US, Europe, Nordic, etc) already exist including tons of awesome ticket holders, train holders, trays that were made by innovative fans. Thanks goes out to You for the inspiration for this project!

Meanwhile -as of today- for the latest published version Ticket to Ride Legacy: Legends of the West (2023) i found both a few pay-to-get and also free models, that specifically designed for this version, but i found none of them actually met my expectations, so i crafted my own version for myself.

As new and new ideas came and added, i decided to share it with You, once it considered became finished.

It was a fun journey designing it, without any prior, good CAD knowledge.

Beside the three weeks of trial and error in my free time, i wasted at least an extra kg of filament, but i have to say, it was well worth it.

I'd be honoured to get some thumbs up and a few boost(s) from You, as a form of appreciation.
Boost Me

Hope you'll enjoy using it, as much as i did, while creating it.

Important note before printing:
Map case (Plate 06) will cause a 3mm lift within the main box, so you'll not be able to close it 100%.

There is not enough space to reduce its height further, unless dropping some feature, so i am keeping this as it is.

Information on the printable objects
-----------------------------------------------------
Plates 01-04 are removable containers for the campaign deck
Plates 05-13 for the main game box

Plate 01. Card Insert 60mm (1x26g)
- Dead letter office

Plate 02. Card Insert 35mm (6x20g)
- Story deck
- Train Cards
- Tickets
- Events
- Store Room
- Post Office

Plate 03. Train Insert (5x23g)
- Containers for the trains
- Move it to the player board while playing

Plate 04. Story Card for Card Insert (1x8g)
- Story Deck Divider for '02/Story Deck'.

Plate 05. Coin Insert (1x60g)
- A three story vault insert for the coins.

Plate 06. Map Case (1x264g)
- Put the pieces of the map here
- and also insert the game manual(s)

Plate 07. Card Plate (1 of 2) (1x139g)
Plate 08. Card Plate (2 of 2) (1x155g)
- In-game holder for trains, stocks, shares, events etc.
- These two is recommended to be joined together with some adhesive.

Plate 09-13. Player Board (5x326g)
- 5 for the tickets
- 7 for the trains
- 1 for the shares
- 1 for the character
- 1 for the Stock papers
- Coin container
- Train container (see Plate 03.)
Note1 : I recommend not moving it away from its position, as it takes as little as 0.1mm move to any direction to receive an error message that it is out of printing boundaries or moving it over the bed exclusion area.

Note2 : Plates 09 through 13 are the exact same models, added each for the print calculations.

External references:
-----------------------------
A train model thing 501595 was reused in this project credit goes to the original creator.

Fun facts:
--------------
- Following Bambu Studio calculations, over 0,85 km length of material is required to print this project.
- In total time it takes a little over 5 days.

Revision information:
-------------------------------
v1 - 2025.01.31. - Initial publication

Already playing?

Show your board game setup, if you have already printed any part of this project.

Do you have some suggestion or some further ideas to add? Comment it below!

This 3D Model is free for private use, not for resale.
Obviously can be printed as many times as you want and can also be shared, but please make a reference to the current model's link.
