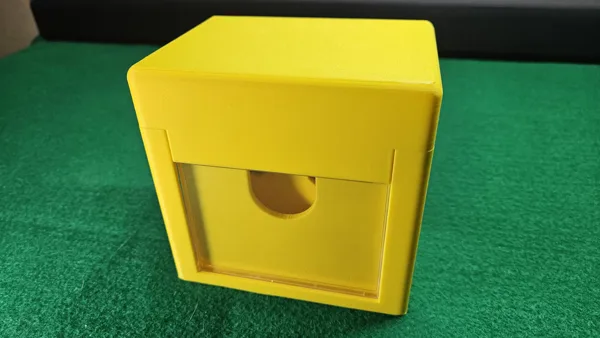

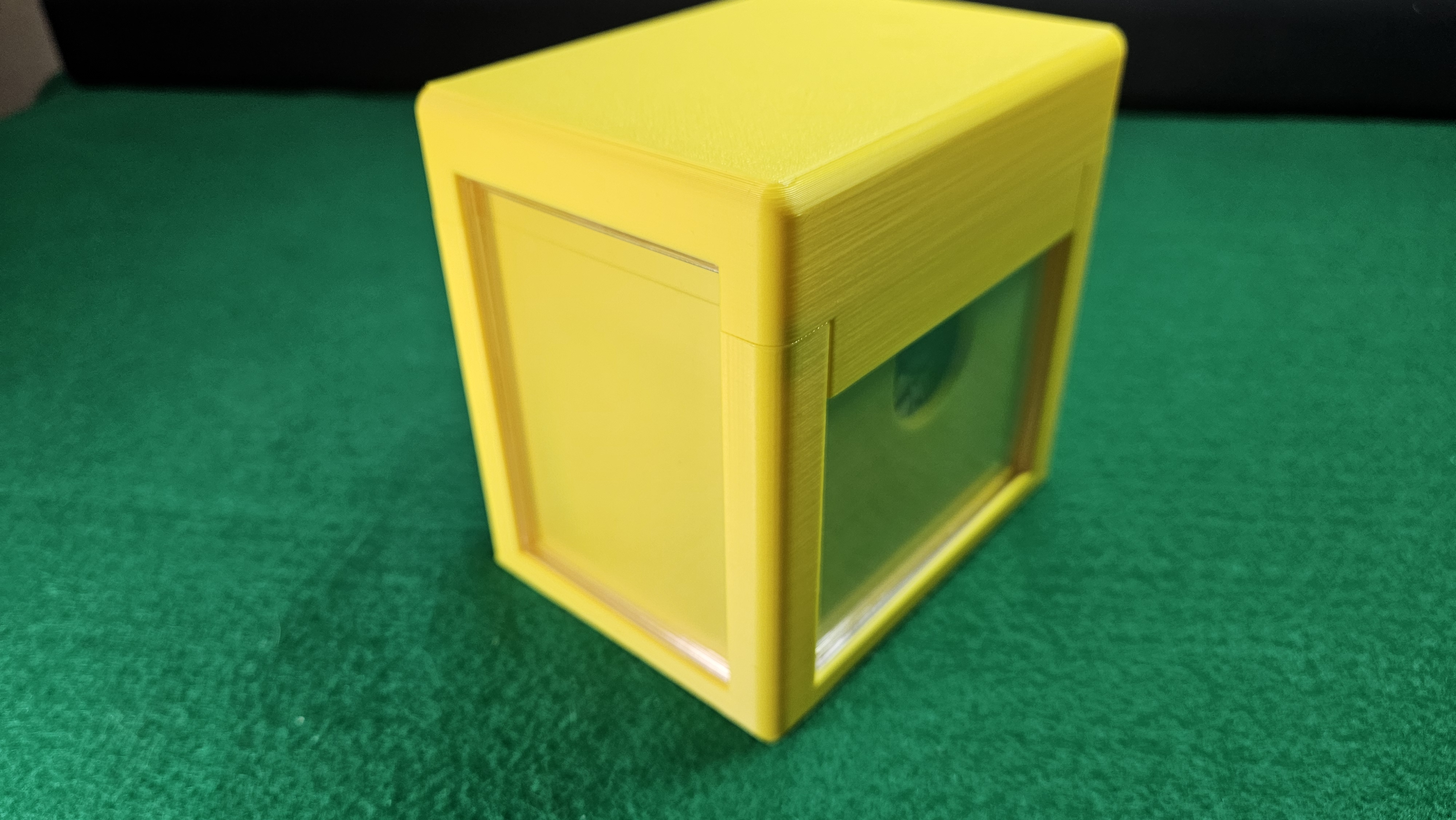

Star Wars Unlimited Deck Box with Tray
Please support vampyre by Liking/Boosting their Print on Printables.

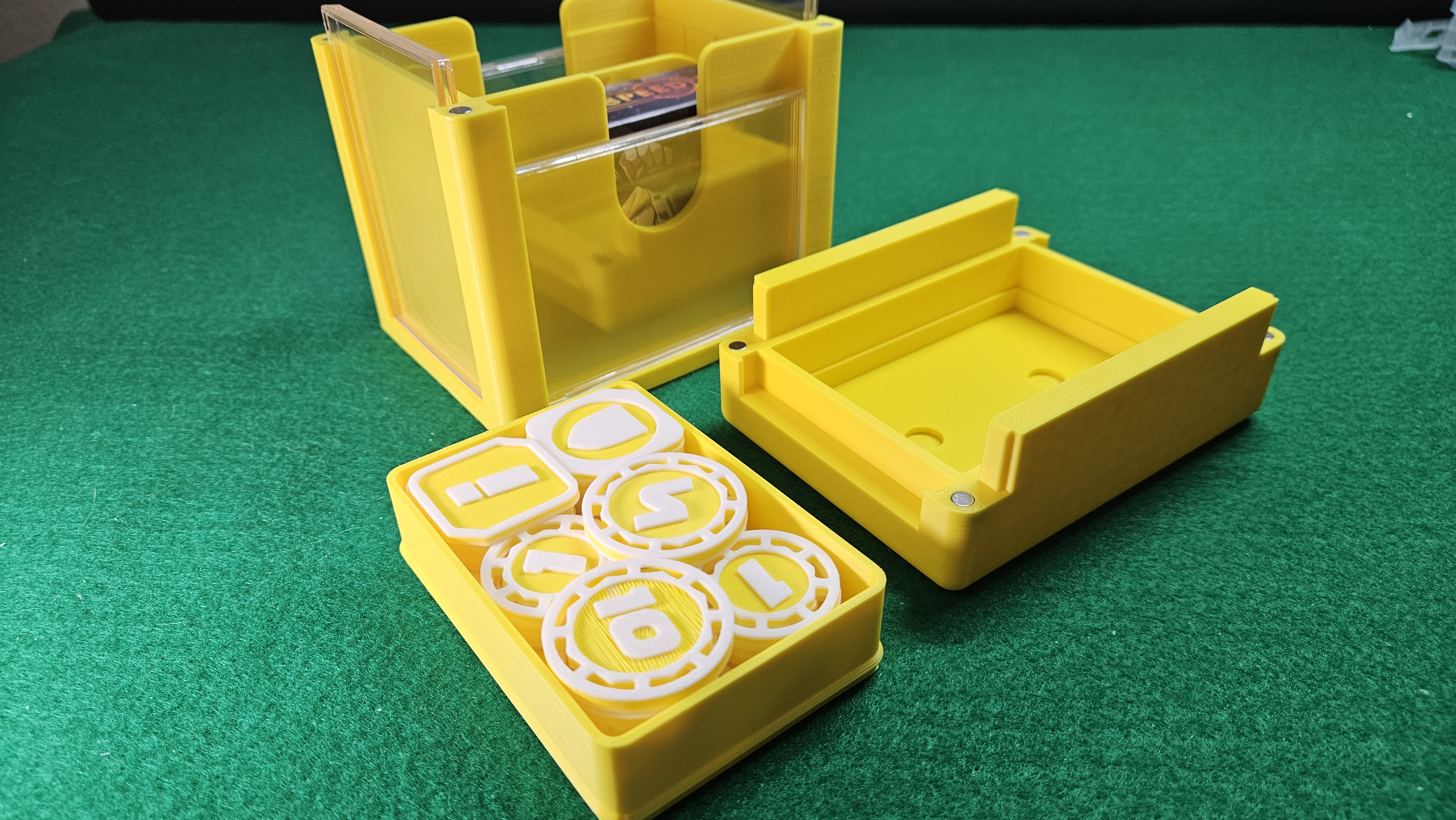

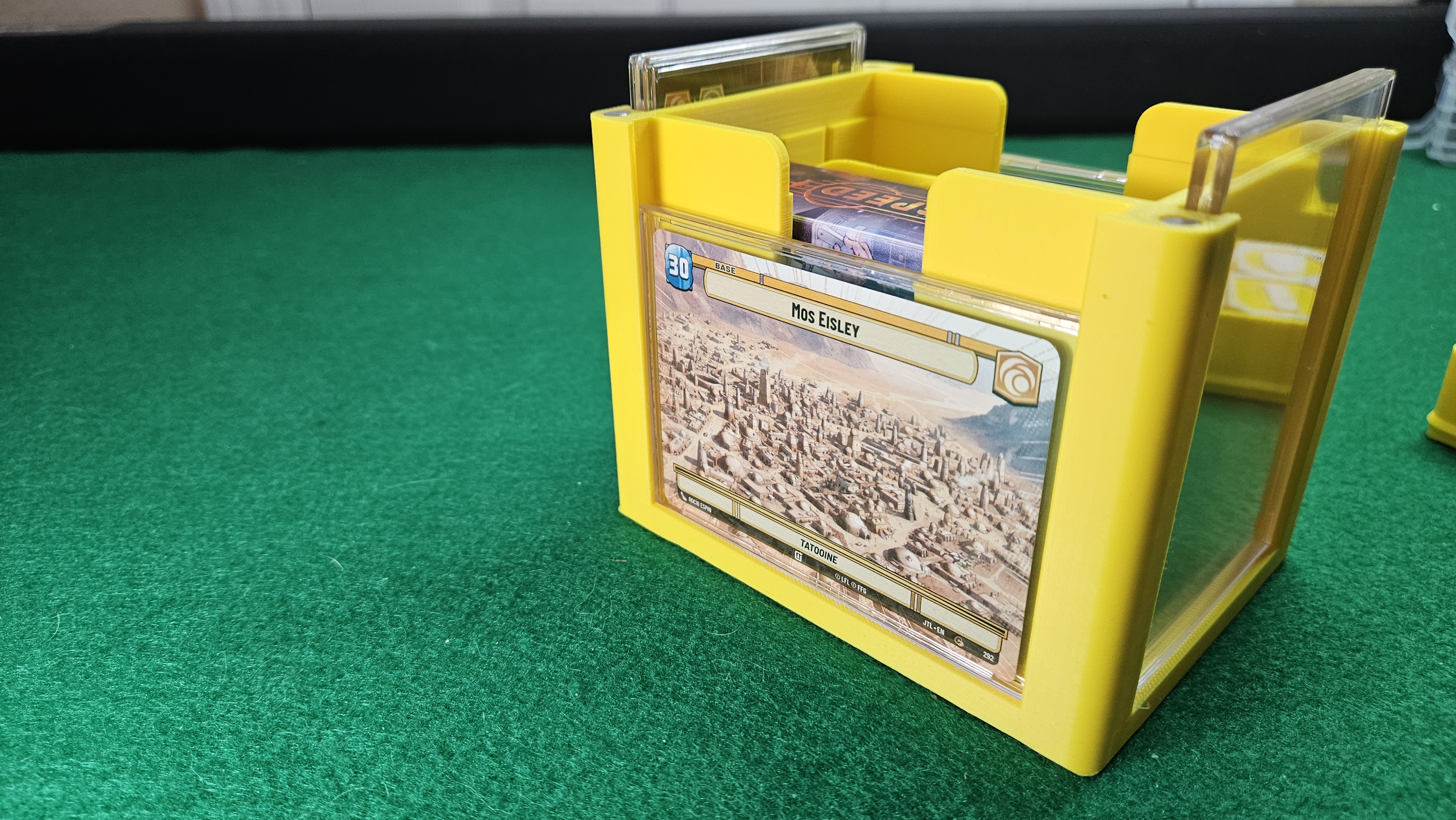

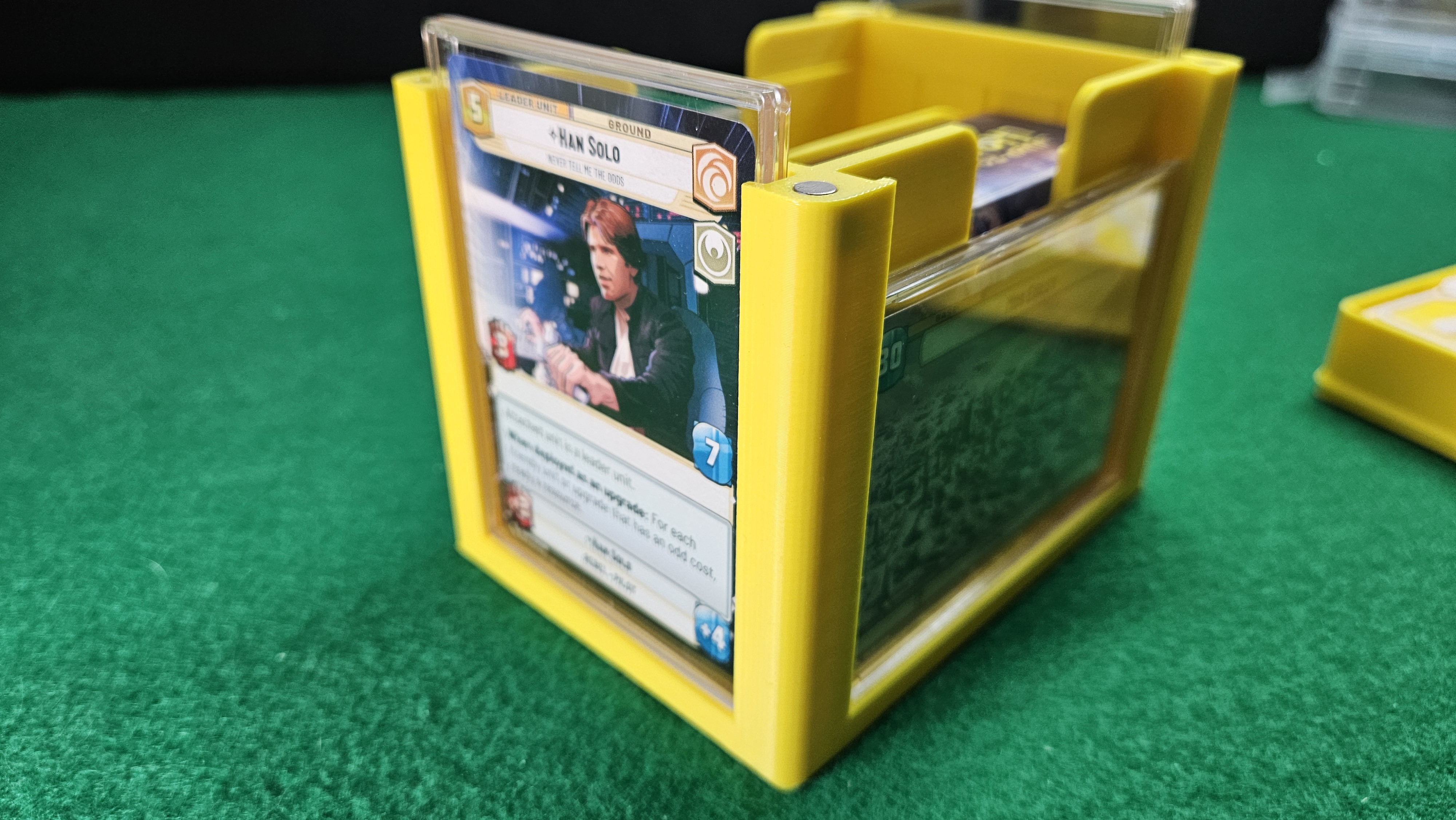

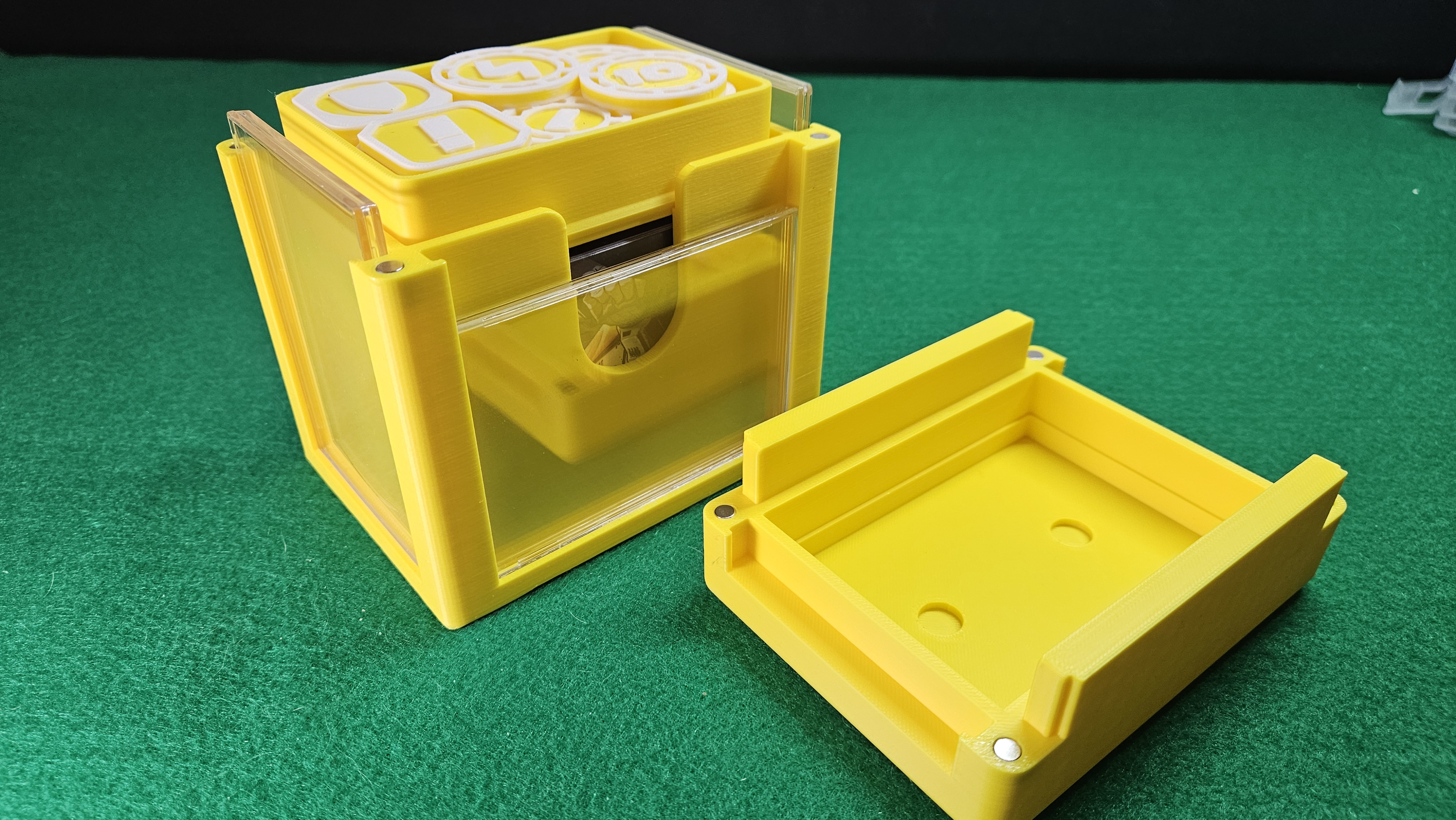

The box is big enough to hold approximately 110 single sleeved cards. There are 4 slots on each face of the deck box that can fit the Gamegenic slide cases or the Ultra Pro mini snaps. There are 4 holes for 5x3mm magnets on the lid and 4 holes on the base that can hold 2 x 5x3mm magnets. Also on the bottom of the token tray and inside of the lid there are 2 holes each for 10x2mm magnets meant to allow the token tray to sit on top of the lid and keep it in place. These hold the lid in place but will fail any kind of shake test. Also included is a divider that can be used horizontally in the box with the tray on top while still being able to put the lid on.
The side panels are 95.6mm x 69.6mm x 5.6mm if you want to create a blank panel or something with a logo.
I've printed this mainly on a Creality K2 Plus and Creality Hi at .2 and .28 layer heights with no supports and 15% infil. I generally stick to 3 walls for durability and 5 top and bottom shell layers. Printed using stock Creality Hyper PLA settings and generic PLA settings.
