Brass Birmingham deluxe insert
Inserts
Free
Plan Your Print
2 makers
Sign in
to track this print from Want to Printed.
✓ No lid lift
✓ Optional multicolor profile
About 338 g of filament
Print Profile (4) 0.2mm layer, 6 walls, 10% infill 10h 43m 338 g PLA
0.2mm layer, 6 walls, 10% infill
7 plates
10h 43m
338 g PLA
P1S, P1P, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L
Standard print profile 0.2mm layer height.
Standard support for small overhangs (might not be necessary).
10% Gyriod infill.
Used basic PLA
Plate Details (7)
0.4 mm nozzle, all plates
Plate 1
4h 41m
145 g
PLA · 145 g
Plate 2
26m
9 g
PLA · 9 g
Plate 3
26m
9 g
PLA · 9 g
Plate 4
26m
9 g
PLA · 9 g
Plate 5
26m
9 g
PLA · 9 g
Plate 6
2h 29m
91 g
PLA · 91 g
Plate 7
1h 48m
66 g
PLA · 66 g
wider player tiles
1 plate
1h 22m
44 g PLA
A1 mini, H2C, X2D, X1E, X1 Carbon, X1, H2D, H2S, P1P, A1, P2S, H2D Pro, P1S, A2L
like a lot of people, my player tiles were too big and didn't fit into the original (and also didn't fit into the version posted by someone in the comments. so i made a wider version that fits tiles up to 26.2mm wide comfortably. enjoy
Plate Details (1)
0.4 mm nozzle, all plates
Plate 1
1h 22m
44 g
PLA · 44 g
Fixed 26mm Tile Tray, 26.2mm Width Opening
1 plate
1h 21m
47 g PLA
P2S, H2D Pro, A1, X2D, H2S, A1 mini, A2L, P1P, H2C, X1 Carbon, X1E, P1S, H2D, X1
This is a modified version of the original tray to support 26mm width tiles.
⚠️ There are several other trays that claim to support 26mm width tiles, but they all suffer from the same flaw as the original tray, which is that two of the tray areas are 26.02mm instead of 26.2mm.
I fixed the widths, ensured consistency, and re-added the .1mm chamfer.
Plate Details (1)
0.4 mm nozzle, all plates
Plate 1
1h 21m
47 g
PLA · 47 g
Fixed 25mm Tile Tray, 25.2mm Width Opening
1 plate
1h 21m
47 g PLA
P2S, X1E, H2C, H2D, A2L, X1 Carbon, A1 mini, X2D, H2D Pro, P1P, H2S, X1, P1S, A1
This is a fixed version of the original tray for 25mm width tiles.
⚠️ The original had two of the tray areas as 25.02mm width instead of 25.2mm width.
I fixed the widths, ensured consistency, and re-added the .1mm chamfer.
Plate Details (1)
0.4 mm nozzle, all plates
Plate 1
1h 21m
47 g
PLA · 47 g
As sliced by the designer. Your printer, filament, and settings may change these numbers.
Designer's Description
Brass Birmingham Deluxe Edition Insert - Streamlined Setup & Organization
Designed for Efficiency, Convenience, and Style
Introducing a custom-designed 3D print insert for the Brass Birmingham Deluxe Edition , created to optimize game setup , reduce table clutter, and enhance the overall gameplay experience. This insert is the perfect solution for those looking to make their Brass Birmingham Deluxe more enjoyable and accessible.
Key Features:

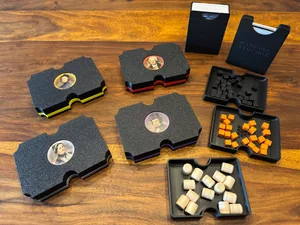

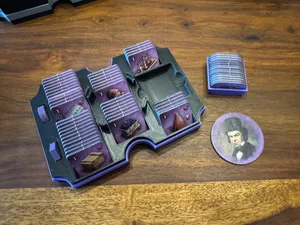

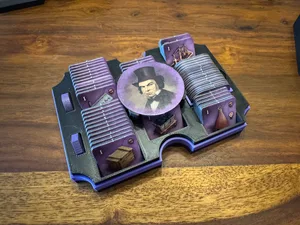

- Efficient Setup & Organization : The insert organizes all the industry tiles into grouped trays for easy access during setup. Simply grab the right tray, and you're ready to go. The modular design ensures that everything stays neatly arranged and easy to find throughout game setup.

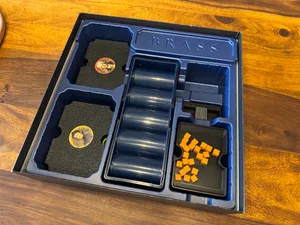

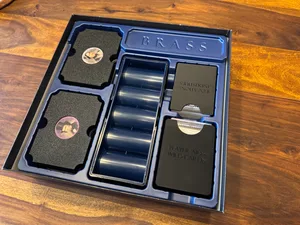

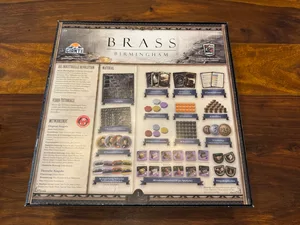

- Compact & Space-Saving : Everything fits perfectly inside the box, with no lid lift, keeping the premium look of your Brass Birmingham Deluxe Edition intact. The design allows the box to be stored vertically , ensuring a neat and space-saving storage solution.
- Removable Connection Tray : The connection tiles are stored in a removable tray inside the player box, reducing table presence during play and allowing for a clean and organized setup.
- Color-Coded Player Boxes : Each player’s box features a separate color-band that can be printed separately and glue-less stuck to the player box to avoid any unnecessary filament changes/poop or to be printed without an AMS.
- Visible Player Token Storage : The player tokens are stored in a way that allows them to be visible from the outside of the box.
Printing Requirements:
- Print 4 times : The player boxes, lids, connection trays, and color bands all need to be printed 4 times—once for each player.
- Printer Setup : This insert was successfully printed on a Bambulab P1S using a 0.4 mm nozzle and Bambulab PLA Basic filament.
- Card Compatibility : Please note that this insert is not designed to fit sleeved cards .
