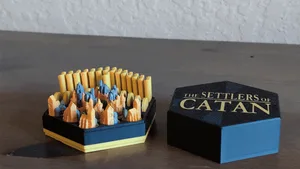

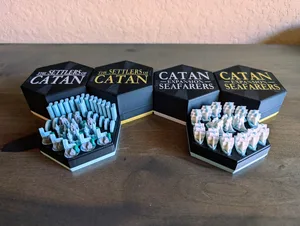

Catan Player Pieces Box - Base Set and Seafarers

for Catan (1995) Lift the Lid

Free

View on MakerWorld 1,214 2,945 Added Oct 23, 24 | Updated Sep 17, 26 Support DirkMcGirk by Liking and Boosting their model.

Remix of View the original model

Remixed by Magnetic Catan Player Pieces Box (Base Set)

Plan Your Print

✓ Covers Catan: Seafarers

✓ Requires supports

✓ Optional multicolor profile

About 168 g of filament

Print Profile (7) Base Set Player Pieces Box 0.2mm layer, 3 walls, 15% infill 3h 55m 102 g PLA

Base Set Player Pieces Box 0.2mm layer, 3 walls, 15% infill

1 plate 3h 55m 102 g PLA

X1 Carbon, P1S, P1P, X1, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Base set piece holder. 0.2mm Layer Height 3 Walls 15% Infill Print without Supports

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · Base Set Player Pieces Box

3h 55m 102 g PLA · 32 g PLA · 70 g

Base Set and Seafarers Boxes0.2mm layer, 3 walls, 15% infill

1 plate 5h 55m 168 g PLA

X1 Carbon, P1S, P1P, X1, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

0.2mm Layer Height 3 Walls 15% infill Print without Supports

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · Base Set + Seafarers Player Pieces Box

5h 55m 168 g PLA · 50 g PLA · 118 g

Seafarers Expansion 0.2mm layer, 3 walls, 15% infill

1 plate 3h 13m 84 g PLA

X1 Carbon, P1S, P1P, X1, X1E, A1, A1 mini, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Seafares Expansion Player Piece Holder 0.2mm Layer Height 3 Walls 15% Infill Print without Supports

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · Seafarers Expansion Player Pieces Box

3h 13m 84 g PLA · 30 g PLA · 54 g

Optimized - 0.2mm layer, 3 walls, 15% infill

3 plates 9h 20m 328 g PLA

P1S, X1 Carbon, H2D, A1, X1E, X1, P1P, H2D Pro, H2S, P2S, H2C, X2D, A2L

This profile is optimized to reduce the number of filament changes to 16 and reduce the printing time to 2:40h. Changes include colored areas (reduced), top surface pattern changed from hilbert curve to monotonic line (default) and bottom surface pattern from octagonal spriral to monotic line to improve surface and speed. This profile contains 3 plates: • Plate Base Set Box single • Plate Seafarers Box single • Plate Base Set + Seafarers Box on one plate See the attached pictures for details.

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1 · Base Set Box single

2h 46m 93 g PLA · 15 g PLA · 78 g

Plate 2 · Seafarers Box single

2h 12m 75 g PLA · 16 g PLA · 59 g

Plate 3 · Base Set + Seafarers Box

4h 22m 160 g PLA · 26 g PLA · 134 g

Basis Set & Seefahrer Deutsch Multicolor

2 plates 23h 23m 653 g PLA

H2C, H2D Pro, H2D, H2S, A2L

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1 · Seafarers

10h 24m 288 g PLA · 22 g PLA · 203 g PLA · 19 g PLA · 22 g PLA · 22 g

Plate 2 · Base Set

12h 59m 365 g PLA · 23 g PLA · 273 g PLA · 21 g PLA · 24 g PLA · 24 g

Basis Set Deutsch

1 plate 12h 59m 365 g PLA

H2C, H2D, H2S, H2D Pro, A2L

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · Base Set

12h 59m 365 g PLA · 23 g PLA · 273 g PLA · 21 g PLA · 24 g PLA · 24 g

Seefahrer Deutsch

1 plate 10h 24m 288 g PLA

H2C, H2D, H2S, H2D Pro, A2L

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · Seafarers

10h 24m 288 g PLA · 22 g PLA · 203 g PLA · 19 g PLA · 22 g PLA · 22 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

This remix of Catan Player Piece Holder and Seafarers Player Piece Holder has the following improvements:

Added “The Settlers Of Catan” and “Catan Expansion Seafarers” to box lid
Modified lid geometry to hold pieces in place when box is closed
Added alignment tabs to ensure lid can only be placed in correct orientation
Modified base geometry to improve print finish and remove need for supports
Multi-Color Design

Seafarers box works best when the ships are pointed with the bow (front) pointing outward. If the ships are pointed inward, the stern (rear) of the ships will interfere with the box lid.
