Ticket to Ride Train Storage Box & Card Holder V2

for Ticket to Ride (2004) Layer by Layer

Inserts Free

View on MakerWorld 66 252 Added May 12, 25 | Updated Sep 9, 26 Support EduTheMaker by Liking and Boosting their model.

Plan Your Print

✓ Keep all or part of original insert Uses some or all of the publisher's original insert instead of replacing it

About 104 g of filament From the designer's print profile

Print Profile (3) Small Handle, support not needed, 0.2mm layer 2h 56m 84 g PLA

Small Handle, support not needed, 0.2mm layer

1 plate 2h 56m 84 g PLA

A1, X1E, A1 mini, P1S, X1 Carbon, H2D, P1P, X1, H2D Pro, H2S, P2S, H2C, X2D, A2L

Normal box, but with small Handle size. This handle only helps to split the halves of the lid. I does not need support. -PLA -0.20mm

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

2h 56m 84 g PLA · 84 g

0.2mm layer, 2 walls, 15% infill

1 plate 4h 28m 104 g PLA, PLA-S

A1, P1S, H2D, X1 Carbon, X1, X1E, P1P, H2D Pro, H2S, P2S, H2C, X2D, A2L

Normal Handle size. The handle helps in lifting the box from the insert, and to split the halves. It prints with supports -PLA -0.20mm -PLA support (recommended)

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

4h 28m 104 g PLA · 98 g PLA-S · 6 g

TtR Europe - Basket Only. 0.2mm layer, 2 walls, 7% infill

2 plates 3h 35m 76 g PLA

A1, P1S, H2D Pro, X1, X1 Carbon, H2C, H2S, H2D, A1 mini, P1P, P2S, X1E, X2D, A2L

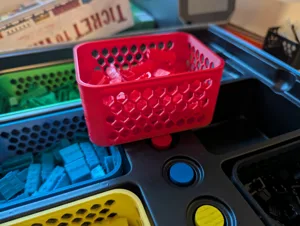

I used the designers profile to create a basket only version for Ticket to Ride Europe. The inserts inside the TtR Europe box are of a different size and shape to the original. The board creates a lid to stop the trains failing out, as the baskets sit flush with the top of the plastic inserts. I did not see the need for a lid as it makes it quicker and easier to print. You will need to print 3 large and 2 Small in which ever colours you choose.

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1 · Ticket to Ride Europe 3 Large Slots

2h 1m 38 g PLA · 38 g

Plate 2 · Ticket to Ride Europe 2 Small Slots

1h 34m 38 g PLA · 38 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

After trying a few models for Ticket to Ride* train storage, I decided to design my own. I wanted something that keeps the game organized and elevates the playing experience.

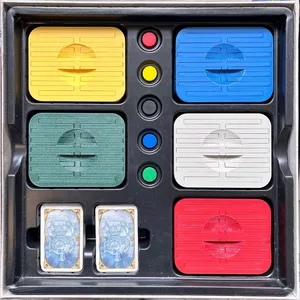

These boxes fit snugly into the original North America Map Version insert (at least in my copy 🙂). The box dimensions are 72×95 mm in the bottom (77×100×48.5 mm with the lid). I do believe it fits in the European version as well but I would need someone to confirm it.

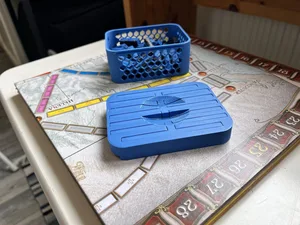

The lid slides to securely close the box.

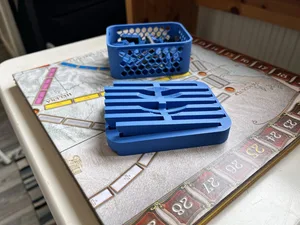

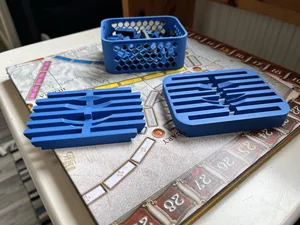

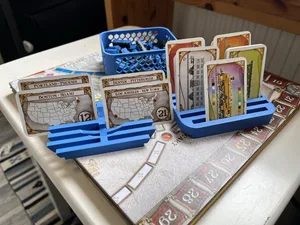

The sliding lid splits into two parts, making it easy to organize and access cards during gameplay.

I’ve included two print profiles—the only difference is the lid handle:

Normal handle: The handle works for both, lift the box from the insert and to split the halves. I recommend printing this version with supports.
Small handle: Not ideal for lifting the box, but useful for separating the lid halves. This version usually prints fine without supports.

For perfectionists: print at 0.08 mm and sand the handle interior to remove layer lines.

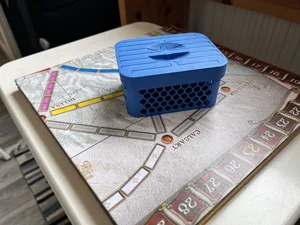

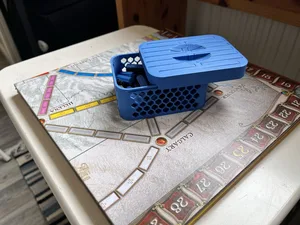

The boxes in the pictures use the normal handle and were printed at 0.20 mm layer height. I left them unsanded so you can see exactly how they look fresh off the printer (Bambu Lab A1 in this case).

Boost Me I hope these accessories enhance your Ticket to Ride sessions! If they do, consider boosting me—I’ve gone through more filament perfecting this design than I’d like to admit 😅

(*) Ticket to Ride is a trademark of Days of Wonder. Learn more about the game here:

🔗 https://www.daysofwonder.com/game/ticket-to-ride/

ttr tickettoride
