Grimcoven insert - all-in

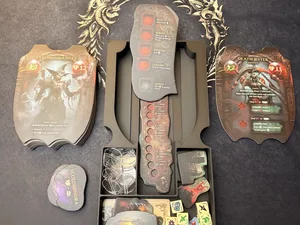

This is an insert for Awaken Realms' fantastic boss battler, Grimcoven. I have condensed the All-In pledge with expansions, acrylics, and terrain into the core box + Forgotten Entities box, which holds the bosses. From top to bottom I tried to make it as easy to table as possible, with documents, map tiles, and setup components located in the upper layers, table trays quickly moved from box to play area (tokens and cards), with the remaining cards (bosses, hunters) and terrain located in the bottom layer.

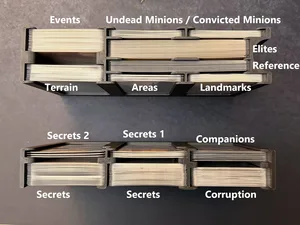

✅ Sleeved cards

✅ Additional dividers if needed

✅ Vertical storage (with care)

Two files are recommended tree supports - Boss box 1 and Boss dragon mount, these are already setup in the included 3mf files.

You'll notice some of the trays have insets/bumps along two sides – I get annoyed with nearly-square pieces and not remembering which orientation they're supposed to go in the box, so these insets correspond with the card troughs on either end of the box. When replacing a tray with the bumps, point the bumps to the cards and it'll fit the first time, every time.

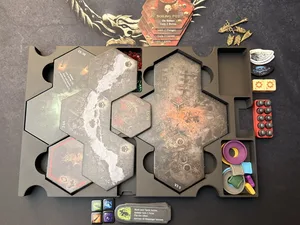

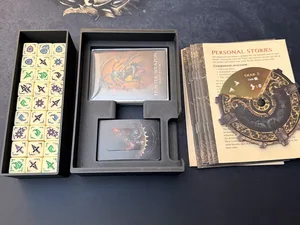

Split files are included for the huge trays holding [map tiles + hunter components], [hunter tiles + extra storage] for things like standees and the few dice that don't fit in the dedicated dice box. Those split files do have guides to assist with gluing them together.

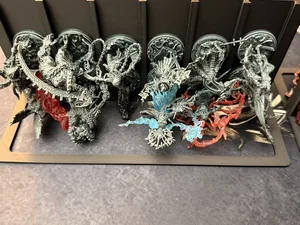

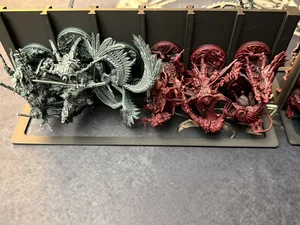

I recommend keeping the same boss orientation as shown in the pictures as the rails are specifically sized for those bases, and the geometries match up to allow for minimal bumpage between minis.

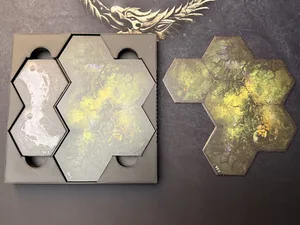

Edit 12-21-25: if you're finding the tolerances a bit tight, please ensure you're printing with 2 walls and not 3; files were updated to increase the size of the 4-hex map tile wells and hunter tiles

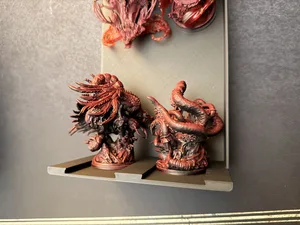

Edit 01-29-26: added rails and boss trays with increased width to try and accommodate painted minis - given the heterogeneous nature of paint and layering, these may or may not work for your models!

Enjoy!

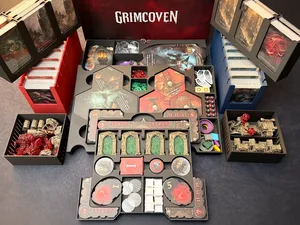

Core box organization:

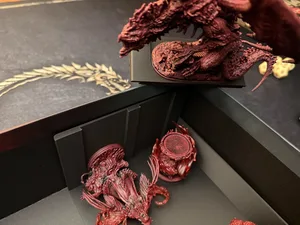

Boss box organization:

Layers:
