Nucleum Insert

for Nucleum (2023) Layer by Layer

Hextra

Inserts Free

View on MakerWorld 89 348 Added Jan 27, 24 | Updated Aug 4, 26 Support Hextra by Liking and Boosting their model.

Also Found On Printables 78

Plan Your Print

✓ Stores vertically Stands on its side; contents stay put

About 508 g of filament From the designer's print profile

Print Profile (2) 0.2mm layer, 2 walls, 15% infill 11h 6m 508 g PLA

0.2mm layer, 2 walls, 15% infill

3 plates 11h 6m 508 g PLA

P1P, P1S, X1, X1 Carbon, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

.2mm layer 2 walls 15% infill single color (it's only multi color due to running out of orange)

Plate Details (3)

0.4 mm nozzle, all plates

Plate 1 · Nucleum1

3h 33m 160 g PLA · 160 g

Plate 2 · NucleumPlayerx4

1h 33m 62 g PLA · 62 g

Plate 3 · Nucleum2

6h 286 g PLA · 286 g

(Optional) 2x Spacers - 0.2mm layer, 2 walls, 15% infill

1 plate 2h 72 g PLA

A1, X1, X1 Carbon, H2D, P1P, P1S, X1E, A1 mini, H2D Pro, H2S, P2S, H2C, X2D, A2L

There were 2 spacer STLs added to the project at a later date, but they were not included in the main print profile, so I'm uploading them as a separate profile. Setting are the same as in the main profile for the insert: 0.2mm layer, 2 walls, 15% infill.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1 · NucleumSpacers

2h 72 g PLA · 72 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

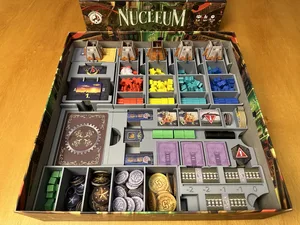

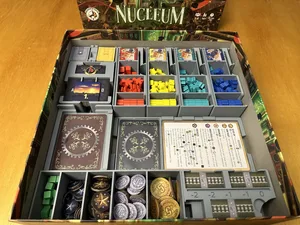

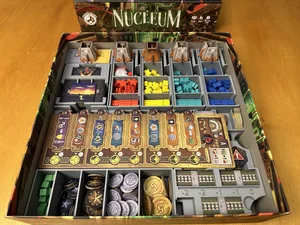

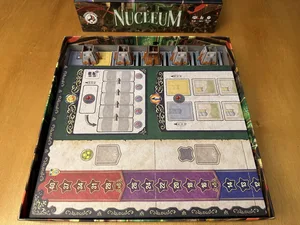

This is my take on an insert for Nucleum. The game has a ton of components and little pieces to keep track of, and my goal is always to get the game tabled and put away as easily and quickly as possible. The prints shown were done with a 0.4mm nozzle, 0.2 layer height, 15% infill and no supports required. Bambu slicer estimates total filament at 657g / 216.55m. Vertical storage is supported as well.

The game has a few promos available (though currently out of stock as of this publishing date), and while I do not have them I was kindly assisted by @Sgallmeier_1110492 who provided measurements and even tested some prints for me, so a huge thank you to him!

Edit 12/21: added a spacer that can be printed to better secure the player components during vertical storage. These will still hold power plants without issue. Print x2 for full coverage.

Edit 12/28: slightly increased the size of the milestone area to prevent stuck tiles

A couple of quick notes:

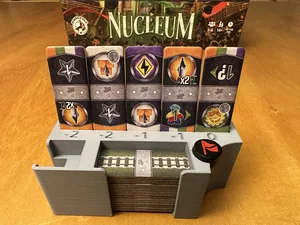

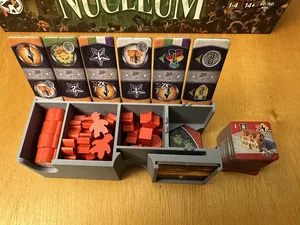

The contracts and action tiles tray are meant to be placed directly on the game board for ease of setup. Simply remove/shuffle any pieces not needed based on player count.

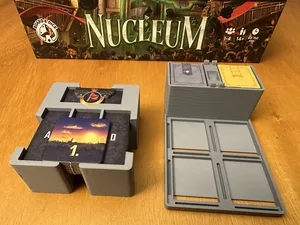

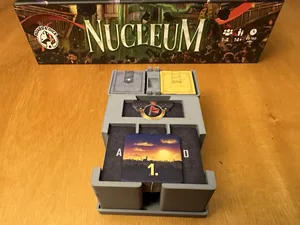

The setup component tray and reference/setup card tray nest together. With my tolerances they fit snugly enough that I can lift both out of the box by only grabbing the top (setup) tray.

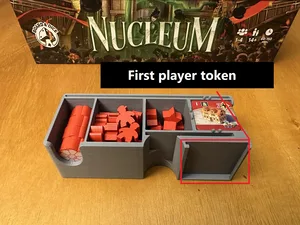

See the edited photos for first player token slot, as well as promo component placement
There are small nubs on the contract and player trays to help keep the power plants in place. These are not necessary for horizontal storage, but assist with keeping the tiles underneath in place during vertical storage.
The card slots accommodate sleeves cards, Sleeve Kings pictured.

You will need:

4x player trays, 1x resource tray full or 2x resource tray half, and 1 of everything else

Happy printing!
